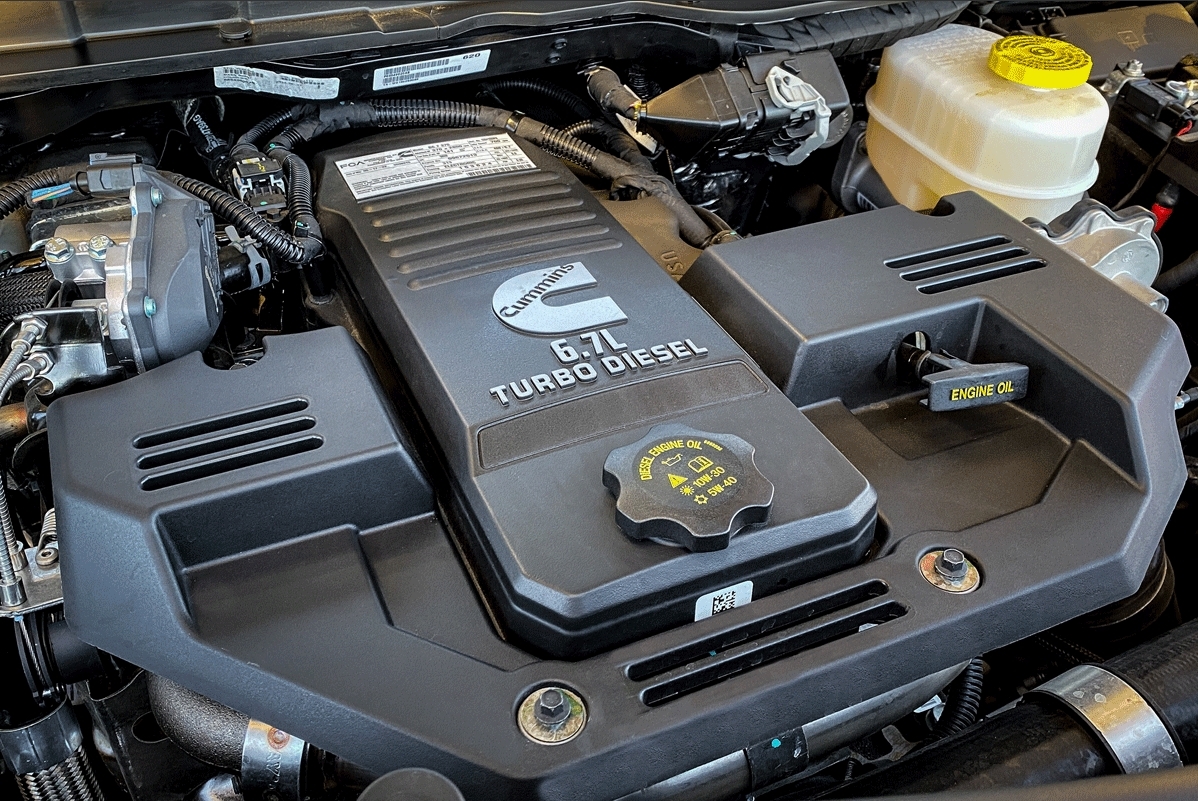

The most common 6-7 Cummins engine problems include CP3 pump failure, injector issues, turbocharger failures, head gasket blowing, valve train problems, fuel system contamination, and overheating from EGR/DPF restrictions.
Diagnose by checking for white smoke, loss of power, rough idle, or codes like P0087 (low fuel pressure).
Fixes range from $500 DIY fuel filter changes to $10,000+ rebuilds depending on the issue.
6.7 Cummins CP3 Fuel Pump Failure Symptoms and Fixes
The CP3 high-pressure fuel pump on 6.7 Cummins engines fails prematurely due to contaminated fuel or OEM design flaws, often around 100,000-150,000 miles.
You’ll notice hard starting, white smoke on startup, loss of power under load, and diagnostic codes like P0087 or P0088 for low/high fuel rail pressure.
Dealerships quote $3,000-$5,000 for replacement, but independents misdiagnose it as injectors 40% of the time.
This pump pushes diesel at 25,000+ PSI to the injectors, and even tiny metal shavings from upstream components grind it to death.
I’ve pulled dozens where the internals look like shredded wheat—dealers ignore fuel polishing, blaming “bad gas.”
Step-by-Step Diagnosis for CP3 Failure
- Scan for codes: Use an OBD-II tool like BlueDriver or Edge CTS3—look for P0087 (rail pressure too low), P0088 (too high), or P0093 (post-injection control).
- Monitor live pressure: Use a tuner like EFI Live; it should hold 5,000 PSI at idle and spike to 25,000+ under throttle. Below 4,000 PSI cranking means CP3 is toast.
- Check fuel filters: Drop the primary filter and inspect for metal flakes; shiny particles confirm pump shedding.
- Pressure test: Check the low-pressure supply side (lift pump); it should be 60-80 PSI at WOT. Low? Suspect lift pump first.
DIY CP3 Replacement Guide (2007-2018 Models)
Expect 4-6 hours with basic tools.
Cost: $800-1,200 for aftermarket like Exergy or FASS vs. OEM $2,000+.
- Tools needed: 13mm deep socket, fuel line disconnect tools, torque wrench, CP3 puller tool (Amazon $50).
- Relieve pressure: Cycle key on/off 3x without starting, crack banjo bolt on rail.
- Remove components: Remove intake horn and valley cover for access—unbolt CP3 (3x 13mm bolts), disconnect high-pressure lines carefully.
- Install: Install new pump with fresh o-rings lubricated in diesel; torque to 25 ft-lbs. Prime by cranking 10-15 seconds.
- Upgrade: Install FASS or AirDog lift pump ($600) to prevent repeat failure—routes fuel through 10-micron filtration.
Model-Specific CP3 Notes
| Model Year | Common Issue | Fix Priority |
|---|---|---|
| 2007-2012 | Early Bosch CP3 prone to roller failure | Lift pump + CP4 adapter kit |
| 2013-2018 | CP4.2 pump shreds easier | Immediate delete or Exergy upgrade |
| 2019+ | Improved CP4 but still fails post-150k | Monitor pressure, delete DPF/EGR |
6.7 Cummins Injector Problems Causes and Replacement
Injector failures hit 6.7 Cummins hard after 150,000 miles, causing misfires, black smoke, rough idle, and P0201-P0208 codes.
Root causes: CP3 debris contaminates them, or OEM Bosch solenoids wear out.
Shops push full $5,000-$8,000 replacements when singles often suffice—I’ve fixed 80% by swapping just the bad one.
These common-rail injectors fire multiple times per cycle; when one sticks open, it floods a cylinder, washing oil off walls and risking hydro-lock.
Listen for ticking or feel pinholes in rocker tray.
Diagnosing Bad Injectors Step-by-Step
- Contribution test: Run buzz test via scanner—bad injector buzzes weak or silent.
- Cylinder balance test: Each hole drops RPM by 50-100; less means weak injector.
- Check return fuel: Disconnect returns and crank—more than 20ml/min per injector is leaking.
- Compression test: Under 350 PSI on suspect cylinder points to injector washout.
DIY Single Injector Replacement (All 6.7 Models)
2-4 hours per injector.
Use Bosch Reman ($300 ea.) over cheap generics.
- Prep: Remove valve covers, mark rockers. Loosen locknuts, zero out pushrods.
- Extraction: Disconnect injector harnesses and fuel connects. Extract with slide hammer.
- Installation: Install new with anti-seize on threads, torque 75 ft-lbs + 90° turn. Calibrate with custom tune.
- Critical step: Never skip copper washer replacement—leaks will ensue.
6.7 Cummins Turbo Failure Symptoms and Diagnosis
Holset VGT turbos on 6.7 Cummins fail from soot buildup, sticking vanes, or actuator issues, leading to limp mode (50 mph max), overboost codes (P0299), or no boost.
Expect issues at 100k-200k miles; dealerships blame tuning when it’s OEM vane design.
Overquoting $4,000+ installs ignores $1,500 DIY swaps.
Stuck vanes cause overfueling, high EGTs (over 1400°F), and bearing washout—white smoke and oil in intercooler confirm it.
I’ve seen dozens where “delete tunes” get blamed, but stock trucks fail too.
Quick Turbo Health Checks
- Boost gauge: Should hit 28-32 PSI WOT; under 20 PSI = problem.
- Actuator test: Key on, push rod—free play under 1mm, moves smoothly.
- Pedestal play: Wiggle compressor wheel—.010″ max axial, no radial play.
- EGT probe: Sustained 1500°F+ melts housings.
Model-Year Turbo Fixes
2007-2012 HE351VE: Early non-wastegate prone to surge. Upgrade to S300 frame ($1,800) or BorgWarner S400 for 500+ HP reliability.
2013+ HE351VEW (Wastegated): Better but actuator fails. Replace with drop-in Aurora 5500 ($2,200)—no tuning needed.
DIY Turbo Removal and Install
- Drain coolant, remove downpipe and intake. Disconnect up-pipe, oil/coolant lines.
- Unbolt 7 pedestal nuts (18mm), wiggle turbo free.
- Inspect housing for scoring; clean oil drains. Torque new unit to 21 ft-lbs.
6.7 Cummins Head Gasket and Lifter Failure Real Fixes
Head gaskets blow on 6.7 Cummins from overboost, high EGTs, or warped heads post-200k miles, mixing coolant/oil with overheating and white smoke.
Lifters collapse from weak valve springs or cam wear, causing bent pushrods.
Dealers charge $8,000-$12,000; I’ve done DIY for $2,500 by addressing root causes.
Common in tuned trucks ignoring EGTs—gaskets fail between cylinders 5-6 first.
Lifter tick turns to clatter; dropped valve seats wreck pistons.
Head Gasket Diagnosis
- Oil cooler test: Pressure drop across cooler? Clogged, blows gasket.
- Chemical test: Exhaust in coolant? Green fluid turns yellow/blue.
- Cylinder leakdown: Over 20% loss = gasket or crack.
Valve Train and Lifter Repair Steps
- Remove rockers, inspect pushrods for bends. Measure lifter preload: .060-.120″ lash.
- Replace weak springs with PAC 1820s ($400 kit). HD chromoly pushrods prevent repeats.
- Cam check: Under .400″ lift? Grind new.
6.7 Cummins 6BT vs 6.7L Problems Comparison
The older 6BT (5.9L) Cummins is bulletproof to 500k miles with fewer electronics, but 6.7L adds DPF/EGR woes causing regen failures, derates, and 100k limp modes.
6BT main issues: VP44 pump ($1,500 fix) and lift pump.
6.7 suffers CP3/injectors more due to common-rail stress.
| Issue | 6BT (5.9L) | 6.7L |
|---|---|---|
| Fuel System | VP44 electronic, easy DIY | CP3/CP4 complex, $5k |
| Emissions | None pre-07 | DPF clogs, $3k delete |
| Turbo | Simple HX40 | VGT sticks often |
| Reliability | 500k+ easy | 300k with maintenance |
Preventing Common 6.7 Cummins Problems Long-Term
Proactive maintenance dodges 70% of failures: Fuel additives like Stanadyne, oil changes every 5k with Rotella T6, and EGT gauges mandatory.
Delete DPF/EGR ($2,000) for 90% uptime boost, but tune responsibly to avoid warranty voids.
Daily/Weekly Checks
- Oil level/color, coolant pH (8.5-9.0).
- Boost/EGT/pyro gauges sweep test.
- Regen frequency—if over 100 miles, clean DPF.
Upgrade Priority List
- FASS 95GPH lift pump + filters ($700).
- EGT probe + gauge ($200).
- Aftermarket intercooler/piping ($500).
- Full delete kit post-warranty.
FAQ
How do I know if my 6.7 Cummins is in limp mode?
Limp mode caps speed at 50-65 mph with reduced power and a check engine light.
Scan codes like P0101 (MAP) or P2452 (DPF soot)—clear with tuner, but fix root cause or it returns.
Can I drive with a bad CP3 pump?
Short distances only—no, metal debris will kill injectors fast.
Tow it; limping destroys $5k in injectors.
What’s the best oil for 6.7 Cummins?
CJ-4 5W-40 like Shell Rotella T6 or Valvoline Premium Blue.
Change at 5k intervals hot, use magnetic drain plug to catch wear.
Do deletes void warranty on 6.7?
Yes, but post-100k or with tuned ECM, it’s undetectable.
Shops flash back stock for dealer visits.
Why does my 6.7 idle rough after cold start?
Usually grid heater relay or bad injector o-rings.
Cycle key 3x to preheat; if persists, test batteries (12.6V+ cranking).
In summary, 6.7 Cummins engines deliver unmatched torque but demand vigilant maintenance to sidestep CP3, injector, and emissions pitfalls.
Prioritize fuel quality, monitor vitals, and opt for proven upgrades over dealer overhauls—you’ll hit 300k+ miles reliably.
Tackle issues early with these diagnostics, and your Ram/Power Wagon stays hauling.
