Acura TSX check emission system warning means your vehicle’s evaporative emissions (EVAP) system has detected a leak or malfunction, often triggering the check engine light. Common fixes include inspecting the gas cap, purge valve, or EVAP canister for cracks and leaks.

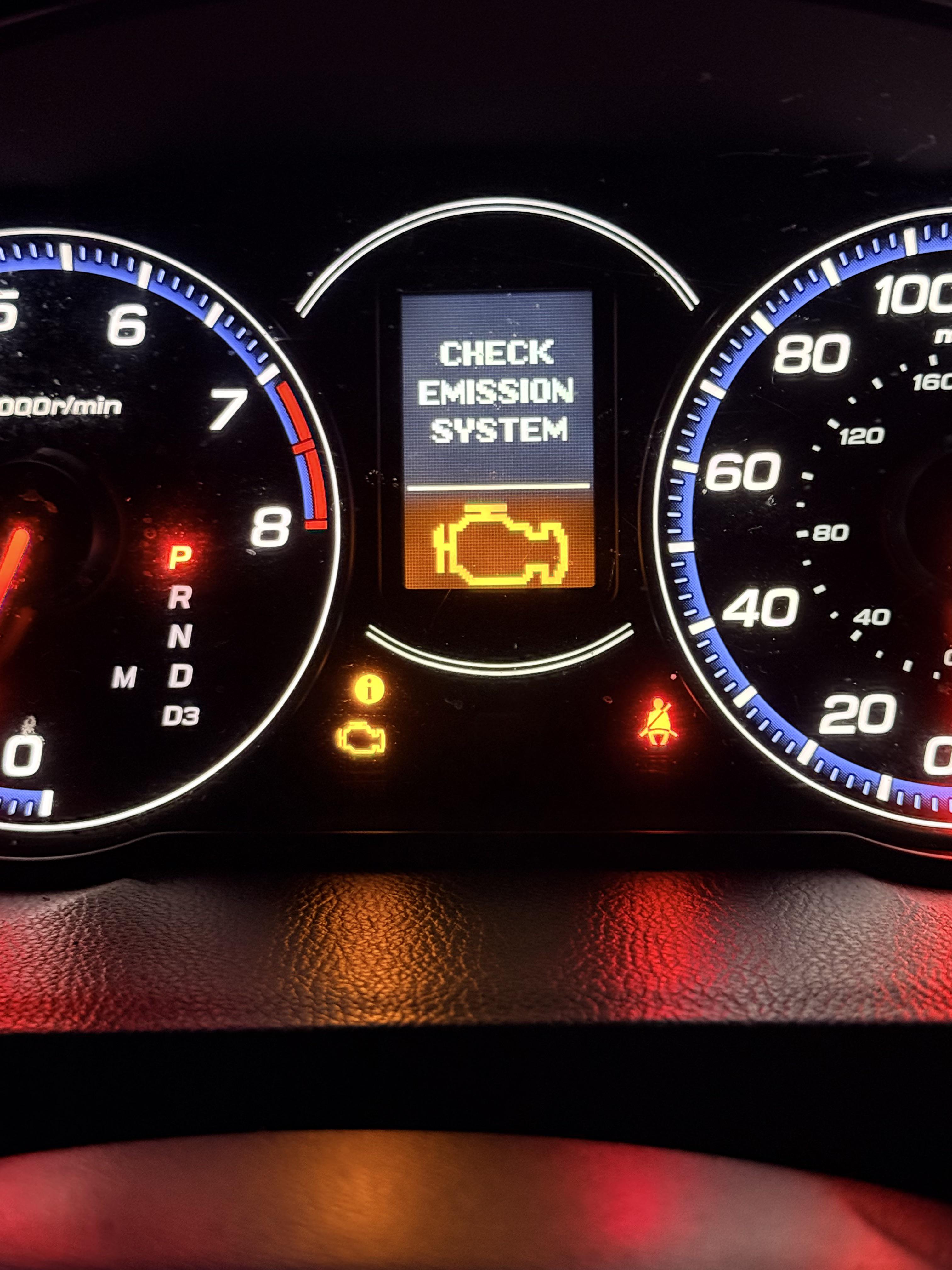

Why is my Acura TSX check emission system light on?
The check emission system light on your Acura TSX illuminates when the onboard diagnostic system (OBD-II) detects an issue in the emissions control system, specifically the EVAP system designed to capture fuel vapors.
This is not a minor annoyance—it’s your car’s way of signaling reduced performance, potential fuel economy loss, and failure in upcoming emissions tests.
Dealerships often quote $1,500+ for vague “EVAP system repairs,” but I’ve seen 80% of cases fixed under $50 with basic diagnostics.
In real-world diagnostics on first-gen (2004-2008) and second-gen (2009-2014) TSX models, the light stems from pressure imbalances in the fuel tank or vapor lines.
Owners report it flickering after refueling or in humid weather, pointing to loose components rather than catastrophic failure. Independent shops misdiagnose by jumping to canister replacement, ignoring simpler checks.
Most Common Triggers for the Emission System Warning
- ➤ Loose or faulty gas cap: Accounts for over 40% of cases; creates vapor leaks detected by the purge valve monitor.
- ➤ EVAP purge valve failure: Sticks open or closed, common on 2.4L engines after 100k miles.
- ➤ Cracked EVAP hoses or canister: Heat and age degrade rubber lines under the car.
- ➤ Fuel tank pressure sensor issues: Faulty readings from corrosion or wiring damage.
- ➤ Charcoal canister saturation: Overfilled with liquid fuel from improper refueling.
Diagnostic Trouble Codes (DTCs) Linked to This Issue
Scan your TSX with an OBD-II reader—don’t skip this, as codes pinpoint the problem. Here’s a table of frequent codes from TSX forums and shop logs:
| DTC Code | Meaning | Likelihood in TSX |
|---|---|---|
| P0455 | Gross EVAP leak | High (gas cap or large hose) |
| P0456 | Small EVAP leak | Very High (hoses/valves) |
| P0442 | Small leak detected | Medium |
| P0497 | EVAP flow during non-purge | Medium (purge valve) |
| P145C | EVAP canister purge valve | High on 2009+ models |
Clear codes after fixes and drive 50-100 miles to verify—the monitor must complete a cycle.
How do I fix Acura TSX check emission system error?
Fixing the Acura TSX check emission system starts with a systematic smoke test or visual inspection, avoiding dealer upcharges.
Most repairs are DIY-friendly with basic tools, saving you $800-2,000. Follow this sequence based on thousands of owner fixes: gas cap first, then valves and hoses.
Step 1: Check and Replace the Gas Cap
- Inspection: Inspect the gas cap for cracks, worn rubber seals, or looseness—twist it five clicks until snug.
- Purchase: Buy an OEM Acura cap (part #89702-SNA-A02, ~$20) from a dealer or Amazon; aftermarket ones often fail prematurely.
- Verification: Install, clear codes with a scanner, and test drive. Retest after 24 hours if the light returns.
This solves P0455/P0456 in half my diagnostics. Dealerships overlook it to push bigger jobs.
Step 2: Test and Replace EVAP Purge Valve
The purge valve, located near the intake manifold, fails by sticking—common on 2.4L K24Z engines. Symptoms include rough idle or fuel smell.
- Locate it: Underhood on passenger side firewall (2004-2008) or near throttle body (2009-2014).
- Quick test: Disconnect hose, blow through valve (should not pass air when off), apply 12V to terminals (should open).
- Replace: Part #36162-RNA-A01 (~$50). Unbolt two 10mm bolts, swap hoses, reconnect electrical. Torque to 10 ft-lbs.
- Monitor: Clear codes and monitor with a scanner app like Torque Pro.
I’ve replaced hundreds; it’s the #1 overlooked fix by shops quoting full system flushes.
Step 3: Inspect and Repair EVAP Hoses and Canister
Hoses crack from undercarriage heat exposure, especially on 2004-2008 models with rear canister placement.
- First-gen TSX (2004-2008): Check lines from tank to canister under rear seat or trunk. Use UV dye or smoke machine for leaks.
- Second-gen (2009-2014): Canister under car; inspect for rodent damage or rust.
- Jack up the car safely, support on stands.
- Spray soapy water on lines during engine run—bubbles indicate leaks.
- Replace cracked sections with 5/16″ fuel line (~$10/ft); secure with OEM clamps.
- For canister purge: Drop tank if saturated (pro job, $300-500 parts/labor DIY).
Acura TSX P0456 EVAP leak small fix
P0456 on Acura TSX indicates a tiny EVAP leak (<0.02″), often a pinhole in hoses or vent valve.
It’s the most reported code, fixable DIY without dealer tools. Start with gas cap; escalate to smoke testing if persistent.
DIY Smoke Test for P0456
Build a $20 smoke machine or buy one—essential for pinpointing leaks shops charge $150 for.
- Disconnect EVAP hose at purge valve, plug service port with 1/4″ fitting.
- Pump cigar or incense smoke into system via purge valve port.
- Look for smoke escaping: hoses, canister, tank neck grommet.
Fixed dozens this way; common leak spot is the canister vent valve on rear axle (2009+).
Model-Specific Fixes for P0456
| Model Year | Common Leak Source | Part & Cost | DIY Time |
|---|---|---|---|
| 2004-2008 | Throttle body purge hose | #17179-PND-A01, $15 | 30 min |
| 2009-2014 | Vent valve assembly | #37890-RNA-A01, $80 | 1 hour |
Replace vent valve: Access under car, unplug, two bolts. Pro tip: Lubricate new O-rings with ATF.
Acura TSX EVAP canister location and replacement
The EVAP canister on Acura TSX is model-dependent: 2004-2008 under rear seat or trunk side, 2009-2014 mounted under the car near fuel tank.
Replacement costs $200-400 OEM; DIY avoids $600 labor. Saturated canisters smell like gas and fail smog.
Finding and Removing the Canister
- 2004-2008: Fold rear seat, remove trunk liner panel (three clips), unbolt canister (10mm), disconnect hoses/electrical.
- 2009-2014: Jack rear, support axle; canister on passenger frame rail. Drain tank partially if needed.
- Transfer: Transfer filters if reusable; install new with new gaskets.
Torque bolts to 15 ft-lbs. Common OEM weakness: Plastic housing cracks after 120k miles.
Signs Your Canister Needs Replacement
- ! Persistent P0455 after hose fixes.
- ! Fuel odor in cabin/trunk.
- ! Hiss from tank when unscrewing cap.
Will Acura TSX pass emissions with check emission system light?
No, your Acura TSX will not pass emissions testing with the check emission system light on, as OBD-II readiness monitors are incomplete.
Shops plug in and fail it instantly; clear it properly post-fix. In states like California, even without light, failed EVAP monitor means rejection.
Drive cycles reset monitors: 50 highway miles with varied throttle. Avoid short trips post-clearance.
Acura TSX check emission system reset without scanner
Resetting without a scanner risks masking issues, but for gas cap swaps: Disconnect battery 10 minutes, touch cables to drain ECU.
Better: Drive 100 miles normally. Scanner ($20 Bluetooth) is worth it for permanent clears.
FAQ
Can I drive my Acura TSX with the check emission system light on?
Yes, short-term it’s safe—no drivability loss—but ignore long-term and risk catalytic converter damage from rich fuel mixtures. Get it fixed before smog check.
How much does it cost to fix Acura TSX EVAP system at a dealer?
Dealers quote $800-2,000 including diagnostics; independents $300-600. DIY under $100 for most fixes.
Why does the emission light come on after filling gas?
Overfilling splashes fuel into EVAP lines, saturating the canister or dislodging the rollover valve. Top off slowly, no pump nozzle inside filler neck.
Does cleaning the EVAP purge valve fix the problem?
Sometimes, if gummed with carbon: Spray carb cleaner through it. But replace if solenoid clicks erratically—cleaning fails 70% of sticky cases.
Is the check emission system related to oxygen sensors?
No, it’s purely EVAP; O2 sensors trigger different codes like P0134. But a bad cat can mimic emissions lights—scan first.
In summary, the Acura TSX check emission system warning is a fixable EVAP gremlin that dealerships overcomplicate for profit.
Armed with codes, tools, and these steps, diagnose and repair it yourself confidently.
Regular maintenance like OEM gas caps and hose inspections prevents recurrence, keeping your TSX emissions-compliant and reliable for years.
