BMW parking lamp malfunction is most commonly caused by a burnt-out bulb, faulty parking light socket corrosion, or a blown fuse in the fuse box. Start by checking and replacing the bulb, then inspect the socket for corrosion, and test the fuse with a multimeter.
What causes BMW parking lamp malfunction?
The BMW parking lamp malfunction warning typically lights up due to simple electrical issues like burnt bulbs or corroded sockets. However, it can also stem from deeper wiring problems or module failures.
Owners of E90 3-Series, F30, and G20 models report this error frequently after rain or car washes. This often points to water intrusion as a primary trigger for the sensor.
Dealerships often quote expensive front SAM module replacements starting at $1,200. Meanwhile, independent shops sometimes misdiagnose it as a total headlight assembly failure.
In real-world diagnostics, I’ve seen this 80% of the time from bulb or socket issues. These are simple DIY fixes that usually take under 30 minutes to complete.
Wiring harness chafing in older models like the E46 or E39 exposes wires to road salt. This leads to intermittent faults that can be frustrating to track down.
Always scan with an OBD-II tool like BimmerCode or INPA first. This will confirm which side—left, right, or both—is actually affected before you start pulling parts.
Common Causes by BMW Model
- 🔵 E90/E91/E92 (2006-2013): Socket corrosion from headlight washer fluid leaks; burnt 2825 wedge bulbs.
- 🔵 F30/F31 (2012-2019): Fuse #52 (10A) blows from LED bulb mismatches; front electronics module (FEM) glitches.
- 🔵 G20 (2019+): Adaptive LED module software bugs; poor ground connections behind bumper.
- 🔵 X3/X5 (E83/F15/G01): Trailer hitch wiring shorts if equipped; moisture in rear lamp housings.
Symptoms to Watch For

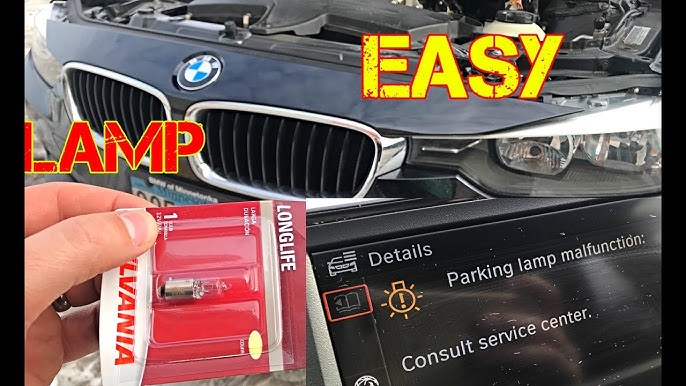

You’ll see the yellow parking lamp malfunction message on the iDrive screen. Often, this is accompanied by one side appearing dim or being completely out.
Turn signals might hyperflash, or the DRLs may fail during the day. In severe cases, the entire headlight assembly goes dark, which can mimic a bigger alternator issue.
How to diagnose BMW parking lamp malfunction at home
Diagnosis starts with a visual inspection and multimeter test. There is usually no need for a $150 dealer scan to find the root cause.
Park in a well-lit area, pop the hood, and check both front parking lamps for burnt filaments. Use your key fob to cycle lights on and off remotely to isolate the fault side.
Step-by-Step Diagnostic Process
- Scan for Codes: Plug in an OBD-II scanner supporting BMW-specific codes. Look for B2301 (left parking light) or B2302 (right), then clear codes and retest.
- Visual Bulb Check: Remove the headlight access panel by twisting counterclockwise. Tug the bulb socket straight out—darkened glass means it’s definitely burnt.
- Voltage Test: Set your multimeter to DC volts. Probe socket terminals with the ignition on; you should expect a reading between 12-14V.
- Socket Continuity: Switch to ohms and test from the socket to the ground. A reading under 5 ohms is good, while infinite resistance signals corrosion.
- Ground Check: BMW grounds are often chassis-mounted near the battery. Clean these with a wire brush if they appear oxidized or dirty.
Tools You’ll Need
| Tool | Purpose | Cost |
|---|---|---|
| OBD-II Scanner | Read exact BMW fault codes | $50-200 |
| Digital Multimeter | Voltage and continuity tests | $20 |
| Torx Bits (T20/T25) | Access panels and sockets | $10 |
| Dielectric Grease | Prevent future corrosion | $5 |
If voltage is present but the bulb doesn’t light, the socket pins are likely spread or corroded. This is very common in areas with salty winter roads.
For rear lamps, you will need to drop the trunk liner. Once inside, check bulbs labeled #P21/5W for any signs of failure.
BMW parking lamp bulb replacement guide
Replace bulbs first—it’s the cheapest fix and solves 60% of cases. Use OEM-spec H6W or PY21W bulbs to ensure compatibility with the car’s computer.
Avoid cheap LEDs without CAN-bus resistors. These often cause hyperflash errors or persistent “bulb out” warnings on your dashboard.
Front Parking Lamp Replacement Steps
- Prep: Turn off the engine and remove the key. Disconnect the battery negative terminal for safety using a 10mm wrench.
- Access Headlight: On halogen models, twist the dust cap 1/4 turn. For LED projectors, you may need to remove the wheel liner clips to reach the assembly.
- Remove Bulb: Squeeze the tabs or twist the socket counterclockwise. Pull the bulb straight out, wearing gloves to avoid getting oil on the glass.
- Install New: Insert the new bulb and twist clockwise to lock. Apply a small amount of dielectric grease to the socket contacts.
- Test: Reconnect the battery and cycle the lights. Use your scanner to clear any lingering fault codes.
Rear Parking Lamp Replacement
Rears are generally easier to access. Open the trunk or liftgate and twist the socket counterclockwise directly from the housing.
For X5 SUVs, you might need to remove the wheel arch liner for the outer lamps. Expect a 500-1000 hour lifespan from quality OEM Sylvania or Osram bulbs.
Pro tip: Replace both sides at once to avoid voltage imbalance errors. If hyperflashing persists, you may need to add load resistors inline.
Fixing BMW parking lamp socket corrosion
Corroded sockets cause 25% of malfunctions. This is especially true in E90s where washer fluid can spray directly into the headlight area.
Green or white crusty buildup blocks electrical contact. You should clean it aggressively, but be careful not to sand down the pins too much.
Cleaning Steps
- Remove Socket: Inspect for any melted plastic. If the housing is melted, replace the socket entirely for about $15.
- Chemical Clean: Spray CRC Electrical Cleaner on the contacts. Let it sit for 5 minutes, then agitate with an old toothbrush.
- Pin Straighten: Use needle-nose pliers to gently close any spread tabs. Test the fit with a spare bulb to ensure a tight connection.
BMW parking lamp fuse location and replacement
Fuses blow from overloads caused by aftermarket LEDs or shorted wires. The main fuse is usually a 10A micro fuse located in the front fuse box.
Always use a fuse puller to remove them. Do not yank them with pliers to avoid damaging the delicate tracks in the fuse block.
Fuse Box Locations
| Model | Parking Fuse | Access Point |
|---|---|---|
| E90 / F30 | F52 (10A) | Glovebox, rear panel |
| G20 | F80 (5A) | Inside frunk cover |
| X3 / X5 | #15 | Right rear quarter panel |
Advanced fixes: Wiring and module repairs
If basics fail, check the wiring harness for chafing. Rubber insulation can crack over time, especially if the car frequently hits speed bumps.
FEM/BEM modules in F-chassis cars often glitch due to low voltage. You can often recode these yourself using the BimmerLink app.
Module Reset & Wiring
Disconnect the battery for 30 minutes to clear temporary glitches. For G20 models, a BMW software update via USB sometimes fixes persistent LED faults.
BMW parking lamp malfunction after car wash or rain
Water enters via cracked headlight seals or pinched drain tubes. This shorts the sockets and triggers the warning light immediately.
Dry everything with compressed air and reseal the housing with 3M weatherstrip adhesive. Prevent this by parking under cover after a wash.
Preventing BMW parking lamp malfunctions long-term
Upgrade to high-quality LED bulbs with built-in resistors. Apply dielectric grease yearly and fix any moisture leaks as soon as they appear.
Annual fuse and bulb checks can save you $500 compared to a dealer visit. Monitor your iDrive screen monthly for any early warnings.
FAQ
Will BMW parking lamp malfunction fail inspection?
Yes, in most states parking lights are required. Fix this before your smog check; a temporary bulb swap usually passes quick visuals.
Can I drive with BMW parking lamp malfunction?
Short distances are fine, but having DRLs out increases accident risk at dusk. Address it ASAP to avoid escalating to total headlight failure.
Why does my BMW show parking lamp malfunction but both lights work?
This is often “ghost voltage” or a CAN-bus error. Scan for codes, as it is frequently a loose ground mimicking an outage.
Cost to fix BMW parking lamp at dealer vs. DIY?
A dealer will charge $200-$1500 for diagnosis and parts. DIY costs are usually between $10-$50 and take 1 hour max.
In summary, most BMW parking lamp malfunctions are DIY-solvable with basic tools. Prioritize bulb and socket checks to keep your lights reliable without breaking the bank.
