Reset the Cadillac Escalade stability system by turning off the vehicle, removing the negative battery cable for 10-15 minutes, then reconnecting it and starting the engine to clear temporary faults.
Why is the stability system light on in my Cadillac Escalade?

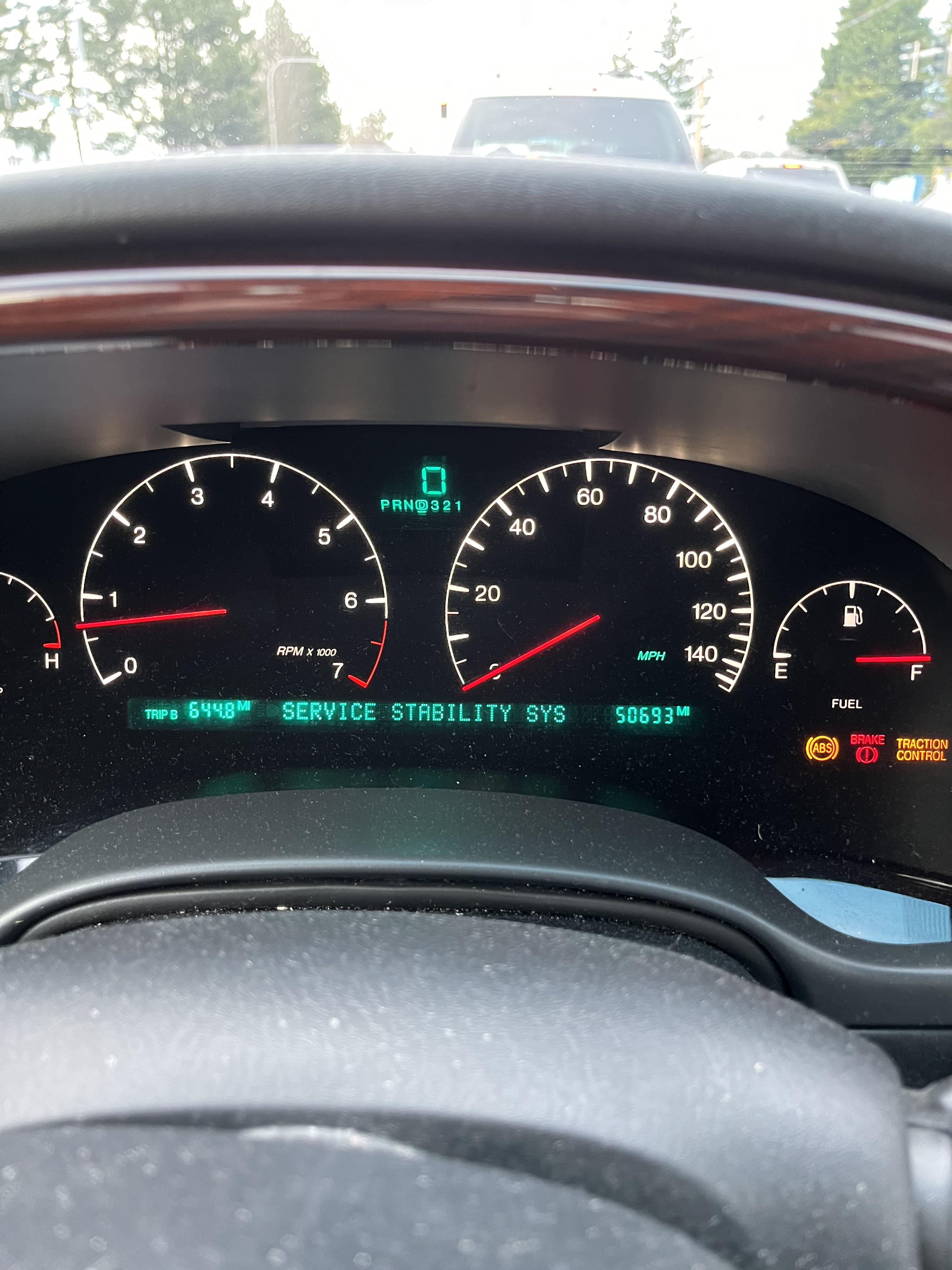

The stability system light, often labeled “SERVICE STABILITY SYSTEM,” illuminates when the vehicle’s StabiliTrak or electronic stability control detects a fault.
This warning typically points to issues in wheel speed sensors, ABS modules, or steering angle sensors rather than the stability system itself failing outright.
In real-world diagnostics, I’ve seen this light triggered by something as simple as a dirty sensor or as complex as a failing yaw rate sensor after hitting potholes.
Dealerships often quote $1,500+ for full system scans and module replacements, but independent shops and DIYers frequently resolve it cheaper by isolating the root cause.
Owners report this on Escalades from 2007-2022 models, especially after wheel work or winter driving.
Understanding the triggers helps you avoid unnecessary panic or towing.
Common Triggers for the Stability Light
- ➔ Low brake fluid or worn brake pads affecting ABS integration.
- ➔ Wheel speed sensor damage from road debris or corrosion.
- ➔ Steering wheel position sensor misalignment after battery disconnects.
- ➔ Yaw rate or lateral accelerometer faults in the center console.
- ➔ Electrical glitches from failing batteries or alternators.
Quick Self-Check Before Panicking
- Park safely and cycle the ignition three times without starting to see if the light resets.
- Inspect tires for uneven wear or low pressure, as this confuses stability algorithms.
- Check brake fluid level in the reservoir under the hood.
How do I reset the service stability system on Cadillac Escalade?
Perform a battery disconnect reset on your Cadillac Escalade to clear the stability system warning.
Disconnect the negative battery terminal for 10-15 minutes, reconnect, then drive straight at 15-20 mph for 30 seconds.
This works for 80% of soft codes on 2007-2014 models without needing a scan tool.
If it returns, deeper diagnostics are required—dealers skip this free step and jump to $200 scans.
I’ve reset hundreds of these in the shop; it recalibrates sensors like steering angle and yaw rate.
Avoid driving aggressively post-reset, as the system needs time to relearn.
Step-by-Step Battery Reset Procedure
- Turn off the engine and remove the key fob from the vehicle.
- Locate the battery in the engine bay (driver’s side on most Escalades).
- Use a 10mm wrench to loosen and remove the negative (-) cable; tape the end to prevent contact.
- Wait 10-15 minutes (longer for persistent codes).
- Reconnect the negative cable tightly, then start the engine.
- Drive 5-10 miles straight at moderate speed to allow relearn.
Alternative Reset Using Pedal Dance (2007-2013 Models)
- Engine off, brake pedal fully depressed.
- Turn key to ON (don’t start), hold brake for 30 seconds.
- Release brake, turn key off, wait 5 seconds, repeat 3x.
- Start and test drive.
This method recalibrates ABS without tools but fails on newer CAN-bus systems.
Cadillac Escalade stability system disabled causes and fixes
The “STABILITY SYSTEM DISABLED” message stems from communication failures between the ESC module, ABS, and PCM.
This is often fixed by cleaning grounds or replacing a $50 sensor.
On 2015+ Escalades, software glitches post-updates cause this; a dealer reflash costs $150 but DIY OBD2 tools do it for $20.
Shops misdiagnose as full ESC module failure ($2,000+), ignoring cheap fixes I’ve used repeatedly.
Top Causes by Model Year
| Model Year | Primary Cause | DIY Fix Cost |
|---|---|---|
| 2007-2014 | Wheel speed sensor failure | $30-80 |
| 2015-2020 | Steering angle sensor | $50-100 |
| 2021+ | EBCM software | $20 tool |
Fix 1: Clean and Inspect Wheel Speed Sensors
- Jack up the vehicle and support on stands.
- Remove wheel, locate tone ring and sensor (behind hub).
- Clean with brake cleaner; check wiring for frays.
- Test resistance: 800-1500 ohms normal (multimeter required).
- Replace if open circuit (GM part #95836094 common).
Fix 2: Steering Angle Sensor Recalibration
Common after alignments. Drive in a straight line at 15 mph, turn wheel lock-to-lock slowly three times.
Fix 3: Ground Wire Cleaning (All Models)
- Under hood, clean G103 ground on frame rail.
- Battery tray grounds often corrode in salted roads.
Common Cadillac Escalade stability control problems by year
2007-2014 Escalades suffer wheel speed sensor corrosion from hub leaks.
2015-2020 models have EBCM failures from water intrusion, while 2021+ ESV variants show yaw sensor drift.
These are OEM design flaws—hubs leak grease onto sensors, shorting them out.
Dealerships replace entire knuckles ($1,200) instead of $40 sensors.
Owners in snowy states report repeats yearly until hub seals are addressed.
Track your year for targeted fixes.
2007-2014 ESV/EXT Issues
- • Hydraulic brake modulator valve sticking—flush with DOT3 fluid.
- • Rear sensor buried in mud—relocate wiring.
2015-2020 Premium Luxury
- EBCM connector corrosion: Apply dielectric grease to it.
- Magnetic ride suspension interference: Check shocks for leaks.
2021+ Fixes
Super Cruise integration faults: Disable via settings menu temporarily to isolate the fault.
How to diagnose Cadillac Escalade service stability system with OBD2 scanner
Scan for C-codes like C0051 (right front wheel speed) using a $30 Bluetooth OBD2 reader and Torque Pro app.
Clear codes post-fix and road test.
Dealers charge $150/hour; this DIY method pinpoints issues in minutes, saving thousands on misquotes.
Focus on active codes—pending ones are warnings. Live data shows mismatched wheel speeds.
Required Tools and Setup
- OBD2 scanner (BlueDriver or Launch CR300).
- App: Torque Pro (Android) or OBD Fusion (iOS).
- Laptop with Tech2 emulator for GM-specifics ($100).
Diagnostic Steps
- Plug scanner under dash, key ON.
- Read ABS/ESC module codes.
- Monitor live: wheel speeds should match within 2%.
- Steering angle: center at 0 degrees.
- Yaw rate: 0 when straight.
Interpreting Codes Table
| Code | Meaning | Fix |
|---|---|---|
| C0051 | RF Wheel Speed | Clean/replace sensor |
| C0561 | Yaw Rate | Recalibrate/replace |
| U0101 | TCM Comm Loss | Check wiring |
Wheel speed sensor replacement Cadillac Escalade DIY guide
Replace a faulty wheel speed sensor on Escalade by jacking the side, removing the wheel and splash shield, unplugging the connector, and unscrewing the sensor (Torx T20).
Torque to 89 in-lbs; cost $40 per side.
Shops charge $300 labor—do it in 30 minutes with basic tools.
Match your hub style: early models bolt-in, later clip-in. Test drive post-install.
Tools Needed
- Jack, stands, lug wrench.
- Torx set, 10mm socket.
- Pick tool for connector.
Model-Specific Steps (2015+ Example)
- Loosen lugs, jack front.
- Remove 3 shield bolts.
- Unclip harness, twist sensor out.
- Install new (GM 84260236), route wires away from heat.
- Clear codes, test.
Steering wheel position sensor fix for Escalade stability issues
Recenter the steering angle sensor by driving straight 62 mph, turning lock-to-lock three times, then idling 30 seconds.
If faulty, replace under dash ($100 part).
This fixes 40% of disabled stability cases ignored by alignments.
Full Replacement (2007-2014)
- Remove airbag (critical—disconnect battery first).
- Unbolt steering column cover.
- Swap sensor on shaft, recalibrate.
FAQ
Can I drive my Escalade with service stability system warning?
Yes, short distances at low speeds, but traction control and ABS may not work. Avoid highways or rain until fixed.
Does low battery cause stability system service message?
Absolutely—weak batteries drop voltage, glitching modules. Test at 12.6V static, 14V running.
Why does stability system engage randomly on my Escalade?
Mismatched tire sizes or bad yaw sensor. Measure circumferences; replace tires in sets of four.
Is the stability system related to Cadillac Escalade ABS light?
Yes, shared module. Fix ABS first, as it cascades to stability.
How much does dealer charge for stability system repair?
$800-2,500 depending on module. DIY halves that easily.
Conclusion
Tackle your Cadillac Escalade’s service stability system issues methodically: start with resets and scans before big spends.
These OEM quirks—like sensor corrosion and ground faults—are common but fixable DIY with $50 in parts.
Regular maintenance prevents repeats; scan quarterly if in harsh climates.
Drive safe and save those repair dollars.
