Cadillac Escalade service suspension system requires inspecting air struts, compressor, height sensors, and control arms first; common faults include air leaks and sensor failures, fixed via DIY leak tests or professional alignment.
What is Cadillac Escalade service suspension system and when does it need attention?

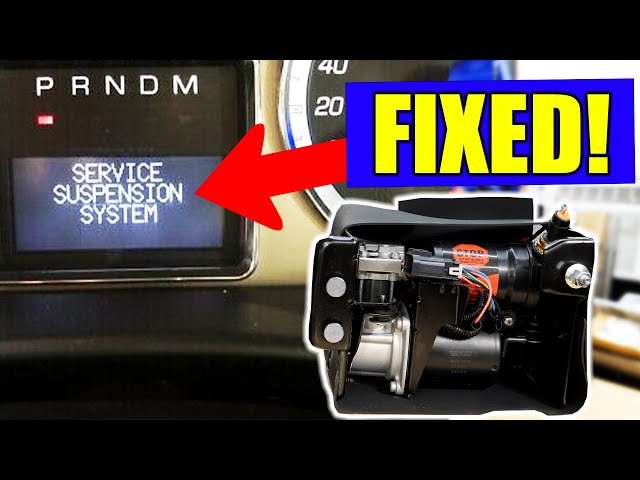

The Cadillac Escalade’s suspension system, primarily the air suspension on models from 2007-2022, uses air springs, a compressor, and sensors to maintain ride height and smoothness. It needs service when you notice sagging corners, harsh ride, or dashboard warnings like “Service Suspension” or “Suspension Fault.”
Owners report this after 80,000-120,000 miles, often from daily heavy loads or pothole damage. Ignoring it leads to uneven tire wear and bottoming out, so check monthly if towing frequently.
Key Components of Escalade Air Suspension
- 🔹 Air struts/spring bags: Hold air pressure for adjustable height; prone to leaks from dry rot.
- 🔹 Air compressor: Pumps air; fails from overuse or moisture buildup.
- 🔹 Height/level sensors: Measure ride height; bend or corrode easily.
- 🔹 Control module: Brain of the system; glitches from water intrusion.
- 🔹 Valve blocks: Distribute air; clog with debris.
Early Warning Signs Before Full Failure
Listen for compressor running constantly (over 5-10 minutes on startup). Feel for nose-high stance or one corner dropped overnight.
Scan codes with an OBD2 tool showing C0750 or C0697 for quick diagnosis.
How to diagnose Cadillac Escalade suspension service fault at home
Start diagnosis by parking on level ground overnight and measuring heights from wheel center to fender: front 28-30 inches, rear 25-27 inches; variances over 1 inch signal issues. Use a $20 OBD2 scanner for codes like C0561 (invalid data) or B1000 (module fault).
Listen under the vehicle for hissing air leaks near bags or lines. Rock the truck side-to-side; excessive lean points to worn shocks if air system holds height.
Step-by-Step DIY Diagnostic Checklist
- Visual inspection: Jack up each corner safely, check bags for cracks, lines for chafing, and compressor relay for clicks.
- Air leak test: Pressurize system (key on, engine off), spray soapy water on bags/lines; bubbles reveal leaks.
- Sensor check: Trace wires from each wheel to module; look for breaks or corrosion at plugs.
- Compressor test: Disconnect dryer; if it runs non-stop, suspect leaks elsewhere.
- Code clearing: Fix issue, clear codes, drive 20 miles; if they return, module may need reset.
Common Misdiagnoses by Shops
Dealerships often quote full $3,000-5,000 replacement without leak tests, blaming “faulty module.” Independents overlook sensor alignment, replacing bags prematurely.
Always demand pressure tests first to ensure you aren’t paying for unnecessary components.
Common Cadillac Escalade suspension problems and fixes
Most frequent issues stem from air bag leaks (60% of cases) and failed height sensors (25%), per owner reports. Fixes range from $50 patches to $1,500 compressor swaps, often DIY-able with basic tools.
Heavy use accelerates wear; Escalades in snowy areas see faster compressor burnout from moisture.
Air Spring/Bag Leaks: Causes and Step-by-Step Fixes
Cracks form from age or ozone exposure; rear bags fail first under load.
- Locate leak with soapy spray.
- Deflate bag, cut zip ties, remove piston rod nut (21mm).
- DIY patch: Use silicone sealant inside crack, or replace with aftermarket ($100-200 ea.).
- Torque new bag to 85 ft-lbs; cycle system 3x to check.
Height Sensor Failures: Model-Specific Fixes (2007-2014 vs 2015+)
2007-2014 sensors snap at linkage; 2015+ have better plastic but corrode.
- 2007-2014: Replace sensor ($50, part 25776381); align linkage perpendicular.
- 2015+: Clean corrosion with dielectric grease; swap if resistance >5k ohms.
Test: Jack wheel, measure voltage (0.5-4.5V range); no change means bad sensor.
Air Compressor Failure: Diagnosis and Replacement
Compressors overheat from constant duty, lasting 100k miles max. Signs: Slow height adjustment or burning smell.
| Symptom | Cause | DIY Fix Cost |
|---|---|---|
| Constant running | Leak elsewhere | $0 (fix leak) |
| No air buildup | Seized piston | $250 rebuild kit |
| Overheats | Bad relay | $20 relay swap |
Replace: Unbolt from frame (behind rear wheel), install universal kit ($300) with relay upgrade.
Cadillac Escalade service suspension system cost breakdown
DIY fixes total $200-800; dealer quotes $2,500-6,000 for full system due to OEM parts markup. Independent shops average $1,200-2,500 with aftermarket.
Budget extra for alignment ($100) post-repair to avoid tire wear.
Cost Comparison Table by Repair Type
| Repair | DIY Cost | Indy Shop | Dealer |
|---|---|---|---|
| Single Air Bag | $150 | $500 | $1,200 |
| Compressor | $300 | $900 | $1,800 |
| Full System | $1,200 | $2,500 | $5,000 |
| Sensors (set) | $150 | $400 | $800 |
Tips to Avoid Overquoting
Bring your scan codes and leak test video. Insist on pressure gauge readings before approving parts.
Convert to coilovers ($1,500 kit) for permanent fix if under warranty void.
DIY Cadillac Escalade air suspension repair tools and parts
Essential tools: OBD2 scanner ($30), jack stands ($100 set), 21mm socket set, soapy water bottle. Parts from RockAuto or Amazon: Air bags ($120), sensors ($40), compressor relay ($15).
Safety first: Chock wheels, relieve air pressure via scan tool or fuses.
Required Tools List
- 🛠️ OBD2 scanner with bi-directional control (e.g., Autel AL519).
- 🛠️ Torque wrench (20-100 ft-lbs).
- 🛠️ Air line crimper for custom hoses.
- 🛠️ Dielectric grease and zip ties.
- 🛠️ Jack and stands rated 3-ton+.
Best Aftermarket Parts Sources
Arnott Industries for direct-fit bags (OEM quality, half price). ACDelco sensors for reliability.
Avoid eBay no-names prone to early failure.
Convert Cadillac Escalade to coil spring suspension: Pros, cons, and guide
Conversion kits ($1,200-2,000) eliminate air issues permanently using coilovers; ideal for 100k+ mile trucks. Pros: No leaks, cheaper long-term; cons: Loses auto-leveling, stiffer ride.
Popular for lifted Escalades; retains 90% comfort.
Step-by-Step Conversion Guide
- Deflate air system, remove bags/sensors (4-6 hours).
- Install front coilover struts (torque 100 ft-lbs).
- Rear: Bolt-in coils with shocks; adjust ride height links.
- Clear codes, align truck (critical for handling).
Model-Year Kit Recommendations
- ✅ 2007-2014: Strutmasters kit (SM-8600AS).
- ✅ 2015-2020: Arnott coil system (A-2788).
- ✅ 2021+: Custom fab due to adaptive shocks.
Cadillac Escalade suspension maintenance schedule and tips
Inspect quarterly: Check bags, clean sensors, test compressor relay. Rotate tires every 5k miles to even wear. Use OEM shocks if converting back.
Winter prep: Seal compressor dryer, add desiccant.
Monthly/Yearly Maintenance Checklist
- 📅 Monthly: Measure heights, listen for compressor.
- 📅 Yearly: Replace relay ($20 preventive), grease linkages.
- 📅 Every 50k: Full leak test, sensor calibration via Tech2 or app.
FAQ
Can I drive my Escalade with suspension service light on?
Yes, short distances if height holds, but avoid highways or loads to prevent compressor burnout or bottoming out.
Why does my Escalade sag in the rear overnight?
Typically a leaking rear air bag or valve block; test with soap and replace the bag if confirmed.
Is air suspension worth repairing on high-mileage Escalade?
Only if under 120k miles and not towing heavy; otherwise, convert to coils for reliability.
How to reset Escalade suspension system after repair?
Disconnect battery 10 minutes, or use scanner to run “trim” procedure; cycle height 3x.
What’s the difference between air suspension and magnetic ride on newer Escalades?
Air is height-adjustable; magnetic (2021+) damps adaptively but still uses air bags prone to same leaks.
In summary, servicing your Cadillac Escalade’s suspension saves thousands by DIY diagnosing leaks and sensors first, avoiding dealer overhauls. Regular checks and proactive parts swaps keep your luxury SUV riding smooth for years—don’t let shops upsell full replacements when targeted fixes suffice.
