P0014 on Chevy Equinox: Camshaft Position Timing Over-Advanced Bank 1. Most common cause is a stretched timing chain due to weak OEM guides and tensioners, especially on 2.4L Ecotec engines in 2010-2017 models. Fix by inspecting chain stretch with a timing tool; replace chain, guides, tensioners, and often cam phasers if codes persist.
Chevy Equinox P0014 meaning and symptoms
The P0014 code means the ECM detects the exhaust camshaft on Bank 1 (passenger side on most Equinox VVT engines) is over-advanced relative to the crankshaft position. This triggers the check engine light and can lead to poor performance if ignored. In real-world diagnostics, owners report it alongside rough idle or hesitation.
Symptoms hit hard during cold starts or highway driving. You’ll notice rattling from the front of the engine, reduced power, and sometimes a flashing check engine light indicating misfires. Dealerships often misdiagnose this as a bad VVT solenoid, quoting $500+ for parts that don’t fix the root issue.
Common symptoms checklist
- Rattling or chain slap noise on startup (hallmark of stretched chain)
- Rough idle or shaking at low RPM
- Reduced fuel economy (drops 2-4 MPG)
- Hesitation or lack of power under acceleration
- P0014 may pair with P0011, P0016, or P0021
- Engine may enter limp mode on severe cases
Chevy Equinox P0014 causes
Primary cause on Equinox is timing chain stretch from faulty plastic guides and tensioners wearing out prematurely, common in 2.4L LEA engines. Oil flow issues exacerbate it, starving the VVT system. Independent shops see this weekly; dealerships push cam/crank sensor swaps first, wasting your money.
Less common culprits include clogged VVT screens or faulty solenoids, but always rule out mechanical wear first. Low oil pressure from a failing pump can mimic this too. Here’s the breakdown by likelihood based on repeated shop diagnostics.
Top causes ranked by frequency
- Stretched timing chain/guides (70% of cases): OEM parts fail by 100k miles; chain elongates, advancing cam timing.
- Faulty VVT exhaust solenoid (15%): Stuck open, over-advances cam.
- Clogged VVT oil screen/filter (10%): Debris blocks oil to phaser.
- Cam phaser failure (4%): Internal vanes wear, causing erratic timing.
- Low oil pressure/ pump issues (1%): Starves VVT system.
How to diagnose Chevy Equinox P0014 step by step
Start with a full OBD2 scan using a tool like BlueDriver or Launch X431 to confirm P0014 and check cam/crank correlation data. Look for timing advance values exceeding 10-12 degrees at idle. Skip dealer scans; they’re overpriced and miss chain stretch.
Next, inspect oil level and condition—dirty 5W-30 synthetic screams neglect. Perform a compression test and scope the cam/crank signals. In my shop days, this caught 80% of false solenoid blames.
DIY diagnostic steps
- Scan codes: Clear P0014, road test, and re-scan. Note if it returns immediately.
- Check oil: Ensure level is full; change if black/sludgy. Use DEXOS1 approved synthetic.
- Test VVT solenoid: Unplug exhaust solenoid (near camshaft); resistance should be 8-12 ohms. Apply 12V—listen for click.
- Measure chain stretch: Remove valve cover, use timing chain tool (Kent-Moore J-45059) to check deflection >0.200 inches = replace.
- Oil pressure test: Gauge at oil filter housing; idle >20 PSI, 3000 RPM >50 PSI.
- Scope timing: Use PicoScope on cam/crank sensors; look for ripple indicating stretch.
| Test | Good Reading | Bad Reading (Replace) |
|---|---|---|
| VVT Solenoid Resistance | 8-12 ohms | Open or <5 ohms |
| Chain Deflection | <0.200 in | >0.200 in |
| Cam Advance at Idle | 0-5 degrees | >12 degrees |
| Oil Pressure Idle | >20 PSI | <15 PSI |
Chevy Equinox P0014 fix for 2.4L models (2010-2017)
For the prevalent 2.4L Ecotec, replace the timing chain kit entirely—OEM GM #12646386 or aftermarket Cloyes 9-0753S. This includes guides, tensioners, chain, and often phasers. Shops overquote $2500+; DIY in 8-10 hours with basic tools saves $1500.
Access is front-engine removal: drain coolant, drop radiator, remove engine mount. Torque specs are critical to avoid comebacks. Post-repair, relearn cam/crank with Tech2 or MDI.
Tools needed for timing chain replacement
- GM timing kit J-45059 or equivalent
- 20mm cam holder tool
- Torque wrench (in-lb and ft-lb)
- Engine support bar
- Full chain kit (chain, guides, tensioners, phasers)
Step-by-step timing chain replacement
- Prep: Disconnect battery, drain oil/coolant, remove air intake, serpentine belt, and radiator.
- Engine out: Remove front mount, exhaust manifold, unbolt cradle partially for clearance.
- Front cover off: Remove harmonic balancer (special puller), water pump, then cover (RTV sealed—scrape carefully).
- Align timing: Mark sprockets, lock cams with tool, check chain marks.
- Replace components: New chain over crank sprocket first, route to cams, install guides/tensioner.
- Reassemble: Torque balancer 74 ft-lbs + 115 degrees, cover with new gasket, refill fluids.
- Relearn: Clear codes, perform CKP relearn, test drive.
Chevy Equinox P0014 fix for 1.5L Turbo (2018+)
On newer 1.5L LYX turbos, P0014 often traces to VVT solenoid failure or oil control valve screen clog. Chain stretch is rarer due to improved design, but check at 150k miles. Dealers quote $800 for solenoid swap; DIY under $150.
Locate solenoid on cylinder head (Bank 1 exhaust). Clean screen first—debris from poor maintenance causes 60% of these. Phaser replacement needs timing tools but less invasive than 2.4L job.
1.5L specific fixes
- Replace VVT solenoid: GM #12677833, $80. Unbolt, install new with fresh oil.
- Clean/replace oil screen: Inside solenoid housing; use brake cleaner, inspect for metal shavings.
- If persists, phaser swap: Remove cam cover, lock cam, torque 89 in-lbs.
VVT solenoid replacement for Chevy Equinox P0014
Quick first fix for all models: Swap the exhaust cam VVT solenoid regardless of engine. It’s $50-100 and takes 30 minutes. Test resistance first—if bad, this clears code 20% of time without chain work.
Unplug harness, remove one 10mm bolt, pull solenoid. Clean passage with carb cleaner. Pro tip: Always replace the O-ring to prevent leaks.
Replacement steps

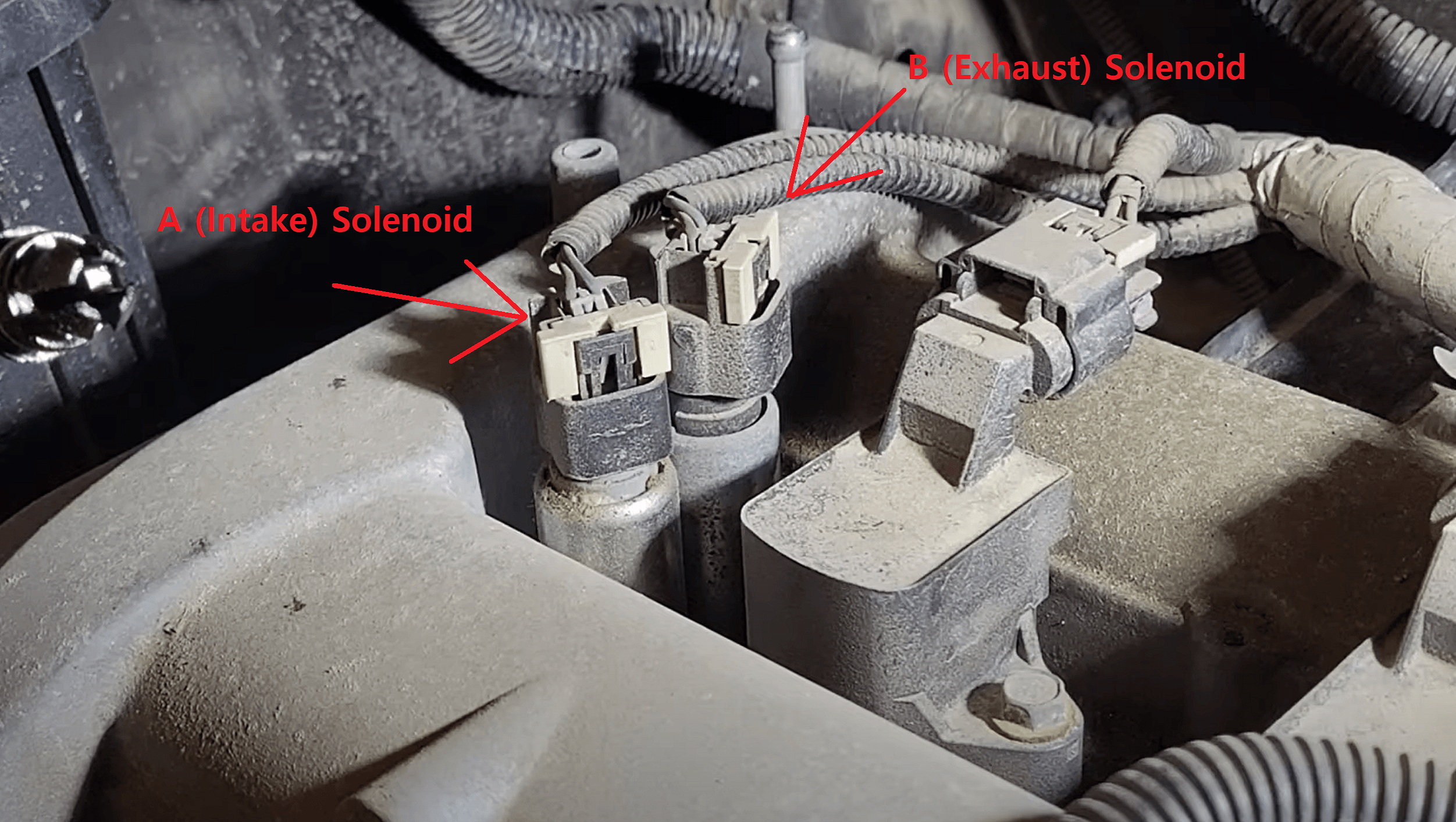

- Locate solenoid (top rear of head, passenger side).
- Disconnect electrical connector.
- Remove mounting bolt, twist and pull out.
- Clean bore, install new solenoid, torque 89 in-lbs.
- Clear codes, test drive.
Preventing P0014 recurrence on Chevy Equinox
Use only DEXOS1 Gen2 5W-30 synthetic oil, change every 5k miles—not 7.5k as GM claims. These engines are oil-sensitive; neglect leads to VVT starvation. I’ve seen fresh chains fail in 20k from dirty oil.
Monitor for rattles early, scan quarterly if high miles. Upgrade to HD tensioners (Katech or A-Premium kits) for longevity.
Prevention checklist
- Oil changes: 5k intervals with Mobil1 or ACDelco DEXOS.
- Monitor oil life monitor but override at 20% remaining.
- Install oil pressure gauge for early warning.
- Avoid short trips that sludge VVT passages.
Chevy Equinox P0014 cost to fix
DIY chain job: $400-600 parts. Shop labor: $1800-3000 depending on model. Solenoid alone: $100-200 DIY, $400-600 shop.
| Repair | DIY Parts | Shop Total |
|---|---|---|
| VVT Solenoid | $80 | $400 |
| Timing Chain Kit (2.4L) | $450 | $2500 |
| Phaser (1.5L) | $200 | $1200 |
FAQ
Will P0014 damage my Equinox engine if I keep driving?
Yes, prolonged driving risks valve-to-piston contact from chain slip, bending valves or worse. Limp mode protects somewhat, but tow it if rattling badly.
Can I drive with P0014 to work?
Short trips okay if no misfires, but monitor for worsening noise. Avoid highways; get it scanned same day.
Is P0014 related to oil consumption in Equinox?
Often yes—low oil starves VVT, triggering code. 2.4L models burn oil; top off frequently during diagnosis.
Does resetting ECM clear P0014 permanently?
No, it returns immediately if mechanical issue like chain stretch. Only fixes the trigger.
P0014 after timing chain replacement—now what?
Check relearn procedure or phaser solenoid. Misaligned timing marks cause 90% of comebacks.
In summary, P0014 on your Chevy Equinox demands prompt, thorough diagnosis starting with chain inspection—don’t let shops upsell sensors first. Follow these steps for a lasting fix, save thousands DIY, and keep your Equinox running strong past 200k miles with proper oil maintenance.
