The primary Freightliner M2 fuse box location is under the dash on the driver’s side, behind a removable panel next to the steering column. A secondary fuse panel is often in the battery compartment on the frame rail, and some models have an additional power distribution module in the engine compartment.
Where is the Freightliner M2 fuse box located?
The main fuse box in a Freightliner M2 is positioned under the dashboard on the driver’s side. It is accessible by removing a plastic cover panel directly to the right of the steering column.
This panel houses most fuses and relays for interior electronics, lights, and basic chassis functions. Look for a rectangular black or gray cover about 12 inches wide secured by clips or a few screws.

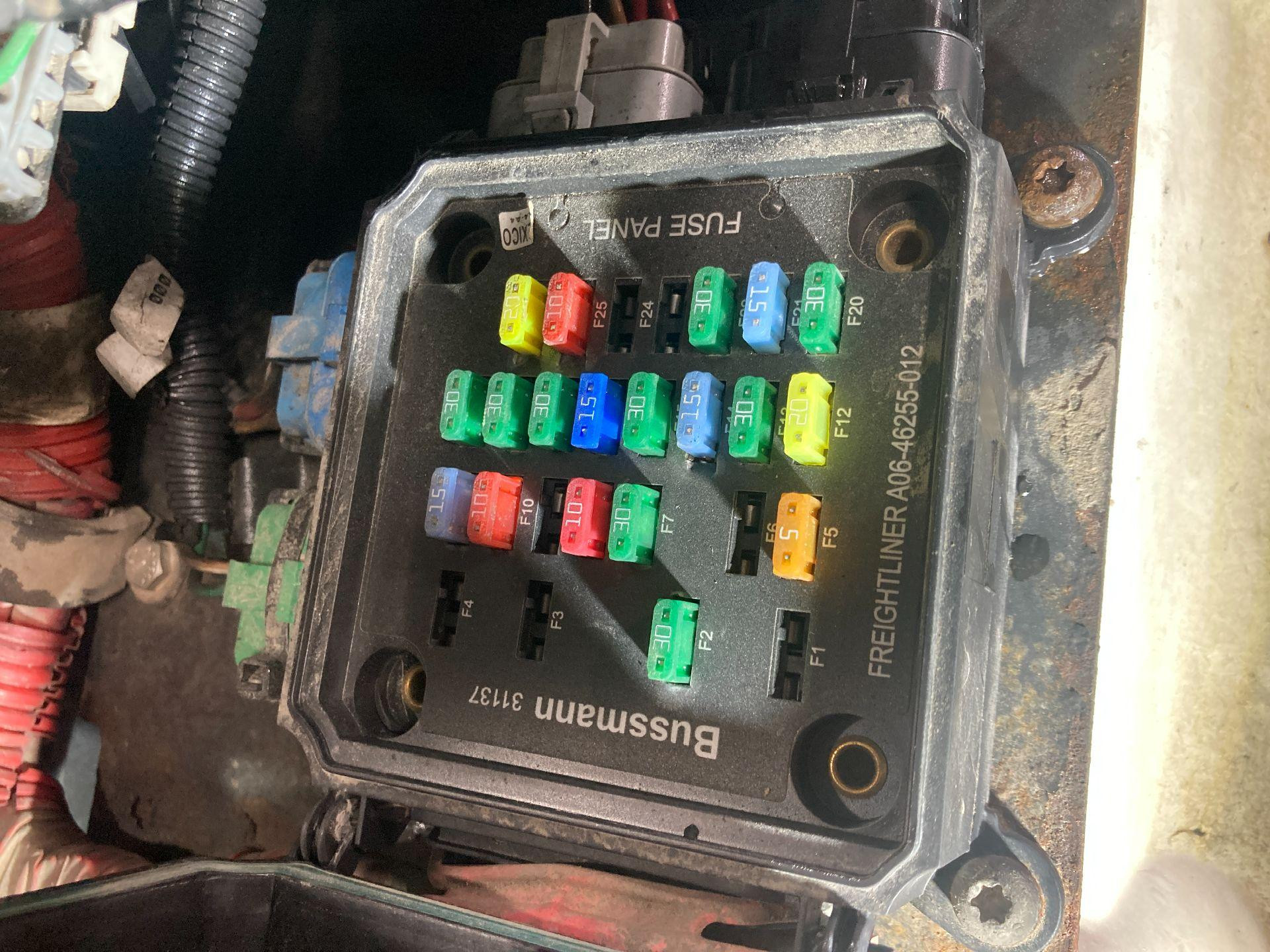

Secondary locations include the battery box on the driver’s side frame rail. This area contains high-amperage fuses for major systems like the starter and alternator.
In some configurations, especially 106 or 112 models from 2009-2022, you’ll find a power distribution center near the firewall in the engine bay. Always consult your specific model’s wiring diagram, as cab configurations can shift these slightly.
Dealerships often overlook the under-dash panel during diagnostics, quoting unnecessary ECM replacements when a simple blown fuse is the culprit. I’ve pulled dozens of these trucks off the road only to find a 30-amp fuse fried from an aftermarket accessory overload—fixed in 15 minutes curbside.
Step-by-Step Guide to Locating the Main Under-Dash Fuse Box
- Sit in the driver’s seat and look down at the lower right side of the dash, near where your right knee would be.
- Feel for a textured plastic panel about 10-14 inches tall; it may have “Fuses” or a diagram label.
- Pull the bottom edge toward you to release clips, or remove Phillips-head screws if present.
- The fuse box is a black plastic block with fuse slots and relays; a diagram is usually printed on the cover underside.
Common Fuse Box Locations by M2 Model Year and Variant
| Model/Year | Main Fuse Box | Secondary Location | Notes |
|---|---|---|---|
| 2002-2008 M2 106 | Under dash, driver side | Battery box, frame rail | Basic panel, no PDC |
| 2009-2015 M2 112 | Under dash + engine bay | Battery compartment | Added ABS module fuses |
| 2016-2022 M2 106/112 | Under dash, digital display | PDM in battery box | Touchscreen diag port nearby |
| Sleeper Cab Models | Under dash + bunk area | Rear frame rail | Extra HVAC fuses |
How to access the Freightliner M2 fuse box without tools
You can pop the main under-dash fuse box cover using just your fingernails or a credit card—no tools required on most models. Grip the bottom lip of the panel and pull firmly toward you while lifting slightly upward.
If it’s stubborn from age or grime, wrap a rag around a screwdriver for leverage without scratching. For the battery box fuse panel, open the large metal lid on the driver’s side frame rail.
This access point handles heavy loads, so disconnect the battery negative first to avoid sparks. Independent shops love charging $150 diagnostic fees for what you can check in two minutes.
Pro tip from years roadside: Shine a flashlight from below the dash before prying. Many panels have hidden tabs that break if forced blindly.
Quick No-Tool Access Checklist
- ✔ Park on level ground, engine off, key out.
- ✔ Under dash: Pull lower edge of panel toward seat, lift up.
- ✔ Battery box: Flip latch on frame rail cover, lift shield.
- ✔ Engine bay: Twist quarter-turn fasteners on black box near firewall.
Freightliner M2 fuse box diagram explained
The standard Freightliner M2 fuse box diagram is etched or printed on the inside of the cover. It labels each slot by amperage and circuit, such as “Headlights 20A” or “ECM Relay.”
Slots are color-coded for easy identification: pink for 5A, tan for 10A, and blue for 30A. Relays are larger square plugs at the top or side; you can swap identical ones for testing purposes.
Post-2016 models integrate smart fuses with LEDs that glow when blown. However, dealers often claim these are “module failures” to increase repair costs.
Full diagrams vary by build: Medium-duty haulers emphasize PTO and liftgate fuses. Print a model-year specific one from the service site before diving in.
Key Fuses Every M2 Owner Must Know
- Fuse 12 (15A): Park lamps and dash lights—blown if night driving fails.
- Fuse 28 (30A): Blower motor—common HVAC no-blow issue.
- Relay K5: Starter solenoid—clicking but no crank classic.
- Fuse 45 (20A): ABS module—triggers dash warnings unnecessarily.
Troubleshooting blown fuses in Freightliner M2 fuse box
Start by visually inspecting for melted or blackened fuses using a flashlight. Pull each suspect one with plastic pliers to avoid shock and test continuity with a multimeter.
Replace only with exact OEM equivalents like Bussmann or Littelfuse. Auto parts store generics often fail prematurely under heavy truck loads.
Recurring blows point to shorts: overloaded accessories or chafed wiring under the dash. Shops misdiagnose this as “electrical gremlins” and may try to rewire the whole harness.
Step-by-Step Blown Fuse Diagnostic
- Identify the symptom and match it to the diagram.
- Pull and inspect the fuse; replace if visibly blown.
- With the key on, test power at both fuse terminals with a multimeter.
- If power exists but there is no function, trace to the component like the bulb or switch.
Common Causes of Repeated Fuse Blows
1. Aftermarket Accessories: Inverters or extra lights overload circuits. Wire these direct to the battery with a breaker.
2. Wiring Shorts: Chafed harness under dash from steering rub. Inspect the loom and add zip ties.
3. Faulty Components: Stuck relay or bad ground. Clean grounds on the frame and chassis.
Freightliner M2 fuse box removal and replacement
To fully remove the under-dash fuse box, disconnect the battery first. Unclip the wiring harness connectors and remove the mounting nuts using a 10mm socket.
Replacement is generally plug-and-play. You can often source used units from salvage yards for around $100, compared to $500 at a dealer.
Warning: Label all connectors before pulling them, as colors can repeat across plugs. Test all circuits post-install with multiple key cycles.
Freightliner M2 no power to fuse box causes and fixes
Total fuse box blackout usually traces to main battery cable corrosion or a loose ground strap. Check voltage at the battery, then at the fuse box input stud.
A voltage drop over 0.5V indicates a cable issue. Other culprits include a blown 200A mega fuse or a faulty master solenoid.
Cycle the battery disconnect switch 10 times to fix intermittent gremlins. For 2018+ models, perform a hard reboot by pulling the ECM fuse for five minutes.
FAQ
Can I replace Freightliner M2 fuses with automotive ones?
Yes, but match the exact amperage and type (ATO/ATC standard). Avoid glass tube fuses as they can vibrate out.
What if my M2 fuse box cover is missing?
Download printable diagrams from the Freightliner service site using your VIN. Tape it to the door for future reference.
Is there a fuse for the Freightliner M2 glow plugs?
The glow plug relay is in the battery box (100A+). The main fuse under the dash powers the control module only.
In summary, mastering your Freightliner M2 fuse box locations empowers you to sidestep dealer rip-offs. Regular inspections prevent small issues from escalating—check quarterly and always carry spares.
