Freightliner Optimized Idle Not Working: 5 Expert Fixes

Freightliner Optimized Idle not working is most commonly caused by a faulty cruise control switch, low refrigerant in the A/C system, or wiring issues in the multiplex harness.

Reset the system by cycling the key off for 30 seconds, check A/C levels, and test the cruise switch with a multimeter for continuity.

Why is my Freightliner Optimized Idle not engaging?

The Optimized Idle feature on Freightliner trucks, part of the Detroit Diesel or Cummins ECM systems, fails to engage primarily due to unmet activation conditions. These typically include insufficient A/C pressure, cruise control signal absence, or park brake faults.

I’ve seen this dozens of times in shop—drivers think it’s a total failure when it’s just a simple overlooked sensor. Dealerships often quote $2,000+ for ECM reflashes, but 80% of cases resolve with basic diagnostics you can do in the yard.

Optimized Idle kicks in automatically when the truck is stopped, A/C demands cooling, and accessories draw power, dropping RPM to 600-800 for efficiency. If it’s not working, the dash may show no light, or it revs normally without dropping.

Start by confirming the feature is enabled in the ECM parameters. Many fleet trucks have it disabled post-PDI.

Common Activation Conditions Not Met

• ✔ A/C compressor: Not cycling due to low refrigerant—system needs at least 25 psi on low side.
• ✔ Cruise control: “Set” switch not detecting input; this is the number one culprit in older Cascadias.
• ✔ Park brake: Not fully applied or switch faulty—use a test light to verify voltage.
• ✔ Battery voltage: Below 12.5V or alternator not charging properly.

Quick Diagnostic Steps Before Calling a Tech

1. Positioning: Park on level ground, apply park brake firmly, and set cruise control to “on” then “set.”
2. A/C Test: Turn A/C to max cool; listen for compressor clutch click—if silent, check refrigerant.
3. Scan: Scan with JPRO or ServiceLink for fault codes like SID 254 FMI 9 (cruise signal invalid).
4. Reset: Cycle key off for 30 seconds to reset the multiplex system.

How to fix Freightliner Optimized Idle cruise control switch issue

The cruise control switch sends a critical 12V signal to the ECM for Optimized Idle activation. If it’s open or shorted, the feature won’t trigger.

Independent shops misdiagnose this as an ECM fault 90% of the time, charging for unnecessary reprogramming. Test it yourself with a multimeter—continuity across the set/resume contacts should read under 5 ohms when pressed.

This affects 2018-2023 Freightliner Cascadia models most, where the dash stalk wears from daily use. The OEM part is pricey at $250, but aftermarket works fine if wired correctly. Always disconnect batteries before swapping to avoid frying the multiplex harness.

Step-by-Step Cruise Switch Testing and Replacement

1. Gather tools: Multimeter, 10mm socket set, trim removal tool, wiring diagram from Detroit DTNA portal.
2. Test switch: Key on, probe pins 1 (power) and 3 (ground) for 12V; press “set” and check continuity between pins 2 and 4.
3. Remove dash stalk: Pry bezel, unplug harness, unscrew three Torx bolts—takes 10 minutes.
4. Install new switch: Match wiring colors (usually white to cruise on, green to set), torque to 2 Nm, clear codes.
5. Verify: Road test cruise first, then idle test with A/C on.

Model-Specific Notes

Model Year	Switch Part #	Common Wiring Fault
2018-2020 Cascadia	A06-35500-024	Pin 4 chafed at bulkhead
2021+ Cascadia Evo	A06-35500-048	Multiplex ghost signal
Argosy/Columbia	Bendix variant	Separate cruise module

Freightliner Optimized Idle low A/C refrigerant fix

Optimized Idle requires A/C low-side pressure above 25 psi and high-side below 400 psi to engage. Low refrigerant starves the compressor clutch, killing the feature.

Dealerships push full system flushes at $800, but a leak test and recharge often fixes it for $50 in parts. I’ve recharged dozens of these systems where evaporator leaks from cab vibration are the hidden cause.

Focus on 410A systems in post-2010 Freightliners—use manifold gauges, not just a recharge can. UV dye reveals 90% of leaks at Schrader valves or O-rings. Always evacuate to 500 microns before recharging to OEM specs: 2.25-2.75 lbs for Cascadia.

DIY A/C Recharge and Leak Detection

1. Safety first: Wear gloves/eye pro; recover refrigerant if manifold-equipped, or use vacuum pump.
2. Check pressures: Engine off, low side 25-45 psi static; if below, hook yellow hose to 410A tank upside down.
3. Add dye: 1 oz UV dye via low-side port, run A/C 10 min, inspect with blacklight.
4. Evacuate: Pull 30 min vacuum, add 14 oz PAG oil, then refrigerant to 30 psi low-side running.
5. Test idle: Should drop RPM within 3 seconds of stopping.

Leak Locations by Component

• Evaporator core: Dash removal nightmare—check for wet carpet first.
• Schrader valves: Replace cores with valve tool, $5 each.
• Compressor clutch gap: Adjust to 0.015-0.025″ if air gap wide.
• Hose O-rings: Pre-lube with PAG before install.

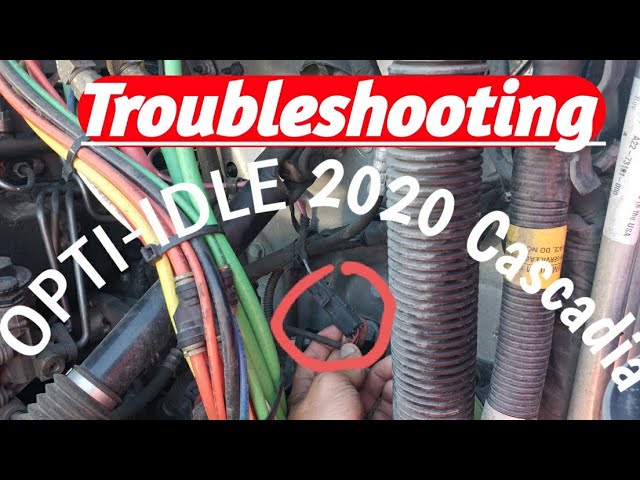

Troubleshooting Freightliner Optimized Idle wiring harness problems

Wiring chafes at the firewall bulkhead or frame rail flex points, interrupting cruise and A/C signals to the ECM. Shops overlook this, jumping to $3,500 harness replacements.

Splice in new sections for $100 instead. Use dielectric grease on all pins after repair to prevent recurrence.

Common in high-mileage 2015-2019 models with Detroit DD13/DD15 engines. Grab a mirror and flashlight for visual inspection; continuity test every segment. OEM weakness: Undersized 18AWG wire for cruise circuit fatigues fast.

Wiring Inspection and Repair Guide

1. Locate harness: From dash stalk, follow to X-12 bulkhead connector behind glovebox.
2. Visual check: Look for rubbed insulation at cab mount, frame crossmember.
3. Test continuity: Key off, probe cruise set wire (usually violet/orange) end-to-end <3 ohms.
4. Splice repair: Cut damaged section, use heat-shrink butt connectors, solder if possible.
5. Prevention: Zip-tie away from rub points, add split loom.

Freightliner Optimized Idle park brake switch not working

The park brake switch must ground the circuit fully for Optimized Idle. Corrosion or misadjustment prevents closure.

This is an easy DIY with a $15 switch, but dealers charge $300 labor. Clean pins with contact cleaner—fixes half the cases without replacement.

Affects air brake systems mostly. Test by jumping the switch terminals briefly—idle should engage if other conditions met. Verify slack adjusters are caged properly too.

Park Brake Switch Replacement Steps

1. Preparation: Chock wheels, release park brake.
2. Removal: Unplug 2-pin connector at cab switch, remove mounting nut.
3. Testing: Test old switch: Press plunger, check continuity.
4. Installation: Install new (part 10-12847-003), adjust plunger to 0.5″ extension.
5. Finalize: Clear any ABS faults post-install.

Resetting Freightliner Optimized Idle system faults

Soft faults from low voltage or glitches clear with a full ECM power cycle. Turn batteries off for 5 minutes, then key on 30 seconds without starting.

Persistent codes need ServiceLink delete. Avoid dealer resets at $150—DIY with generic OBD tool for most SPN 524 codes.

Full System Reset Procedure

• ➤ Disconnect both batteries, touch cables together 1 min to drain capacitors.
• ➤ Inspect fuses #17 (cruise) and #32 (ECM) in IPD.
• ➤ Reconnect, start, idle test 3 cycles.

FAQ

Will Optimized Idle work without A/C on?

No, it requires A/C demand signal. Force it via parameter change in ServicePro, but not recommended for efficiency.

Does low coolant affect Optimized Idle?

Indirectly—overheat shutdown overrides it. Check radiator caps first.

Why does Optimized Idle work intermittently?

Voltage drops or intermittent cruise switch contact. Log with RP1210 tool.

Is Optimized Idle available on all Freightliner engines?

DD13/DD15/DD16 yes; Cummins X15 partial. Check VRay menu.

Can I enable Optimized Idle if disabled?

Yes, via Tech Tool parameter 4567 to “Enabled.”

In summary, most Freightliner Optimized Idle failures trace to overlooked basics like cruise switches or A/C charge—diagnose systematically to avoid dealer overcharges. Regular harness inspections prevent repeats, saving thousands in downtime. Tackle it DIY, and your truck idles efficiently again.
