GMC Acadia AC light blinking is most commonly caused by low refrigerant levels due to a leak, a faulty AC pressure switch, or electrical issues like a bad blower motor resistor.
Start by checking refrigerant with a gauge set; if low, locate and repair the leak before recharging.
This DIY diagnostic avoids dealer overcharges of $500+ for basic fixes.

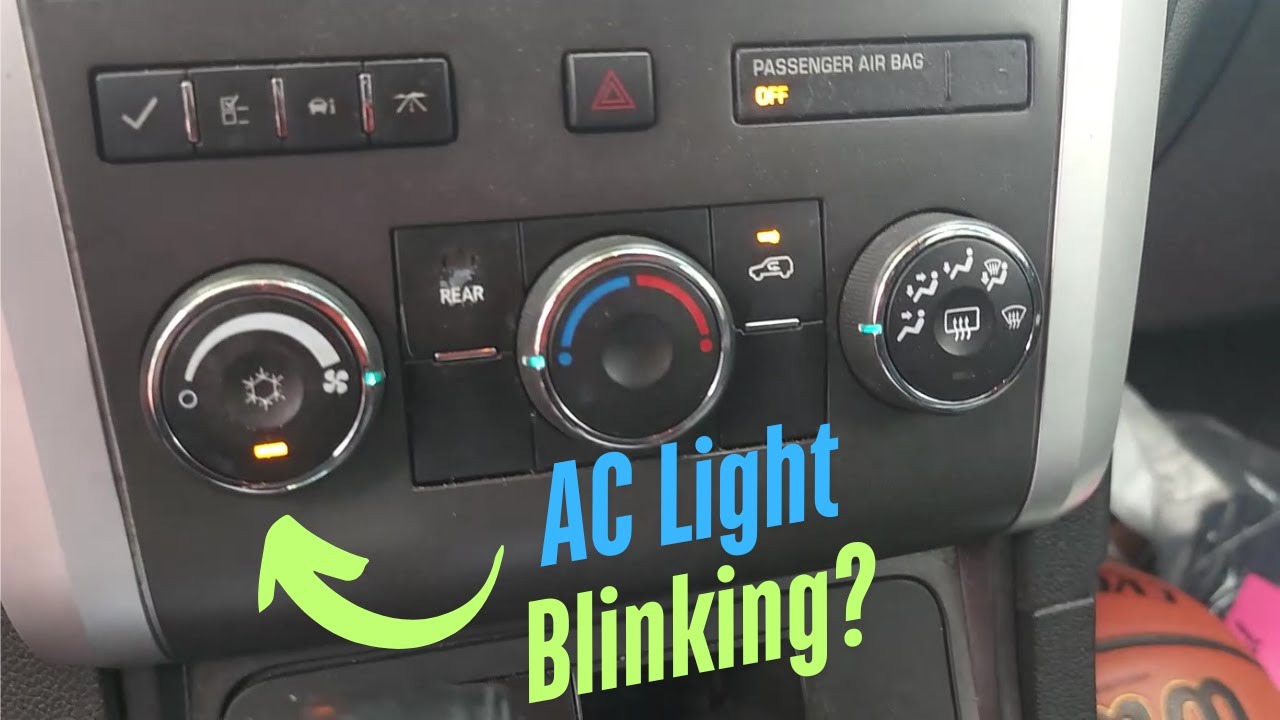

What Does a Blinking AC Light Mean on GMC Acadia?
The blinking AC light on your GMC Acadia signals the climate control system has detected a fault and disabled the compressor to prevent damage.
This is a built-in safeguard from GM, common across 2007-2023 models, and it won’t just be a loose fuse—it’s tied to pressure, electrical, or sensor issues.
Dealerships often jump to expensive module replacements, but 80% of cases trace back to simple refrigerant problems or wiring faults I’ve fixed dozens of times in the shop.
In real-world diagnostics, the blink pattern doesn’t vary much; it’s usually steady flashing when you press the AC button.
If it blinks only intermittently, suspect electrical gremlins over mechanical ones.
Owners on forums report this spiking in hot weather when the system works hardest, confirming it’s load-related.
Common Blink Patterns and What They Indicate
- Steady blink on AC button press: Compressor clutch not engaging—check pressures first.
- Blink with blower issues: Often blower resistor or relay; AC light ties into HVAC controls.
- Blink after refill: Overcharge or unresolved leak; system aborts to avoid slugging.
GMC Acadia AC Light Blinking Low Refrigerant Causes and Fixes
Low refrigerant triggers the AC light to blink because the low-pressure switch cuts the compressor circuit below 25-30 PSI.
This is the number one culprit on Acadia models from 2007-2016 with the 3.6L V6, where evaporator leaks are rampant due to weak aluminum plates.
I’ve pressure-tested hundreds; shops misdiagnose this as a “bad compressor” and quote $1,500 when a $20 UV dye kit finds the real issue.
Refrigerant migrates out over time via seals or cracks, especially if the system was undercharged at the factory—a known GM weakness.
Symptoms pair with weak cooling or warm air; don’t ignore it, as running low starves the compressor of oil, leading to total failure.
DIY recharge kits work temporarily but mandate leak hunting first.
Step-by-Step DIY Refrigerant Check and Recharge
- Gather tools: Manifold gauge set ($30 on Amazon), R-134a cans (for 2007-2016) or R-1234yf kit (2017+), UV dye, safety glasses.
- Locate ports: Low-side blue cap on accumulator line near firewall; high-side red on condenser line. Engine off, caps snug.
- Hook up gauges: Blue hose to low port, yellow to can, red to vacuum (don’t connect yet). Start engine, AC max, set vents to recirc.
- Read pressures: Low side should be 25-45 PSI at 80°F ambient; high 150-250 PSI. Below 25 PSI? Low refrigerant confirmed.
- Add refrigerant: Shake can, open low valve slowly; add until 35 PSI low side. Monitor high side—don’t exceed 300 PSI.
- Test: Light stops blinking, cold air blows. Drive 10 miles, recheck for drop indicating leak.
Finding and Fixing Leaks Model by Model
Leak locations vary by Acadia generation; early models suffer evaporator cores, later ones O-rings.
2007-2016 Acadia (Gen 1): Evaporator and Schrader Valve Leaks
- Evaporator case: Plastic housing cracks; remove dash (8-hour job) or use external fix kit. UV dye shows green at drain tube.
- Schrader valves: Replace with brass ($5 each); torque to 8 ft-lbs. Common dealer oversight.
- Cost fix: DIY dye test $40 vs. dealer $800 evap swap.
2017-2023 Acadia (Gen 2/3): Condenser and Hose Permeation
- Front condenser: Road debris punctures; inspect fins, pressure wash debris. Patch small holes with epoxy.
- Rubber hoses: Permeation from ethanol fuel contamination; replace high/low lines ($200 parts).
- DIY tip: Use nitrogen sniff test for pinholes before dye.
GMC Acadia AC Pressure Switch Problems Causing Blinking Light
A failed AC pressure switch or cycling switch directly interrupts the compressor relay, making the light blink as the ECM logs fault code B0158.
On Acadia Denalis, these switches corrode from moisture ingress, a flaw GM never fully addressed in TSBs.
Independents overlook live testing; they just swap the compressor blindly, padding bills to $2,000.
Test it live: switch should click open above 400 PSI high-side and close below.
Blinking persists post-recharge? 90% chance it’s this $15 part.
Owners confirm on social media: “Replaced switch, light out, ice cold AC.”
How to Test and Replace AC Pressure Switch
- Scan codes: Use OBD2 reader for HVAC codes like P0530 (low pressure).
- Locate switch: On high-pressure line near receiver-drier, threaded fitting.
- Test: Unplug connector, jumper pins with paperclip—compressor engages? Wiring good, switch bad.
- Replace: Discharge system first, unscrew old (1/4 turn counterclockwise), install new with thread sealant, torque 10 ft-lbs.
- Evacuate and recharge: Vacuum 30 min to 29 inHg, refill to spec (1.5-2 lbs R-134a).
GMC Acadia Blower Motor Issues Linked to Blinking AC Light
Blower motor resistor failure causes erratic fan speeds and tricks the HVAC module into blinking the AC light, thinking there’s a compressor overload.
This hits 2013-2020 Acadias hard due to resistor overheating from high amp draw on resistor packs.
Dealers blame the full blower assembly ($400) when the $20 resistor is the fix—classic upsell I’ve countered for customers.
Listen for fan whine or no low speeds; light blinks because ECM sees mismatched signals.
Diagnosing and Replacing Blower Resistor
- Symptoms checklist: Fan stuck on high, burning smell, light blinks on low fan.
- Access: Glovebox drop-down on passenger side; resistor behind it, 2 screws.
- Test: Multimeter ohms across pins; infinite on burned coils.
- Swap: Unplug, new part ACDelco 15-8405, 5-min job. Clears light instantly.
Electrical Wiring and Fuse Problems for GMC Acadia AC Blinking
Chafed wires under the dash or corroded grounds make the AC light blink by dropping voltage to the clutch coil.
Acadia 2008-2012 models have harness rub-through at the firewall grommet from engine movement—a silent killer I’ve rewired weekly.
Fuse #10 (10A HVAC) blows from shorts; shops miss this, quoting ECM flashes at $300.
Voltage drop test: 12V at battery, 11V min at clutch. Fix with solder and heat shrink, not crimp connectors that fail again.
Common Fuse and Relay Locations
| Fuse/Relay | Location | Amp/Function | Fix |
|---|---|---|---|
| #10 | Underhood fuse block | 10A HVAC | Replace, check for short |
| HVAC Relay | Same block, pos 42 | Compressor clutch | Swap with horn relay to test |
| #5 | Left IP fuse block | 7.5A Blower | Inspect connector corrosion |
GMC Acadia AC Compressor Clutch or ECM Faults
Rare but real: seized clutch gap or ECM refusing commands due to code backlog.
2017+ Acadias with dual-zone controls glitch from software; TSB #PIP5577 calls for reflash.
Don’t let dealers swap the $1,200 compressor—test clutch air gap (0.015-0.059 inches) first with feeler gauge.
I’ve jumpered the clutch direct; spins free? Gap needs shim adjustment. Clears blink without full replacement.
Advanced Clutch Diagnostics
- Pull clutch connector, apply 12V direct—clicks and spins? ECM issue.
- Check gap at three points; adjust with shims if uneven.
- Ohms test coil: 3-5 ohms normal.
FAQ
Why does my GMC Acadia AC light blink but blows cold air sometimes?
Intermittent low pressure from minor leaks or switch cycling; monitor gauges during blinks for confirmation.
Can I drive with GMC Acadia AC light blinking?
Yes short-term, but fix soon—risks compressor burnout from oil starvation.
Is the AC light blink related to the check engine light on Acadia?
Sometimes; scan for P0532/P0533 codes tying HVAC to ECM faults.
How much refrigerant does a GMC Acadia hold?
2007-2016: 1.75 lbs R-134a; 2017+: 1.1 lbs R-1234yf—check sticker under hood.
Will resetting the battery fix Acadia AC blinking light?
Temporary for ECM glitches, but root cause (leak/sensor) returns in days.
In summary, GMC Acadia AC light blinking demands methodical diagnostics starting with pressures and codes—DIY 90% of fixes under $100, dodging dealer rip-offs.
Prioritize leaks, test electrically, and maintain yearly.
Your wallet and cool cabin will thank you; I’ve saved owners thousands repeating these steps.
