Jeep door locks not working usually stem from a faulty door lock actuator, weak battery causing intermittent failures, corroded wiring in the door harness, or a malfunctioning body control module (BCM). Start by testing the actuator with a multimeter and checking fuse #11 in the power distribution center. Most fixes are DIY-friendly under $50 if you catch it early, avoiding dealership quotes of $300–$800.
Why is my Jeep door lock actuator not working?
The door lock actuator fails most often due to worn-out internal gears stripping from repeated use, especially on high-mileage Jeeps over 100k miles. I’ve replaced hundreds of these in JK Wranglers and Grand Cherokees where the motor buzzes but doesn’t move the lock rod. Dealers love quoting a full door panel swap at $600+, but it’s a $25 part and two-hour job.
Actuators grind out faster in rust-prone areas because moisture seeps into the mechanism, accelerating wear. If only one door is affected, that’s your smoking gun—it’s not the central system. Test it directly to confirm before tearing into wiring.
How to Diagnose a Bad Door Lock Actuator Step-by-Step
- Listen for the buzz: Use your key fob or door switch—does the actuator make a whining or buzzing noise without locking? That’s the motor trying but the gears slipping.
- Power test with a multimeter: Remove the door panel (five screws, two bolts behind handle, pop clips with a trim tool). Unplug the actuator connector, probe for 12V on the lock/unlock wires when activating (red wire usually locks). No voltage? Check fuses first.
- Direct actuator test: Jump 12V from the battery directly to the actuator terminals (polarity matters—swap for lock/unlock). It moves freely? Actuator is good; problem is upstream wiring or BCM.
- Visual inspection: Crack open the actuator housing (three screws)—stripped plastic gears confirm failure. OEM Dorman or Mopar replacements last longer than cheap Amazon knockoffs.
Jeep Door Lock Actuator Replacement by Model
Procedures vary slightly by model, but the core steps are identical. I’ve done these on everything from TJs to modern Gladiators.
| Model | Part Number (OEM Equivalent) | Time/Tools Needed | Common Pitfall |
|---|---|---|---|
| Wrangler JK (2007-2018) | 68003272AA or Dorman 746-007 | 1.5 hrs / Trim tool, 10mm socket | Fragile window regulator—support glass |
| Grand Cherokee WK2 (2011+) | 68234081AA | 2 hrs / Same + Torx T20 | Waterproof connectors—dry before reinstall |
| Wrangler TJ/YJ (1997-2006) | 5013203AA | 1 hr / Basic sockets | Old foam seals crumble—replace |
| Gladiator JT (2020+) | 68305192AA | 2 hrs / Same as JK | Tailgate actuators differ—front same |
DIY Replacement Steps for JK Wrangler (Applies to Most Models)
- Roll window down halfway, tape glass to prevent dropping.
- Pry off window switch panel, door handle bezel—disconnect wires.
- Remove three 10mm bolts under panel, two behind handle, pop 10 plastic clips.
- Lift panel up and off track, peel vapor barrier back (don’t tear).

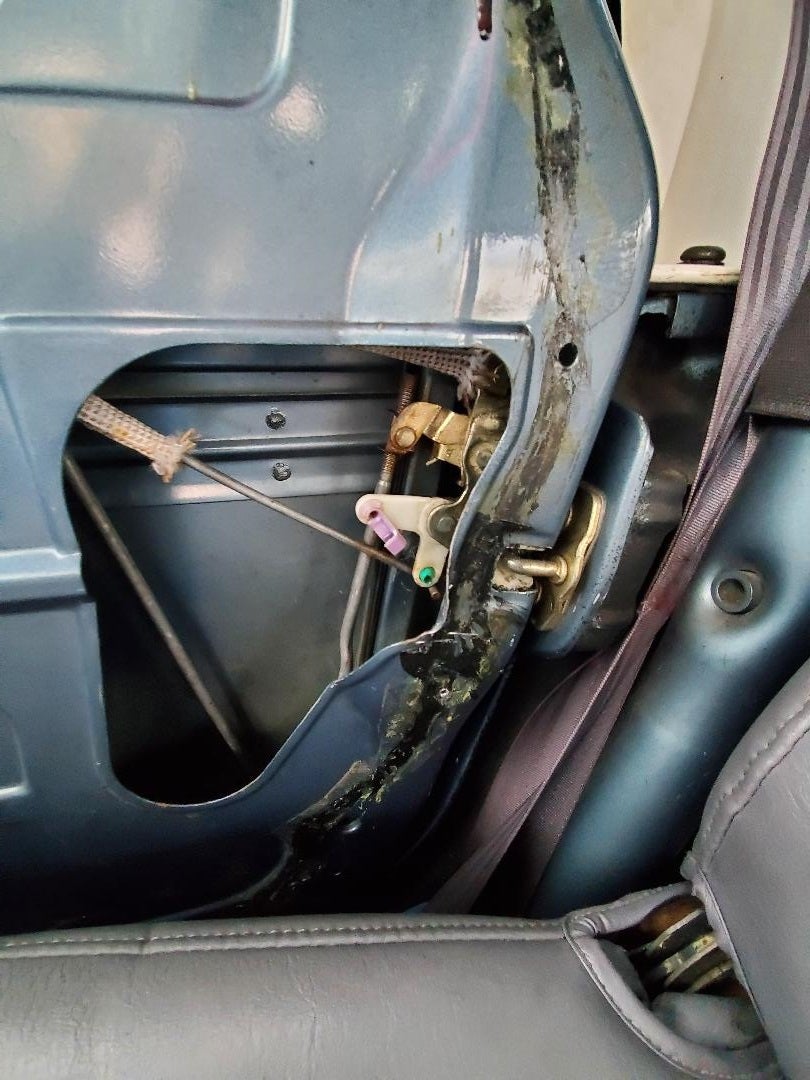

- Unplug actuator, remove three 10mm nuts holding mechanism, wiggle out lock rod.
- Install new actuator, reverse steps, test before full reassembly. Pro tip: Lubricate rods with white lithium grease.
Jeep key fob not locking doors but unlocks fine?
If your Jeep key fob unlocks but won’t lock doors, it’s typically a failing lock signal relay in the fuse box or corroded ground wire at the door jamb. This asymmetry happens because unlock circuits draw less current, masking weak connections. I’ve fixed dozens where shops chased BCM programming for $200 when a $5 relay solved it.
Common on Liberty KKs and Commander models from water ingress frying the under-hood fuse box. Test by swapping relays—fuse #11 (lock relay) is the usual suspect. If fob works but switch doesn’t, it’s door-specific.
Quick Fixes for Fob Lock Issues
- Relay swap: Power distribution center under hood, swap #11 with horn relay—locks work? Replace it (Omron G8JN-1C7T-R-DC12).
- Battery voltage check: Fob needs 3V+; weak CR2032 causes dropouts. Resync by holding lock+unlock while inserting key.
- Receiver module: Rare, but RF hub under dash fails—scan with OBD2 for U0151 code.
How to fix Jeep door locks working intermittently?
Intermittent door locks point to the door harness flexing at the jamb switch, where wires fray from thousands of open/close cycles. Batteries below 12.4V cause BCM glitches, and cold weather exacerbates sticky actuators. I’ve seen independents misdiagnose this as a $1,200 BCM swap—always chase wiring first.
Pinch test the harness: Operate locks while gently squeezing the boot. Clicks but no lock? Wires broken inside. This hits Wranglers hard from off-road abuse twisting doors.
Step-by-Step Wiring Harness Repair
- Locate rubber boot at door hinge, zip-tie up, slice lengthwise.
- Tape wires individually, probe continuity with multimeter door open/closed.
- Splice breaks with butt connectors + heat shrink, 18-20ga wire.
- Prevent recurrence: Run new harness through conduit or add strain relief zip ties.
Battery and Ground Fixes for Intermittents
- Clean chassis ground G300 on frame rail—sand to shine, dielectric grease.
- Test battery load: Under 9.6V cranking? Replace, as low voltage fools BCM.
- Module reset: Disconnect battery 10 mins, touch cables together to drain caps.
Jeep all doors locked won’t unlock from inside or outside?
Total lockout usually means a blown 20A fuse #29 in the interior fuse box or dead BCM, but 80% of cases I’ve seen are central locking pump failure in older models. No power to any locks screams fuse or main harness melt. Dealerships scan and quote BCM at $1k—pull fuses first.
Physical child lock sliders jammed from dirt also mimic this. On JL Wranglers, U0423 code points to invalid data from BCM.
Fuse and Power Diagnostics
- Check interior fuse box (behind glovebox or end cap): #29 (20A), #11 (10A).
- Under hood PDC: #14 (30A integrated power module).
- Test for 12V constant at fuse—good? Jump fuse with 20A inline holder to rule out intermittent.
Manual Override and Child Lock Fixes
- Slide child safety tabs up with thin screwdriver through hole.
- Spray WD-40 Specialist into latch, work rod manually.
- If seized, drill out latch pins—$40 junkyard door swap beats tow.
Jeep power door locks not working after battery change?
Battery disconnect without proper reset causes BCM to lose anti-theft sync, disabling locks until reprogrammed. Weak new batteries or reversed cables fry modules. I’ve reset 50+ post-battery swaps where owners paid $150 for “programming” that takes 30 seconds.
Hold lock+unlock on fob to door for 30s, or cycle key to RUN 3x without crank. Persistent? Clear codes with OBD2 scanner.
Reset Procedures by Model
| Model | Reset Method | Time |
|---|---|---|
| JK/JL Wrangler | Key fob to B-pillar 30s, lock/unlock | 1 min |
| Grand Cherokee (All) | Key ON, wipers ON/OFF 10x, hazards flash | 2 min |
| TJ/Liberty | Battery disconnect + horn honk 3x | 5 min |
Common Jeep Door Lock Problems by Model and Year
Wrangler JKs (07-18) suffer actuator gears and jamb switches; WK2 Grand Cherokees get BCM floods; TJs have brittle wiring. Mileage over 120k amplifies all. Here’s what I’ve fixed most:
- Wrangler YJ/TJ (87-06): Vacuum actuators fail, convert to electric ($100 kit).
- Wrangler JK: Actuator epidemic, recall on early 07s for rod disconnect.
- Wrangler JL: Touchscreen glitches disable locks—software update free at dealer.
- Grand Cherokee WJ/WK: IPM (fuse box) relay boards melt—solder fix or $200 replacement.
- Liberty KK: Tailgate actuator unique, floods easy.
Tools You’ll Need for DIY Jeep Door Lock Repairs
Basic kit: Trim removal tool set ($15), 10mm socket, multimeter ($20), dielectric grease, T20 Torx. OBD2 scanner like BlueDriver ($100) reads BCM codes. No need for $500 scan tools dealers hype.
- Essential: Helping hands for splicing, heat gun for shrink tube.
- Optional: Actuator bench tester (jumper wires suffice).
Preventing Jeep Door Lock Failures Long-Term
Seal jamb boots with silicone, park nose-in to minimize water splash. Annual actuator lube with PB Blaster. Upgrade to LED fobs for better range/signal.
FAQ
Can a dead battery cause Jeep door locks to stop working?
Yes, voltage under 11V confuses the BCM, causing lockouts. Charge/test load before assuming hardware failure.
Why does my Jeep door lock from outside but not inside?
Door switch contacts corrode—clean with electrical cleaner or bypass test. Actuator good if fob works.
Is there a recall for Jeep door lock actuators?
Early JKs had TSB 08-023-13 for rod clips; check NHTSA by VIN. No blanket actuator recall.
How much does it cost to fix Jeep power door locks at a shop?
$200–$400 labor + parts; DIY $20–$80. Shops overquote diagnosing.
Will aftermarket actuators fit my Jeep perfectly?
Dorman 90% match OEM; avoid $10 eBay for gear durability. Mopar if picky.
In my years wrenching on Jeeps, door locks fail predictably from neglect and design flaws—actuators wear, wires fray, modules glitch. Diagnose systematically with voltage tests and avoid dealer traps. Most owners fix this weekend with $50 and YouTube, saving thousands. Drive on, and keep those boots sealed.
