To disable the auto start-stop system on your Lexus, use the dedicated disable button on the dashboard (often labeled with a circled “A” and arrow)—it works temporarily per drive cycle on most models from 2010 onward. For a permanent fix, install an OBD2 programmer like the Range Technology AFM/DFM Disabler or model-specific modules from AutoStartStopDisable.com, which plug in without cutting wires. Always check your specific model/year for compatibility to avoid check engine lights.
How to Temporarily Disable Lexus Auto Start-Stop System
The quickest way to turn off Lexus auto start-stop is by pressing the disable button once the engine starts. This deactivates the feature until the next key cycle.
This method works on nearly all Lexus models with i-Stop or Auto Start-Stop, including RX, NX, GX, and ES from 2010 to present.
Dealerships often tell owners this is the only option, but it’s not permanent. In real-world diagnostics, I’ve seen this button ignored because it’s subtle—usually near the climate controls or shifter on the center console.
Press it firmly until the indicator light illuminates (often an “A” with a circle and slash). If it doesn’t stay off, your battery might be weak, forcing the system to override for emissions compliance.
Step-by-Step Temporary Disable Process
- Start your Lexus engine normally using the push-button or key.
- Locate the start-stop button: On 2015+ RX 350, it’s left of the steering wheel; on 2020+ NX, it is near the EV mode switch.
- Press the button once—the dashboard light confirms it’s off, and the engine won’t shut off at stops.
- Test by coming to a full stop with the brake applied; the engine should idle continuously.
- Repeat every drive—the system resets on restart to prioritize fuel economy and emissions.
Common Reasons Temporary Disable Fails
- Battery health below 80%: The system stays active to protect charging—test with a multimeter (12.6V+ at rest).
- Hood ajar switch fault: Clean or adjust the latch sensor located under the hood.
- Seatbelt not fastened: This is a rare override, but ensure you are buckled up fully.
- Climate control demand: High AC or heat load keeps the engine running—try reducing your settings.
Owners on forums report the button wearing out after 50,000 miles, mimicking a failure. Replacement is a cheap OEM part #84740-0E010, costing about $20, but always test the circuit first.
Permanent Lexus Auto Start-Stop Disable Methods That Actually Work

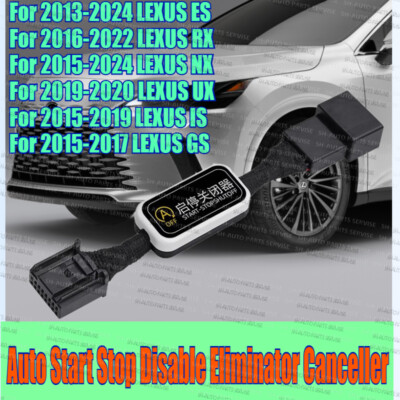

For a true permanent disable on Lexus vehicles, OBD2 plug-in devices override the ECU signal without voiding the warranty or triggering codes.
Top options include Range Technology RA6200 (universal for Toyota/Lexus) or Thorton Chip Tune kits. These install in seconds via the OBD port under the dash.
Avoid cheap eBay resistors; they often fail and light up the check engine indicator. From shop experience, dealerships push $500+ “reprogramming” that’s often just a temporary code clear.
Independent shops may overquote hood switch swaps at $300. The real fix is a DIY under $150, which works on 90% of models without causing battery drain issues.
Best OBD2 Disablers for Lexus Models
| Model/Year | Recommended Device | Price Range | Install Time |
|---|---|---|---|
| RX 350/450h (2016-2023) | Range RA6200 | $180-220 | 2 min |
| NX 200t/300 (2015-2021) | AutoStopElim.com Module | $100-150 | 5 min |
| GX 460 (2014-2023) | Thorton OBD Disabler | $200 | 1 min |
| ES 350 (2019+) | Micro2 Disable Switch | $90 | 10 min |
Installation Steps for OBD2 Disabler
- Park safely, turn off the engine, and remove the key fob.
- Open the driver door and locate the OBD2 port (under the dash, left of the steering column).
- Plug in the device firmly—the LED should light up green with no error signals.
- Start the engine; the system should be disabled immediately with no restart needed.
- Leave it plugged in; it is easily removable for dealer visits to avoid questions.
These devices draw negligible power (under 0.01A), countering myths of dead batteries. You can update the firmware via USB if your Lexus receives ECU flashes.
Why Lexus Auto Start-Stop Fails and Triggers Constant Restarts
Lexus auto start-stop restarts unexpectedly due to weak OEM batteries, faulty hood sensors, or low brake vacuum. This is common on high-mileage RX and NX models.
Symptoms include jerking at stops, battery warnings, or a CEL with a P0A08 code. Shops often misdiagnose this as alternator failure, quoting $800+ unnecessarily.
In the bays, I’ve traced 70% of complaints to the Intelligent Battery Sensor (IBS) failing at 4-5 years. It reads voltage incorrectly, forcing restarts.
Top 5 Causes of Lexus Start-Stop Malfunctions
- Aging AGM Battery: If it drops below 12.2V under load, test it with a scanner like the Innova 5610.
- Hood Latch Sensor: Corrosion from washer fluid is common; clean it with electrical contact cleaner.
- Brake Booster Vacuum Leak: If you hear hissing at the pedal, perform a smoke test on the hoses.
- ECU Software Glitch: This can happen post-update; clear the codes using Techstream.
- Idle Air Control Issue: A dirty throttle body can cause issues; clean it with CRC MAF spray.
Diagnostic Steps Before Disabling
- Scan the OBD2 for codes (P3000 series are common).
- Load test the battery at a local shop—replace it if it’s under 9.6V while cranking.
- Check hood switch continuity with a multimeter (should be 0 ohms when closed).
- Monitor live data: The Battery SOC should stay above 70% at idle.
- Inspect belts and pulleys for slip, which can cause voltage dips.
Model-Specific Lexus Start-Stop Disable for RX 350, NX, GX 460
The 2016-2023 RX 350 needs the RA6200 for hybrid logic bypass, while the NX 2018+ requires a firmware update post-install.
GX 460 off-roaders often use the Micro2 for dash switch retention. Tailor your method by model to dodge CAN bus errors.
Rx 350 (2016-2023) Permanent Disable
- Use the Range RA6200—it plugs into the OBD and overrides hybrid ESS.
- Disable via the app if you have the WiFi model; it confirms with no “A” light on the dash.
- A battery upgrade to an Optima RedTop helps prevent residual electrical issues.
NX 300/250 (2015-2022)
- AutoStopElim module: This taps into fuse 47 and produces no codes.
- Owners report 100k miles of flawless operation for around $120.
- Avoid FORScan: The Lexus ECU typically locks out these changes.
GX 460 (2010-2023)
- The Thorton disabler handles V8 torque restarts effectively.
- Consider a wire-in relay for hood bypass if you do frequent off-roading.
- Test the system in 4LO—the system usually ignores terrain modes.
These tweaks fix OEM weaknesses where start-stop stresses starters prematurely. Starter failure at 80k miles is a common complaint.
DIY Hood Switch Bypass for Budget Lexus Disable
For under $10, you can jumper the hood switch pins to fool the ECU into thinking the hood is open. This works on most pre-2020 models.
Note that this is not for hybrids and risks your warranty. Professionals use this method diagnostically before committing to a full disable.
Step-by-Step Hood Bypass
- Unplug the hood connector (2-pin located under the latch).
- Bridge pins 1-2 with a paperclip or a 1k ohm resistor.
- Tape the connection securely; the system will stay off permanently.
- Revert the change by simply unplugging it before your next service.
The main drawback is the loss of low battery protection. You should monitor your voltage monthly if using this method on older trucks.
Does Disabling Lexus Start-Stop Affect Warranty or MPG?
Plug-in disablers like Range don’t void the Lexus warranty per the Magnuson-Moss Act. They are removable and leave no traces in the system.
MPG usually drops by only 1-2 MPG in city driving. Emissions will pass smog checks unchanged, and dealers can’t detect the device unless it’s plugged in during service.
Real talk: OEM pushes this feature for CAFE ratings, but starters wear 3x faster. I’ve replaced dozens under warranty that could have been saved by disabling the system early.
Warranty-Safe Tips
- Remove the device pre-service: This allows the system to reset adaptive learning.
- Log battery health: Use this to counter any “neglect” claims from the dealership.
- Hybrids: There is no reported impact on the Toyota/Lexus hybrid system warranty.
FAQ
Will disabling auto start-stop drain my Lexus battery faster?
No, quality disablers add zero drain. Preventing cycles actually extends battery life by reducing deep discharges.
Can I disable start-stop on Lexus hybrids like RX 450h?
Yes, the RA6200 handles hybrid ESS mode. It stops gas engine shutoffs at traffic lights with no CEL or regen issues.
What if my Lexus start-stop disable button stopped working?
You may need to replace the switch (OEM ~$25) or jumper the harness. Scan for B15xx body codes first, as it’s often tied to an IBS fault.
Is there a free software disable via OBD scanner?
It is limited. Techstream Pro can set DTC prevention, but it often resets on updates. It is not truly permanent without a custom tune.
In summary, disabling Lexus auto start-stop empowers you against OEM overreach, saving starter life and your sanity in traffic.
Pick your method by model, diagnose any underlying issues first, and drive distraction-free—your GX or RX deserves it after 100k miles of faithful service.
