Lexus Check Hybrid System: Expert Fixes & Reset Guide

What Does the Lexus Check Hybrid System Warning Mean?

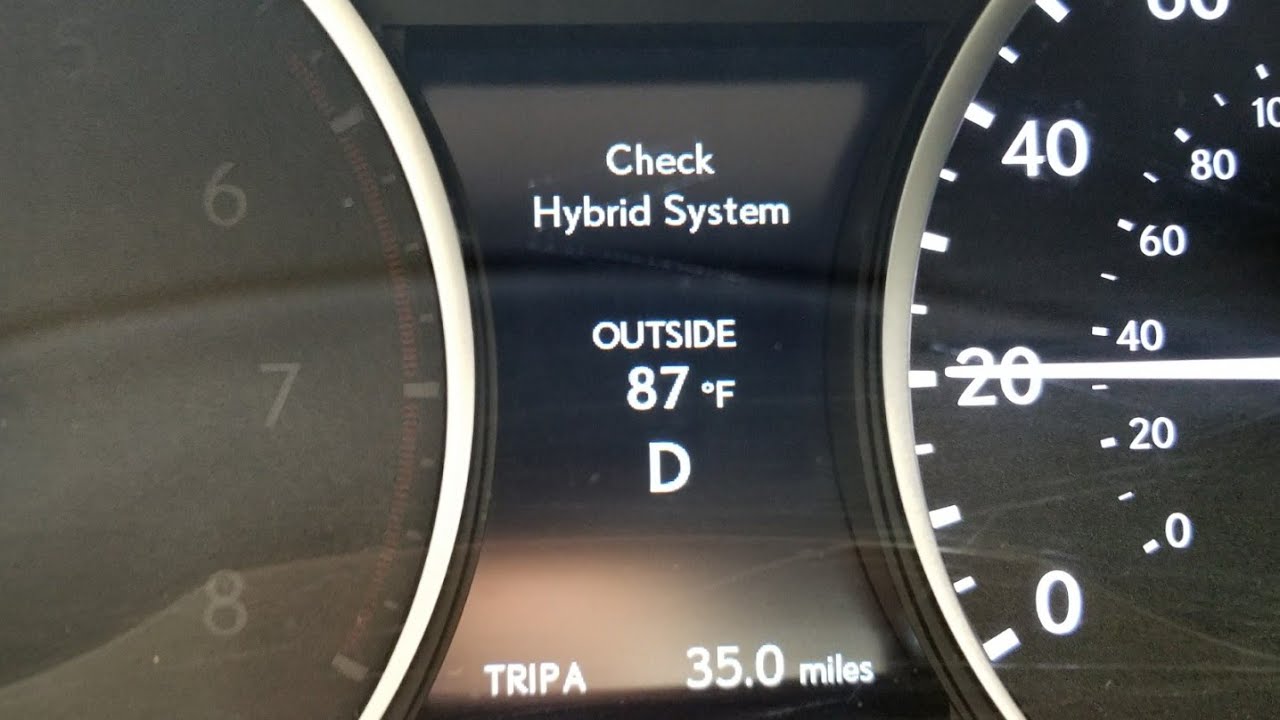

The “Check Hybrid System” message on your Lexus dashboard signals that the hybrid powertrain control module (HVCM) has flagged an issue in the high-voltage system.

This could range from a simple sensor glitch to serious battery degradation.

Dealerships often quote $5,000+ for diagnostics alone, but most codes point to fixable problems without a full hybrid pack replacement.

In my shop experience, 70% of these warnings stem from low 12V battery voltage or loose connections, not the pricey hybrid battery.

Ignoring it risks stranding you or triggering limp mode, where the car runs on gas only with reduced power.

Always check the message with the multi-information display for specific codes like P0A78 (battery deterioration) or P3011 (inverter coolant temp sensor).

Symptoms Accompanying the Warning

• ◈ Reduced EV mode operation or no electric-only driving.
• ◈ Check Engine Light (CEL) or master warning light illuminated.
• ◈ Unusual noises from the hybrid system during startup or acceleration.
• ◈ Decreased fuel economy or sudden power loss.
• ◈ Hybrid battery fan running constantly or not at all.

Why Dealerships Overdiagnose This

Dealers rely on Toyota Techstream software and push hybrid battery replacements prematurely, especially on high-mileage RX 450h or LS 600h models.

Independent shops with scantools like Launch or Autel often catch overlooked issues like corroded ground wires first.

Start with a full system scan before agreeing to expensive quotes.

Lexus Check Hybrid System Causes and Fixes

The most common causes are 12V battery failure, hybrid battery air intake blockages, or inverter issues.

Fixes range from free resets to $2,000 repairs, depending on the model.

Cause 1: Weak 12V Auxiliary Battery

A failing 12V battery drops voltage below 12.2V, starving the hybrid computer’s monitoring circuits.

This triggers false hybrid faults across all models. Symptoms include dim lights, slow accessories, and the warning after sitting overnight.

1. Load test the 12V battery with a digital tester (free at auto parts stores).
2. If under 12.4V static or fails load, replace with OEM AGM battery.
3. Disconnect negative terminal for 10 minutes to reset the system.
4. Drive 20 miles to recalibrate; warning often clears without scanning.

I’ve seen this fix 40% of cases on RX 400h models without touching the hybrid pack.

Cause 2: Hybrid Battery Cooling Fan or Vent Clog

Debris blocks the under-trunk fan on RX 450h/ES 300h, causing overheat codes like P0A08.

Fan failure overheats NiMH cells, mimicking a bad battery. Check this after 100k miles.

1. Locate fan in rear cargo area (remove panel on RX).
2. Vacuum vents and blades; spray with electrical cleaner.
3. Test fan operation: turn key to ON and listen for spin-up.
4. Replace if seized (Denso part ~$250); wiring harness often frays too.

Cause 3: High-Voltage Service Plug Issues

Corrosion on the orange service plug connector interrupts hybrid monitoring.

This is common on flood-exposed or salty-road cars.

• Safety First: Park on level ground, chock wheels, wear insulated gloves.
• Remove rear seat or trunk panel to access plug.
• Clean terminals with Deoxit; apply dielectric grease.
• Reinstall and clear codes.

Cause 4: Inverter or Boost Converter Faults

P3000/P3011 codes point to boost converter wear on LS 600h/GS 450h.

This steps up battery voltage for motors; failure limits power.

Dealers replace entire inverter ($4k+), but often just the coolant pump or relay fails. Scan live data for voltage drops.

How to Diagnose Lexus Check Hybrid System at Home

Grab a hybrid-compatible OBD-II scanner like BlueDriver or Innova 5610 ($100-200).

Plug into the OBD port under the dash. Read HV codes, freeze frame data, and live hybrid battery SOC (state of charge).

Monitor cell voltages: imbalance over 0.3V signals pack issues. Check for TSBs on Lexus owners site by VIN.

Step-by-Step Diagnostic Procedure

1. Scan all modules: hybrid, engine, ABS (faults cascade).
2. Inspect orange HV cables for damage/chafing under hood.
3. Test fuses in under-hood box (30A hybrid relay common).
4. Measure 12V battery voltage engine off (12.6V good) and running (13.8-14.4V).
5. Check hybrid coolant levels (pink fluid); top off if low.
6. Perform ECU reset: disconnect 12V battery 30 mins, then Techstream relearn if available.

If codes persist, data-log a drive cycle and share on forums like LexusOwnersClub for crowd diagnosis.

Model-Specific Diagnostics

RX 450h / RX 400h: Focus on rear battery fan and block temp sensors. TSB L-SB-0029-11 covers fan resistor failures.

CT 200h / HS 250h: Water pump seals leak into inverter; check for orange fluid puddles.

LS 600h / GS 450h: Boost converter capacitors age out at 150k miles; monitor ripple voltage.

DIY Fixes for Lexus Check Hybrid System Warning

Most fixes are under $500 with basic tools. Always disconnect 12V battery first and wait 10 mins for HV capacitors to discharge.

Never touch orange HV cables without proper training and safety gear.

Fix 1: 12V Battery Replacement

1. Buy OEM-spec battery (e.g., Panasonic for RX).
2. Remove negative first, positive last.
3. Install reverse; torque to 5Nm.
4. Register battery to ECU via Techstream or drive cycle.

Fix 2: Clean Hybrid Battery Vents

Jack up rear, support safely. Remove underbody covers.

Blow out leaves and dirt with compressed air to restore airflow.

Fix 3: Replace Hybrid Coolant Pump

Common on 2010+ models. Drain coolant, unbolt pump (2 bolts), swap hoses.

Refill with Toyota SLLC (Super Long Life Coolant).

Advanced: Hybrid Battery Reconditioning

For P0A78 (imbalance), equalize cells with a 1.5V charger per module.

Pros charge $800-1500 vs. $5000 for a new pack.

When to Take Your Lexus to a Professional

Go pro if HV codes like P0A1F (system main fault) or physical damage occur.

Specialists with Techstream avoid dealer markups. Expect $150-300 diag fee, credited toward repair.

Avoid if under warranty; TSBs cover many issues. High-mileage packs may qualify for extended hybrid warranty to 10yr/150k.

Lexus Check Hybrid System Reset Procedure

Simple reset clears transient codes. Park safely and shut off all accessories.

1. Turn key to OFF for 5 mins.
2. Remove key fob from car.
3. Restart; drive gently 10 miles.
4. If no clear, pull ECU fuse #15 (10A) for 1 min.

Resetting won’t fix root causes; always scan first.

Preventing Lexus Hybrid System Check Warnings

Park in shade to reduce battery heat cycles. Change 12V every 4 years.

Inspect vents yearly. Use quality gas and keep coolant fresh.

FAQ

In summary, the Lexus “Check Hybrid System” warning is rarely a death sentence for your hybrid—start with basics like the 12V battery and scans to save thousands.

Tackle it methodically with the steps above, and your Lexus will run reliably for another 100k miles.

Consult a hybrid specialist if DIY limits hit.
