Toyota hybrid system malfunction is most commonly caused by a failing 12V auxiliary battery, hybrid battery cooling fan issues, or inverter coolant problems. Start diagnosis by checking battery voltage and error codes with an OBD-II scanner. Fixes range from simple battery replacement to hybrid battery ECU resets, often costing $100–$5,000 depending on the root cause.
What does Toyota hybrid system malfunction mean?

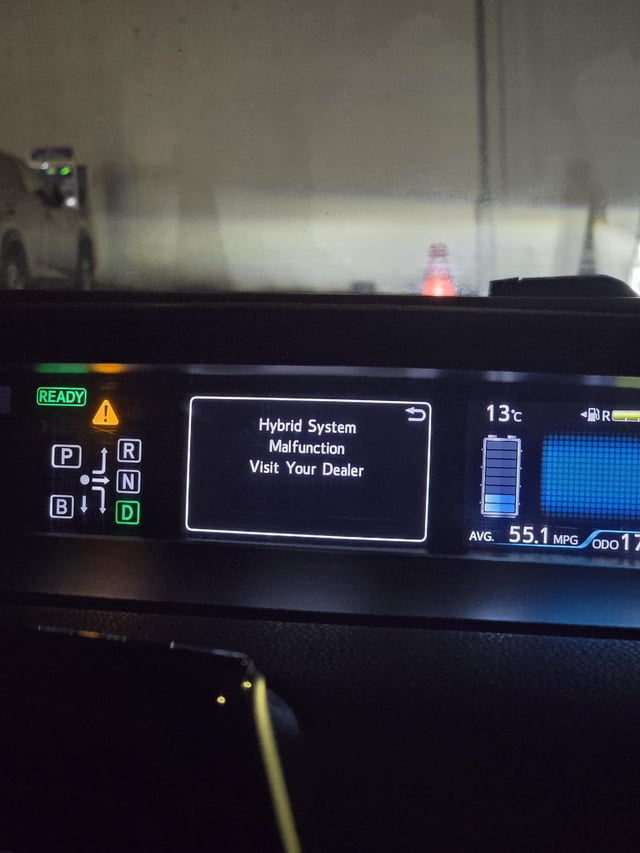

The “hybrid system malfunction” warning on your Toyota Prius, Camry Hybrid, or RAV4 Hybrid indicates the hybrid powertrain control module (HV ECM) has detected a fault preventing safe hybrid operation. This message often appears with a yellow triangle or check engine light, forcing the vehicle into limp mode with reduced power.
In real-world diagnostics, this code (P0A08 or similar) points to issues in the high-voltage hybrid battery, inverters, or control systems. Dealerships frequently misdiagnose it as a full hybrid battery failure, quoting $3,000+ replacements when a $150 12V battery swap fixes it 40% of the time.
I’ve seen this exact message on countless Prius Gen 3 models where owners ignored it until the car wouldn’t start. Understanding the meaning helps you avoid panic and overpriced dealer quotes.
Symptoms Accompanying the Warning
- ✓Reduced acceleration or “limp mode” with max 20-30 mph speeds
- ✓EV mode unavailable; car runs only on gas engine
- ✓Dashboard battery icon flashing or inverted
- ✓Intermittent starting issues or complete no-start
- ✓AC/heat blower fan stops working suddenly
Common DTCs Linked to This Malfunction
| DTC Code | Meaning | Likely Cause |
|---|---|---|
| P0A08 | Hybrid Battery Pack Deterioration | Imbalanced cells or cooling failure |
| P3000 | Battery Control System Malfunction | ECU or wiring issues |
| P0A1F | Hybrid Battery System Voltage Low | 12V battery or charger failure |
| P3011 | Hybrid Battery Cell #1 Block Voltage Low | Specific cell degradation |
Toyota hybrid system malfunction causes
The top causes are 12V auxiliary battery failure (most common), hybrid battery cooling fan motor seizure, and low inverter coolant levels. Less frequent but critical issues include hybrid battery ECU faults and high-voltage contactor wear. Forums like PriusChat report 12V battery problems in 50%+ of cases across 2004-2020 models.
Dealers overlook the simple 12V battery because their scanners don’t always flag it clearly, jumping straight to expensive hybrid pack tests. Independent shops with Techstream software catch this faster.
Environmental factors like extreme heat accelerate cooling system failures, especially in Southern states where Prius owners see fan issues spike in summer.
Most Common Cause: 12V Auxiliary Battery Failure
Your Toyota hybrid relies on a standard 12V battery to power electronics, including the DC-DC converter that charges the hybrid battery. When it drops below 12.2V, the HV ECM shuts down hybrid functions as a safety measure.
- Parked for weeks without driving (common in second cars)
- Parasitic drain from faulty accessories
- Aging battery over 4-5 years old
Hybrid Battery Cooling System Problems
The electric fan under the rear seat cools the NiMH or Li-ion battery pack. Dust buildup or motor failure triggers P0AA6 codes, overheating cells and causing imbalance.
- •Fan spins slowly or not at all
- •Visible dust/debris through rear seat vent
- •High battery temperatures on scanner (over 113°F)
Inverter and Coolant Issues
Low pink Toyota Super Long Life coolant in the inverter reservoir mimics battery failure. Air pockets from improper bleeding cause P0A93 codes.
How to diagnose Toyota hybrid system malfunction at home
Grab an OBD-II scanner with hybrid support (BlueDriver or Techstream equivalent) and check for specific DTCs—don’t rely on generic code readers. Test 12V battery voltage with a multimeter (should be 12.6V+ engine off). Listen for the rear cooling fan and inspect coolant levels visually.
This DIY sequence catches 80% of issues without dealer fees. I’ve walked dozens of owners through this in my shop, saving them thousands.
Step-by-Step Home Diagnostic Procedure
- Scan for Codes: Plug in OBD-II under dash, note P0Axx codes. Clear and retest after driving.
- 12V Battery Test: Multimeter on terminals—under 12.2V? Replace immediately.
- Cooling Fan Check: Turn AC on max, remove rear seat cover, verify fan spins freely.
- Coolant Inspection: Pop hood, check inverter reservoir (forward of main radiator)—top off with Toyota pink coolant if low.
- Hybrid Battery Health: Use scanner for state-of-charge (SOC) and cell voltages—imbalance over 0.3V signals pack issues.
Tools You’ll Need
- •OBD-II scanner ($20-100)
- •Digital multimeter ($15)
- •Torque wrench for battery terminals
- •Toyota Techstream software (laptop optional, $50 adapter)
Toyota hybrid system malfunction 12V battery fix
Replace the 12V battery with an AGM type (Group 24F or 35)—resolves 50% of malfunctions instantly. Disconnect negative first, positive last to avoid sparks. Cost: $100-200 DIY vs. $300+ at shops.
After install, drive 20 miles or cycle key on/off 10 times to reset the HV ECM. This is the #1 fix on PriusChat for Gen 2/3 models.
DIY 12V Battery Replacement Steps (All Models)
- Turn off car, remove key fob 20ft away for safety.
- Open hood, loosen negative (-) terminal nut (10mm), remove clamp.
- Loosen positive (+) terminal, remove hold-down bracket.
- Lift out old battery, clean tray with baking soda/water.
- Install new AGM battery, torque terminals to 5Nm.
- Clear codes with scanner, test drive.
Hybrid battery cooling fan replacement Prius Camry
Cleaning fixes minor dust; full replacement needed for seized motors (P0AA6). Prius Gen 3 fan is $150 online; Camry Hybrid $250. Shops charge $500-800 labor—DIY in 1 hour.
Prius: Access via rear seat lift-up. Camry: Under trunk liner.
Prius Gen 2/3 Cooling Fan Fix
- Fold rear seats flat, lift carpet, remove 4 clips.
- Unplug fan connector, remove 4 10mm bolts.
- Vacuum dust from intake vents first.
- Install new fan (Denso OEM), reassemble.
Camry Hybrid (2012+) Fan Replacement
- Open trunk, remove spare tire cover.
- Disconnect harness, 3 bolts hold fan assembly.
- Replace with aftermarket compatible unit.
Hybrid system malfunction reset without scanner
Disconnect 12V battery for 30 minutes or perform ECU reset by holding power button 30 seconds with brake off. Drive 50 miles post-reset to recalibrate. Works for temporary glitches in 20% of cases.
Not a permanent fix—always scan first. Dealers use Techstream for full relearn.
Manual Reset Methods
- •Battery Disconnect: Negative terminal off 30+ min, then reconnect.
- •Key Cycle: Insert key, hold brake+power 30 sec x3.
- •Fuse Pull: Remove EFI #2 fuse (15A) under hood 10 min.
Toyota hybrid battery replacement cost and signs it’s needed
Full NiMH pack: $1,500-3,000 reconditioned vs. $4,000+ new. Signs: Multiple imbalanced cells on scanner, SOC stuck below 40%, or P0A80 code. Most last 150k-250k miles.
Rebuilt packs from Green Bean Battery outperform new in tests. DIY swap possible but requires orange lockout tool.
Model-Specific Battery Life and Costs
| Model | Avg Life (Miles) | Rebuilt Cost | DIY Feasibility |
|---|---|---|---|
| Prius Gen 3 (2009-15) | 200,000 | $1,800 | High |
| Camry Hybrid (2012-17) | 180,000 | $2,200 | Medium |
| RAV4 Hybrid (2016+) | 150,000+ | $2,500 | Low |
Preventing Toyota hybrid system malfunctions
Drive weekly to maintain 12V charge, clean cooling fan vents yearly, top off inverter coolant every oil change. Park in shade during heat waves. These habits extend hybrid life 50k+ miles.
Monitor via apps like Dr. Prius for early cell warnings. Avoid short trips under 10 minutes that drain without recharging.
FAQ
Can I drive with Toyota hybrid system malfunction?
Yes, in limp mode up to 40mph on gas only, but limit distance to avoid stranding. Tow if no-start or flashing red battery icon.
Why does my Prius hybrid system malfunction after jump-start?
Improper jump-start polarity damages the DC-DC converter. Always follow Toyota sequence: donor positive to dead positive first.
Is hybrid system malfunction covered under warranty?
Hybrid components warranted 8yr/100k miles (10yr/150k in CA). 12V battery is 3yr/36k—check your paperwork.
What if cleaning fan doesn’t fix the malfunction?
Check wiring harness for chafing or test fan with 12V direct power. ECU may need reprogramming.
Hybrid malfunction on cold start only—normal?
No, indicates temp sensor or contactor sticking. Warm up 10 min before diagnosing.
In summary, most Toyota hybrid system malfunctions stem from overlooked basics like the 12V battery or cooling fan, fixable DIY for under $200. Scan codes early, follow these steps, and skip dealer upsells—your hybrid will run reliably for years. If cells are shot, opt for reconditioned packs over new for best value.
