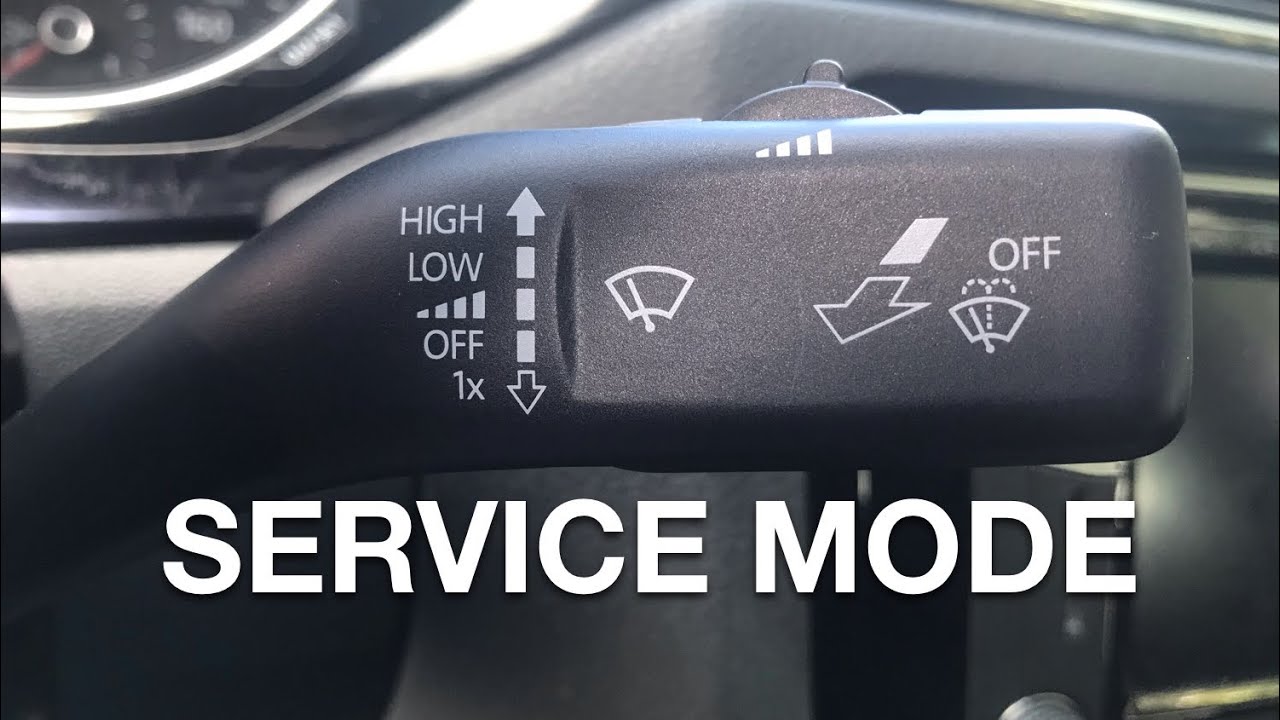

To enter Volkswagen wiper service mode, turn the ignition on, press and hold the wiper stalk button for 3-5 seconds until the blades park in the service position at the bottom of the windshield.
How to Activate Volkswagen Wiper Service Mode Step by Step
The wiper service mode, also called service position or parking position, lifts the wiper arms away from the windshield for safe blade replacement or maintenance.
This prevents scratching the glass and allows easy access without fighting stiff arms. Dealerships often charge $50-100 just to enter this mode before a simple blade swap.
Most VW models from 2000 onward, including Golf, Jetta, Passat, Tiguan, and newer Atlas, use the same activation method.
It works on both rain-sensing and standard wiper systems. If your model has adaptive wipers, the process remains identical but confirm via the owner’s manual for any firmware quirks.
Step-by-Step Activation for MK7 Golf and Jetta (2015+)
- Ensure the vehicle is in Park (automatic) or Neutral with parking brake on (manual).
- Turn the ignition to ON position without starting the engine.
- Move the wiper stalk to the OFF position if blades are running.
- Press and hold the wiper control button (the one that triggers intermittent or wash) for 3-5 seconds.
- The blades will cycle once or twice, then park vertically at the base of the windshield in service position.
- To exit, turn ignition OFF or cycle the wiper stalk to mist/wash and back to OFF.
Service Mode for Older Models Like MK4-MK6 Golf/Passat (2000-2014)
- Ignition ON, wipers OFF.
- Hold the wiper stalk’s end-push button for 5-10 seconds—blades may jitter before parking.
- On some B5/B6 Passats, pull the stalk down to the service wipe position first, then hold button.
- Exit by ignition OFF or wiper cycle.
Pro tip from years of shop diagnostics: If it doesn’t engage, check fuse #18 (wiper motor) or scan for DTCs like B10A00 (wiper park switch error).
Dealerships overlook this and quote $800+ for “wiper module replacement.”
Volkswagen Wiper Service Mode Not Working Common Fixes
If service mode fails to activate, it’s rarely the motor—usually a cheap sensor or wiring issue shops misdiagnose as a full arm assembly failure.
Expect DIY fixes under $20 versus dealer quotes of $400+. Test in this order to avoid unnecessary parts swaps.
Cause 1: Faulty Wiper Park Switch
The park switch signals when blades reach home position; it fails from water intrusion or age.
Symptoms include blades not parking correctly or service mode ignoring input. VW Tiguans (2018+) and Jettas show this most due to poor cowl drain design.
- DIY Test: Enter service mode; if blades stop midway, switch is bad.
- Fix Steps:
- Remove wiper arms (see below).
- Unclip motor cover under cowl.
- Test switch continuity with multimeter (0-5k ohms closed).
- Replace switch ($15 OEM part #1J0955559A) or solder new contacts.
Cause 2: Blown Fuse or Relay
Fuse #18 (15A) or relay K3 blows from shorted washer pump or overload. Common in salty winter regions on Golfs.
| Fuse Location | Model | Fix |
|---|---|---|
| Under hood box, #18 | Golf/Jetta MK6+ | Pull/replace 15A fuse |
| Dash panel, #9 | Passat B6/B7 | Check with tester |
| Relay K3 slot 2 | Tiguan/Atlas | Swap with horn relay |
Cause 3: CAN Bus or Module Fault
Newer VWs (MQB platform) tie wipers to BCM; scan with VCDS/OBDeleven for U111300 (communication error). Shops push $1200 BCM flash—unneeded.
- Disconnect battery 10 mins to reset.
- Clear codes, retest service mode.
How to Remove VW Wiper Arms in Service Mode Without Breaking Them
Wiper arms seize from corrosion; forcing them snaps the spline, leading to $200+ OEM replacements.
Always use service mode first—blades lift for torque wrench access. This saves the 17mm nut from rounding off.
Tools needed: 17mm socket, torque wrench (20Nm reassembly), penetrating oil, flathead screwdriver.
Universal VW Wiper Arm Removal Steps
- Activate service mode—arms park upright.
- Spray penetrating oil on nut and spline base; wait 10 mins.
- Mark arm position with paint pen for reinstall.
- 17mm socket on nut; steady arm with pliers if seized (pad jaws).
- Apply 50-100 ft-lbs counterclockwise—use breaker bar if needed.
- Pry arm straight up/off spline; wiggle don’t yank.
- For driver side (longer arm), lift cowl panel clips first for clearance.
Model-Specific Tips
- MK7+ Golf/Tiguan: Arms have plastic caps—pry gently. Torque to 18Nm.
- B8 Passat: Heated arms; unplug connector before removal.
- Atlas (2018+): Rain sensor blocks; remove A-pillar trim partially.
- MK4 Golf: Stubborn nuts—heat with torch briefly after oil.
Reinstall in reverse; improper torque causes wind lift-off. Seen countless stripped splines from YouTube “quick hacks.”
Why VW Wiper Blades Fail Prematurely and Service Mode Blade Replacement
VW’s OEM rubber degrades in 6-12 months from UV/ozone; aftermarket Bosch last 2x longer.
Service mode makes swaps 5 minutes flat—no arm removal needed unless blades are ripped.
Blade Replacement in Service Mode
- Service mode on—blades up.
- Lift arm fully; pinch blade tab to slide off.
- Match new blade (21″/19″ driver/passenger most models).
- Slide on until click; test wipe.
- Exit mode, clean windshield with IPA.
Upgrade to beam-style for AQ winter; avoid frame blades that ice up. Dealers push $60 OEM sets—DIY $25.
Common VW Wiper Linkage and Motor Issues During Service Mode Access
Rusted linkages snap under cowl during access; motors burn out from binding.
Independent shops replace full assemblies ($500); DIY pivot repairs save 80%.
Diagnosing Bad Linkage
- Service mode: Blades hesitate or stop mid-cycle.
- Remove cowl: Check plastic pivots for cracks.
- Lube with white lithium; replace if wobbly ($10 bushings).
Motor Replacement DIY
- Arms off, cowl up (10 clips).
- Unplug motor, 3x 10mm bolts.
- Twist linkage off ball joint.
- New motor ($80 4M0955115), reverse install.
FAQ
Does Audi use the same wiper service mode as VW?
Yes, MQB-platform Audis (A3, Q5) activate identically—hold stalk button 3-5 seconds. Older B6 A4 needs fuse pull first.
Can I enter service mode with the engine running?
Yes, but Park/Neutral required; running engine risks wiper runaway if stalled.
Why do my VW wipers park crooked after service mode?
Park switch out of sync—cycle wipers 10x or reset BCM via battery disconnect.
Is VCDS needed for wiper service mode troubleshooting?
Not for activation, but essential for BCM adaptations on 2015+ models post-repair.
How to fix squeaky wipers in service position?
Clean blade edges with alcohol; apply silicone spray to rubber. Avoid petroleum-based lubes.
Mastering VW wiper service mode empowers you to sidestep dealer upsells and tackle maintenance like a pro.
From blade swaps to motor swaps, these steps—honed from thousands of real-world diagnostics—keep your VW running crisp without the $500 surprise.
Prioritize cowl drains to prevent repeats; your wallet and windshield thank you.
