Volvo Scr System Fault: Quick Fixes To Avoid Limp Mode

Quick Summary: Volvo SCR system fault is most commonly caused by DEF quality issues, NOx sensor failure, or clogged injectors. You can often reset these via iCOM or an OBD scanner after fixing the root cause, though dealerships frequently overcharge for full system replacements.

What is a Volvo SCR system fault and why does it happen?

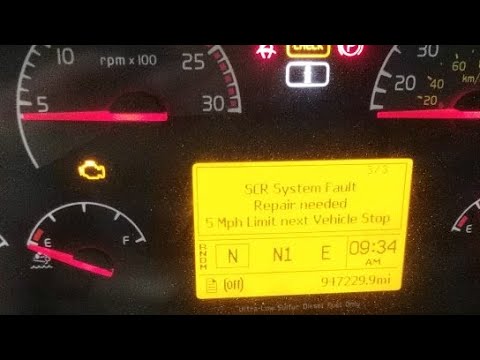

The SCR system fault in Volvos refers to errors in the Selective Catalytic Reduction setup, which uses Diesel Exhaust Fluid (DEF) to cut NOx emissions on diesel models like the XC90 D5 or V90 D4. This fault triggers the check engine light, reduced power mode, or limp mode, effectively halting your drive until addressed.

Dealerships often push for expensive NOx sensor swaps immediately. However, real-world diagnostics show it is frequently a simpler issue involving DEF quality or sensor calibration.

From hands-on experience, these faults spike after low-quality DEF refills or long periods of idling where crystals form and block components. Independent shops often misdiagnose these by skipping live data scans, leading to unnecessary quotes exceeding $2,000.

Always start by using a quality OBD-II scanner to identify specific Diagnostic Trouble Codes (DTCs). Look for codes like P20EE or P229F before assuming the worst-case scenario.

Common DTCs Linked to SCR Faults

• ➔ P20EE: SCR NOx catalyst efficiency below threshold – usually indicates sensor drift.
• ➔ P229F: Sensor data plausibility – often a DEF injector or pump mismatch.
• ➔ P207F: Reductant quality performance – bad DEF is the culprit 70% of the time.
• ➔ P13C9: SCR line restriction – caused by crystals from old fluid.

How to diagnose Volvo SCR system fault at home

You can diagnose the system by scanning for specific DTCs with a $50 OBD-II reader like BlueDriver. Once scanned, check your DEF levels and visual fluid quality.

There is often no need for Volvo-specific VIDA software initially. Live data on NOx sensors and DEF pressure usually tells the real story behind the fault.

Step-by-Step Home Diagnostic Process

1. Safety First: Park safely, turn the key to ON (engine off), and connect your OBD scanner to the port under the dash.
2. Code Analysis: Read and note all codes; clear them once to see if they return immediately, which points to active hardware failure.
3. Fluid Check: Check the DEF tank level via the dash gauge, as low fluid throws instant faults.
4. Sensor Inspection: Inspect NOx sensors for soot buildup and test resistance with a multimeter (target: 100-300 ohms).
5. Live Testing: Run the engine at 2000 RPM for 5 minutes and monitor live data for DEF pressure (3-7 bar).
6. Evaluation: If pressure is low, suspect the pump; if NOx remains high post-cat, it is likely a catalyst or injector issue.

Pro tip: Cold weather exacerbates faults as DEF freezes above 12°F. Warm the tank with a heater blanket if testing in winter to avoid unnecessary tow fees.

Volvo SCR system fault causes and fixes

Main causes are poor DEF quality, faulty NOx sensors, or injector clogs. Fixes range from a simple fluid drain and refill to sensor replacement for under $200 if you DIY.

Dealerships often overlook software calibrations, charging over $1,500 for what is often a $20 DEF swap. It is best to break it down by symptom for targeted repairs.

Fix 1: DEF Quality or Contamination Issues

Bad or crystallized DEF is the #1 cause, especially after using off-brand fluid. Symptoms include the P207F code. Drain the tank fully and refill with ISO 22241-certified DEF like BlueDEF.

1. Locate the DEF tank, usually on the passenger side under the hood.
2. Siphon out old fluid using a dedicated DEF pump.
3. Flush with distilled water, drain again, and add fresh fluid.
4. Drive 20 miles to purge the lines and reset the fault.

Fix 2: NOx Sensor Failure

Pre-cat sensors fail from soot, while post-cat sensors fail from heat cycling. While OEM parts are pricey, aftermarket Bosch sensors work well.

• XC90 D5 (2016-2020): Post-cat sensor is most common; access it via the underbody shield.
• V60 D4: Pre-cat is easier to reach; you can swap it in about 30 minutes.

Fix 3: DEF Injector or Dosing Pump Clog

Injectors often clog from urea crystals. Always clean the injector before committing to a $500 pump swap.

1. Disconnect the injector line and spray with specialized DEF cleaner.
2. Test the pump output; it should prime audibly when the key is turned ON.
3. Replace the pump screen or filter if it appears clogged.

Model-specific Volvo SCR faults and solutions

Different Volvos have unique weak points. The XC90 D5 frequently has NOx sensor issues, while the V90 D4 is known for DEF pump failures.

Year Range	Common Fault	DIY Cost	Fix Time
2015-2017	Injector clog	$50 cleaner	1 hour
2018-2022	NOx post-cat	$250 sensor	2 hours

How to reset Volvo SCR system fault after repair

Reset the system by clearing codes via an OBD scanner, then perform a drive cycle. This usually requires 20+ miles of highway driving at 55+ MPH for adaptation.

Avoid the $150 dealer reset fee by using the Carly app or a similar tool. If the fault returns, it means the root cause was not fully addressed.

1. Fix the hardware components first.
2. Clear the DTCs and cycle the key three times.
3. Perform an SCR efficiency test if your scanner supports it.
4. Monitor the vehicle for 100 miles and use premium diesel.

Preventing Volvo SCR system faults long-term

Use only API-certified DEF and top it off every 5,000 miles. Running a DPF regeneration monthly can also help keep the system clear.

Consider installing an inline DEF filter to catch crystals early. Avoid biodiesel blends that can gum up injectors over time.

Maintenance Schedule

• Every 5,000 miles: Check DEF level and scan for hidden codes.
• Every 20,000 miles: Inspect sensors and clean the injector.
• Annually: Flush the DEF tank if the vehicle has been stored.

FAQ

Can I drive with a Volvo SCR system fault?
Short distances are okay, but limp mode will cap your speed. It also risks clogging the DPF if left unaddressed.

Will premium fuel fix SCR faults?
No, premium fuel aids DPF regeneration but does not fix DEF-specific SCR faults.

How much does dealer SCR repair cost?
Expect to pay between $1,200 and $3,500. You can often negotiate by showing your own diagnostic data.

Is the SCR fault covered under warranty?
The federal emissions warranty often covers sensors and pumps for 5 years or 50,000 miles.

In summary, Volvo SCR faults are fixable DIY with basic tools and patience. Regular DEF maintenance keeps your diesel Volvo running powerful and emission-free for years to come.
