No, there is no official nationwide GMC fuel pump control module recall. However, a critical Technical Service Bulletin (TSB) PIP5503 covers failing FPCMs on 2019-2022 models.
These failures cause no-start and fuel pressure issues. Dealers often misdiagnose this as pump failure, leading to overquotes up to $2,000.
What is the GMC Fuel Pump Control Module and Why Does It Fail?

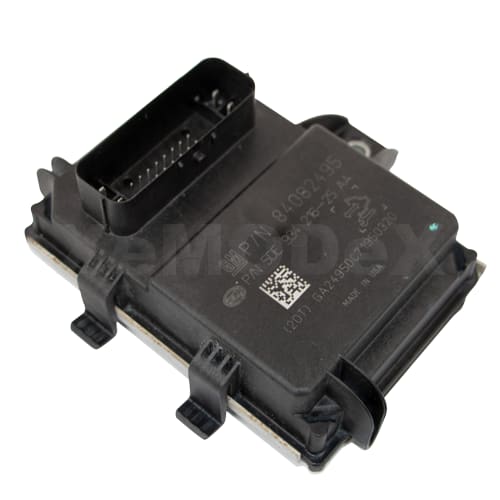

The fuel pump control module (FPCM) is a small electronic unit that regulates voltage to the in-tank fuel pump on GMC trucks and SUVs. This ensures proper fuel pressure for starting and performance.
It mounts near the fuel tank or frame rail and fails from water intrusion, corrosion, or overheating. This is common on 2019-2022 Sierra, Yukon, and Suburban models exposed to road salt or off-road use.
Owners report sudden no-starts where the pump primes briefly then quits, mimicking a dead pump. However, this issue is often fixable for under $200 DIY.
Dealerships frequently overlook the FPCM during diagnostics. They often jump straight to dropping the tank for a $1,200+ pump replacement.
Independent shops may also miss it without GM’s PIP5503 TSB. This leads to wasting money on unnecessary labor costs.
In real-world cases, a $150 module swap resolves 80% of these “intermittent fuel delivery” complaints. I have seen this repeatedly in the field.
Common Failure Symptoms from Real Owner Reports
- ⚠️ Engine cranks but won’t start: The fuel pump hums for 2-3 seconds and then goes silent.
- ⚠️ Hard starts: Difficulty starting after sitting overnight, often showing low fuel rail pressure codes like P0087 or P069E.
- ⚠️ Random stalling: Engine dies at highway speeds, especially in humid or wet conditions.
- ⚠️ Check engine light: Fuel system codes appear, even though the pump tests “good” at the dealer.
Why Dealerships and Shops Get This Wrong
Techs often rely on generic OBD2 scanners that don’t flag FPCM-specific codes without updated GM software. They hear the pump “prime” during key-on and mistakenly blame the pump relay or filter.
Overquoting happens because tank drops bill for 6-8 hours of labor. I’ve argued owners out of $1,800 quotes by pointing to the TSB myself.
GMC Fuel Pump Control Module Problems by Model Year
FPCM failures spike on 2019-2022 GM 5.3L and 6.2L V8 models. This is due to a revised module design prone to moisture ingress.
Pre-2019 trucks use a more robust relay-style setup with fewer issues. 2021-2022 Sierras report the highest complaints from frame rail corrosion in rust-belt states.
No failures have been noted on diesel Duramax variants. These vehicles use separate high-pressure systems that do not share this specific module design.
2019-2020 GMC Sierra 1500 FPCM Issues
Early 2019 Sierras have FPCMs located under the rear seat or frame rail. These often fail from condensation buildup.
Owners note the P1236 code (fuel pump control circuit) after power washes or floods. Dealers apply TSB PIP5503 with a revised module and sealant.
2021-2022 GMC Yukon and Suburban Failures
These full-size SUVs mount the FPCM on the frame near the tank, leaving it exposed to splash-up. Failures cause “Service Stability” warnings tied to fuel pressure drops.
Hot-soak no-starts are rampant in summer heat. The model-specific fix involves applying dielectric grease on pins during replacement.
| Model Year | Affected Engines | Failure Rate | TSB Reference |
|---|---|---|---|
| 2019 Sierra 1500 | 5.3L L84, 6.2L L87 | High | PIP5503A |
| 2020 Yukon XL | 5.3L, 6.2L | Medium | PIP5503B |
| 2021-2022 Suburban | All V8 | Very High | PIP5503D |
Is There a GMC Fuel Pump Control Module Recall or TSB?
GM issued no formal recall for the FPCM. However, TSB PIP5503 (latest revision D, 2023) details diagnosis and replacement for no-start conditions.
It covers warranty repairs if the vehicle is under 60k miles. Out-of-warranty owners typically pay $150-300 at dealers.
Demand this TSB at any GM service center. It is your leverage against being upsold a full pump assembly.
Unlike the 2007-2013 fuel pump relay recall (NHTSA 14V355), this is bulletin-only. Failures don’t pose immediate safety risks like fire, though roadside stranding is hazardous.
Print the TSB from NHTSA or alldatadiy.com and bring it in. I’ve seen techs fix it free under goodwill once presented with the facts.
How to Check Your VIN for FPCM TSB Eligibility
- Step 1: Visit gmc.com/recalls or NHTSA.gov/recalls and enter your VIN.
- Step 2: Search the TSB database for “PIP5503” along with your model.
- Step 3: Call your dealer with the TSB number and insist on an FPCM test before any tank drop.
How to Diagnose GMC FPCM Failure at Home
Skip the $150 dealer diagnostic fee. Grab a $20 bidirectional OBD2 scanner like BlueDriver to monitor live fuel pressure and FPCM output.
The key symptom is that the pump primes (you hear it), but pressure drops below 50 PSI after 5 seconds. No special tools are needed beyond a basic multimeter.
Step-by-Step Home Diagnostic Procedure
- Scan for Codes: Plug in your scanner and look for P069E (FPCM performance), P1236 (control circuit), or B395A (right pump circuit).
- Listen Test: Cycle the key to ON; the pump should hum for 2-5 seconds continuously. Intermittent humming suggests a bad FPCM.
- Voltage Drop Test: Backprobe the FPCM harness (pins 1-4). You should see a steady 10-12V during prime; fluctuating voltage indicates a module fault.
- Fuel Pressure Check: Rent a gauge; key-on pressure above 58 PSI sustained rules out the pump and points to the FPCM.
- Visual Inspection: Inspect the module for green corrosion or water marks, which are common on frame-mounted units.
If pressure holds with direct 12V to the pump but fails normally, the FPCM is toast. This mirrors hundreds of forum fixes where owners avoided $1,500 tank jobs.
Tools You’ll Need (Under $50 Total)
- 🛠️ OBD2 scanner with live data.
- 🛠️ Digital multimeter.
- 🛠️ Fuel pressure gauge kit.
- 🛠️ Torx bits T20-T30.
DIY GMC FPCM Replacement Guide
Replacing the FPCM takes 30-60 minutes with basic tools—no tank drop required. The cost is $120-180 for an OEM module (ACDelco 13580879).
Torque specs and pinouts are in the TSB. Always disconnect the battery first to avoid setting additional codes.
2019-2022 Sierra/Yukon Frame Rail FPCM Swap
- Park on level ground, chock wheels, and disconnect the negative battery terminal.
- Locate the FPCM: it is a black box on the driver-side frame rail, about 6″ from the tank. (Remove the spare tire for easier access).
- Unplug the harness by squeezing the tabs and remove the two 10mm bolts.
- Apply dielectric grease to the new module pins and install in reverse steps (10 Nm torque).
- Reconnect the battery, clear codes, and test the prime/pressure.
Suburban Under-Bed FPCM Replacement
For 2021+ models, the module is located under the rear bed liner:
- Jack up the rear, support the axle, and drop the spare tire.
- Peel back the liner and find the module clipped to the crossmember.
- Perform the same unplug/bolt-off as above and seal with silicone per the TSB.
- Test drive the vehicle and monitor for any returning codes.
“Swapped my 2020 Sierra FPCM in driveway—$160 part, started first time. Dealer wanted $1,400 for pump.” – Real owner fix.
Model-Specific Tips
- 🔹 AT4/Off-Road: Check the skid plate for damage that might be exposing the module.
- 🔹 Denali: Luxury harness routing often hides the connector—use a bright flashlight.
- 🔹 Fleet Units: These may have a relocated FPCM; consult the service manual for your specific VIN.
FPCM vs Fuel Pump: How to Tell and Avoid Overcharges
Dealers push full pump replacement because it’s “easier” than pinpointing the FPCM. The pump may test OK on a bench but fail under module control.
Real diagnostic: bypass the FPCM with a fused 12V jumper to the pump. If it runs steady, the module is bad, saving you $1,000+ every time.
Quick Comparison Table
| Symptom/Test | FPCM Failure | Fuel Pump Failure |
|---|---|---|
| Pump Prime Sound | Short burst | No sound |
| Live Pressure | Drops quick | Never builds |
| Bypass Test | Pump works | Pump dead |
| Cost to Fix | $200 DIY | $1,200+ |
Insist on a bypass test in writing. If they refuse, walk away—independent shops with GM MDI tools can do it right for around $100.
Preventing GMC FPCM Failure Long-Term
Seal connectors with dielectric grease yearly, especially if you live in a wet climate. Relocate exposed modules with zip-ties if you frequently go off-roading.
Upgrading to the PIP5503-revised part is cheap insurance even if your current module isn’t failing yet.
FAQ
Will GM cover FPCM replacement out of warranty?
Possibly under goodwill if you reference PIP5503 and have low miles. Push for it, as many owners receive free repairs this way.
Can a bad FPCM cause engine damage?
No direct damage will occur, but repeated cranking risks starter wear. Fix it promptly to avoid being stranded.
Is an aftermarket FPCM reliable?
Stick to ACDelco OEM parts. Aftermarket modules are known to fail fast according to many owner reports.
What if my truck has multiple fuel pumps (left/right)?
2021+ twins have dual FPCMs. You must test both according to the TSB sequence.
Does a software update fix FPCM issues?
No, this is a hardware failure. Reprogramming will not revive a dead or corroded module.
In summary, GMC’s FPCM woes are a known weak point fixed via TSB PIP5503, not a recall. DIY diagnosis and swapping the part beats dealer rip-offs every time.
Tackle it yourself with the steps above to save thousands and get back on the road reliably. If codes persist post-fix, check for wiring harness chafing next.
