A Chevy Equinox AC recharge typically requires R-134a refrigerant for 2005–2017 models and R-1234yf for 2018 and newer models.
A full system holds approximately 1.25 to 1.56 pounds of refrigerant depending on the model year. You can recharge it yourself with a DIY kit for under $50, but if the system has a leak, a recharge alone will not fix the problem and you will waste money.
How Do You Recharge the AC on a Chevy Equinox?
To recharge the AC on a Chevy Equinox, you connect a refrigerant can to the low-pressure service port while the engine is running and the AC is set to max. The process takes about 15 to 20 minutes and requires no special tools beyond a recharge kit with a built-in gauge.
Before you start, you need to identify which refrigerant your Equinox uses. This is critical because mixing refrigerants destroys the system. Check the underhood sticker near the radiator support or the owner’s manual.
Step-by-Step DIY Recharge Process
- Start the engine and turn the AC to the coldest setting with the fan on high.
- Open all windows to prevent the system from cycling off due to low cabin temperature.
- Locate the low-pressure service port. On most Equinox models, it is on the passenger side of the engine bay near the firewall, attached to the larger diameter aluminum line.
- Remove the blue or black cap from the low-pressure port. The cap is marked with an “L.”

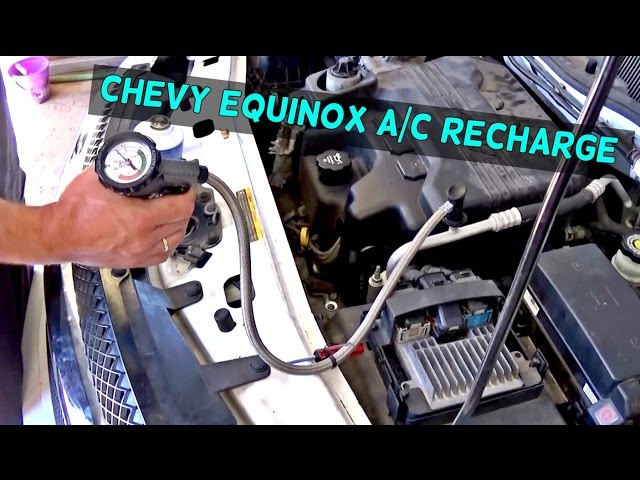

- Attach the recharge hose from your kit to the low-pressure port. Push down firmly until it clicks.
- Read the current pressure on the gauge. If the system is completely empty, you likely have a leak and should not proceed with a simple recharge.
- Hold the refrigerant can upright and squeeze the trigger to release refrigerant into the system.
- Monitor the gauge. The target pressure depends on the ambient temperature. At 75°F, you want roughly 35 to 40 PSI on the low side.
- Periodically shake the can to keep the refrigerant flowing evenly.
- Once the correct pressure is reached, disconnect the hose and replace the port cap.
⚠ Real-World Warning: If the gauge reads zero or near zero before you add refrigerant, stop. The system is open to the atmosphere, which means moisture has entered. A vacuum must be pulled on the system before recharging, and that requires a manifold gauge set and a vacuum pump. Simply dumping refrigerant into a contaminated system will cause compressor failure.
What Are the Signs Your Chevy Equinox Needs an AC Recharge?
The most common sign is warm or lukewarm air blowing from the vents even with the AC set to maximum cold. Other signs include the AC compressor cycling on and off rapidly, visible refrigerant oil stains on AC components, and a hissing sound from the dashboard when the system is running.
How to Confirm Low Refrigerant Before Buying a Kit
- ▸ Warm air from vents: This is the most obvious symptom, but it can also be caused by a failed compressor, blend door actuator, or electrical issue.
- ▸ Compressor clutch not engaging: Pop the hood and watch the AC compressor. If the center clutch does not spin when the AC is on, the system may be too low on refrigerant to trigger the low-pressure switch.
- ▸ Rapid cycling: The compressor kicks on for two to three seconds, then shuts off, then kicks on again. This rapid cycling is a textbook sign of low refrigerant charge.
- ▸ Oily residue on fittings: Look at every AC fitting and hose connection under the hood. Refrigerant oil leaves a dark, greasy film where leaks occur.
- ▸ UV dye in the system: Many Equinox models leave the factory with UV dye. Shine a UV light on the condenser, hoses, and compressor to spot leak points.
What Refrigerant Does a Chevy Equinox Use?
2005 through 2017 Chevy Equinox models use R-134a refrigerant. Starting with the 2018 model year, GM switched to R-1234yf across the Equinox lineup. These two refrigerants are not interchangeable, and using the wrong one can cause system damage and is illegal under EPA regulations.
Refrigerant Capacity by Model Year
⚠ Important: Overcharging the system is just as damaging as undercharging. Too much refrigerant raises high-side pressure and can blow out seals or damage the compressor. Always use a gauge and follow the pressure chart on the recharge kit.
Why Does My Chevy Equinox AC Keep Losing Refrigerant?
If your Equinox AC works for a few weeks after a recharge and then goes warm again, you have a leak. Recharging a leaking system is like putting air in a tire with a nail in it. The most common leak points on the Equinox are the condenser, the compressor shaft seal, and the evaporator core.
Common Leak Points on the Chevy Equinox
1. Condenser Leak
The condenser sits directly behind the front grille and takes road debris hits constantly. Small stones puncture the thin aluminum tubes. On the 2010–2017 Equinox, the condenser is especially vulnerable because of its large frontal surface area.
A replacement condenser costs between $80 and $150 for the part, and the job requires evacuating and recharging the system.
2. Compressor Shaft Seal
The compressor shaft seal dries out over time, especially on Equinox models that sit unused for long periods. You will see oil residue around the front of the compressor where the clutch meets the body. This is a common misdiagnosis point.
Many shops will quote a full compressor replacement when only the seal has failed. On some model years, the seal can be replaced separately for a fraction of the cost.
3. Evaporator Core Leak
The evaporator core is buried behind the dashboard. When it leaks, refrigerant escapes into the cabin, and you may notice a sweet chemical smell from the vents. This is the most expensive leak to fix because the entire dashboard must come out.
Dealerships often quote $1,200 to $1,800 for this repair. Independent shops can usually do it for $700 to $1,000.
4. Schrader Valve Leak
Both the high and low-pressure service ports have Schrader valves, similar to tire valve stems. These valves corrode and leak over time. This is the cheapest fix.
A new set of valve cores costs under $10 and can be replaced with a simple valve core tool without evacuating the system if done quickly.
5. O-Ring Deterioration
Every AC fitting connection uses rubber O-rings. On the Equinox, the O-rings at the compressor and condenser connections are known to shrink and crack with age and heat exposure. Replacing all accessible O-rings during a recharge is cheap preventive maintenance that many technicians skip.
How Much Does a Chevy Equinox AC Recharge Cost?
A DIY AC recharge costs $30 to $50 for a refrigerant kit from any auto parts store. A professional recharge at a shop runs between $150 and $300, which includes evacuating the system, checking for leaks, adding UV dye, and recharging with the correct refrigerant amount.
Cost Breakdown: DIY vs Professional
Dealership vs Independent Shop: Dealerships almost always quote the highest price and often recommend replacing the entire compressor assembly even when only a seal or O-ring has failed. A trusted independent AC shop will usually diagnose the exact leak point and repair only what is necessary. Always ask for the leak location proof before authorizing major repairs.
Where Is the AC Recharge Port on a Chevy Equinox?
The low-pressure AC recharge port on a Chevy Equinox is located on the passenger side of the engine bay on the larger diameter suction line that runs from the evaporator to the compressor. It has a blue or black plastic cap marked with an “L.” The high-pressure port is on the driver side on the smaller liquid line and has a red or black cap marked with an “H.”
Only connect your recharge kit to the low-pressure port. Connecting to the high-pressure port is dangerous and can cause the can to rupture. The fittings are different sizes specifically to prevent this mistake, but people still force them.
Port Location by Generation
- ▸ First Generation (2005–2009): Low-pressure port is on the suction line near the firewall on the passenger side. Look for a blue cap.
- ▸ Second Generation (2010–2017): Low-pressure port is on the accumulator near the firewall, passenger side. The accumulator is the cylindrical canister on the suction line.
- ▸ Third Generation (2018–Present): Low-pressure port is still on the passenger side but uses a different fitting size for R-1234yf. Standard R-134a recharge kits will not connect to it.
Frequently Asked Questions
Can I use a stop-leak product in my Chevy Equinox AC system?
Stop-leak products can seal very small leaks, but they also gum up expansion valves and orifice tubes. On the Equinox, the orifice tube is a common failure point when stop-leak is used. If you plan to keep the vehicle long-term, find and fix the actual leak instead of relying on a chemical band-aid.
Why does my Equinox AC blow cold on one side and warm on the other?
This is almost always a failed blend door actuator, not a refrigerant issue. The 2010–2017 Equinox is notorious for blend door actuator failure. The actuator is a small electric motor behind the dashboard that controls air temperature.
Replacing it costs $20 to $50 for the part and about an hour of labor. A recharge will not fix this problem.
How often should I recharge my Chevy Equinox AC?
A properly sealed AC system should never need recharging. The system is sealed and refrigerant does not get consumed. If you need to recharge more than once every two to three years, you have a leak that needs to be found and repaired.
Is R-1234yf refrigerant more expensive than R-134a?
Yes, significantly. R-1234yf costs $40 to $60 per pound compared to $10 to $15 per pound for R-134a.
This is why a professional recharge on a 2018 or newer Equinox costs considerably more. The refrigerant itself is the biggest part of the bill.
Will AutoZone or O’Reilly recharge my Equinox AC for me?
Most auto parts stores sell DIY recharge kits but do not perform the service themselves. Some locations offer free AC performance testing with a thermometer in the vent. For a full evacuation and recharge with proper equipment, you need a shop with an AC recovery machine.
Final Thoughts: Recharge Smart, Not Twice
A Chevy Equinox AC recharge is a straightforward DIY job when the system is simply low on refrigerant with no underlying leak. But if your system has lost all its charge or needs recharging every season, you are treating the symptom and ignoring the disease.
Spend the extra time or money to get a proper leak diagnosis before you dump another can of refrigerant into a system that is just going to lose it again. The condenser, compressor seal, and evaporator are the three places to look first on every Equinox generation.
Fix the leak once, recharge correctly with the right refrigerant and the right amount, and your AC will stay cold for years.
