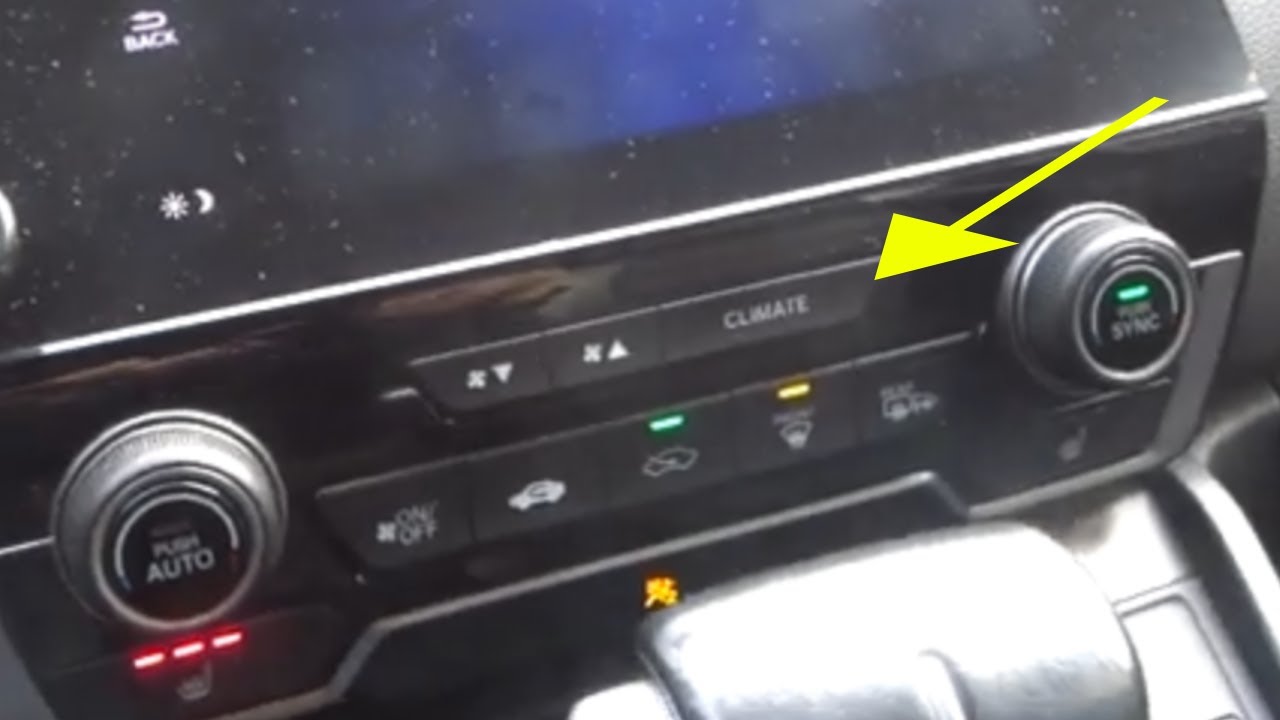

To reset the air conditioning on a Honda CRV, turn the ignition to the ON position (do not start the engine), set the fan to the highest speed, set the temperature to the coldest setting, press and hold the AC button and the recirculation button simultaneously for about 10 seconds until the AC indicator blinks, then release and start the engine. This recalibrates the blend door actuators and resets the climate control module.
How Do You Reset the Honda CRV Air Conditioning System?
The fastest way to reset your Honda CRV AC is through the climate control self-diagnostic and recalibration procedure built into the module. This works on most CRV model years from 2007 through the current generation and clears stored fault codes in the HVAC module without needing a scan tool.
I have performed this reset hundreds of times on customer vehicles after battery replacements, refrigerant recharges, and blend door actuator swaps. The procedure forces the climate control module to relearn the position of the blend doors, mode doors, and recirculation door from scratch.
Step-by-Step AC Reset Procedure for Honda CRV
- Turn the ignition switch to the ON position. Do not start the engine.
- Set the fan speed dial to the maximum (highest) setting.
- Turn the temperature dial fully to the coldest position (MAX AC or full blue).
- Press and hold the AC button and the recirculation button at the same time.
- Continue holding both buttons for approximately 10 to 15 seconds.
- The AC indicator light will begin to blink, confirming the recalibration process has started.
- Release both buttons and wait for the blinking to stop. This can take up to 30 seconds.
- Start the engine and test the AC system by checking for cold air at the vents.
Alternative Reset Method (Disconnect Battery)
If the button combination does not work, you can perform a hard reset by disconnecting the negative battery terminal. This is the method most dealerships use when they do not want to bother with the button sequence.
- Turn off the ignition and remove the key.
- Open the hood and locate the negative (black) battery terminal.
- Use a 10mm wrench to loosen the terminal clamp and remove it from the battery post.
- Wait at least 10 minutes. This allows all capacitors in the HVAC module to fully discharge.
- Reconnect the negative terminal and tighten it securely.
- Start the engine and turn on the AC. The system will begin its automatic recalibration cycle.
- Do not touch any climate control buttons for at least 60 seconds while the module relearns actuator positions.
Why Does the Honda CRV AC Stop Working After a Battery Change?
The Honda CRV climate control module loses its stored actuator position data whenever battery power is completely disconnected. The blend door actuators, which control the mix of hot and cold air, default to a random or fully-open position and the module does not know where they are until it recalibrates.
This is one of the most common complaints I hear from CRV owners right after a battery replacement. They drive away from the parts store with a new battery and suddenly the AC blows warm air or only blows from the defrost vents. The system is not broken — it just needs to relearn.
What Happens Inside the Module
The Honda CRV uses electronic blend door actuators with position feedback sensors. When power is lost, the module erases the stored position values for the temperature blend door, the mode door, and the recirculation door.
Upon power restoration, the module runs a calibration sweep where each actuator travels from one end of its range to the other so the module can map the full travel and store the new positions.
If this calibration sweep is interrupted — by touching buttons, changing temperature settings, or turning off the ignition too soon — the calibration fails and the system defaults to a safe mode. In safe mode, the AC compressor is often disabled to prevent damage from improper airflow routing.
How to Prevent This Problem
- ✓After reconnecting the battery, do not touch any HVAC controls for at least 60 seconds.
- ✓Let the engine idle with the AC set to AUTO for two full minutes before driving.
- ✓If you are having a shop replace your battery, ask them to perform the AC recalibration before you leave.
Honda CRV AC Blowing Warm Air — What Are the Real Causes?
Warm air from the Honda CRV AC is most commonly caused by low refrigerant, a failed AC compressor clutch relay, a faulty compressor clutch coil, or a blend door actuator that has lost its calibration. In my experience, about 40 percent of warm-air complaints on CRVs are electrical, not refrigerant-related.
Many shops will immediately recommend a full AC recharge when you complain about warm air. Before you spend money on refrigerant, check the simpler and cheaper electrical causes first.
Cause 1: AC Compressor Clutch Relay Failure
The AC compressor clutch relay on Honda CRVs is a known weak point, especially on 2012 through 2016 models. The relay contacts wear out and fail to send power to the compressor clutch coil, so the compressor never engages even though the system has a full refrigerant charge.
The relay is located in the under-hood fuse box and is usually labeled AC CLT or AC MG CLT. It costs under 15 dollars at any parts store and takes 30 seconds to swap. This is the single most overlooked cause of AC failure on the CRV.
Cause 2: Low Refrigerant Charge
If the refrigerant level drops below a certain threshold, the low-pressure switch prevents the compressor from engaging to protect the system. A slow leak from the condenser, Schrader valves, or O-ring seals is the usual culprit. A proper leak test with UV dye or an electronic leak detector should be performed before simply adding refrigerant.
Cause 3: Blend Door Actuator Failure
The temperature blend door actuator on the Honda CRV is a small electric motor with a plastic gear train. The gears strip over time, especially on the 2012 through 2016 generation.
When the gears strip, the actuator motor spins but the blend door stays stuck in one position — usually the hot position. You may hear a clicking or ticking noise behind the dash when you change the temperature setting.
Cause 4: AC Compressor Clutch Coil Failure
The clutch coil can develop an open circuit or short circuit over time. You can test this by checking for battery voltage at the compressor clutch connector with the AC turned on.
If voltage is present but the clutch does not engage, the coil is bad. The clutch coil resistance should measure between 3 and 5 ohms. Anything outside that range means replacement.
How to Reset Honda CRV AC After Refrigerant Recharge
After recharging the refrigerant on a Honda CRV, you need to clear any stored low-pressure fault codes in the HVAC module before the compressor will engage. Simply adding refrigerant is not enough because the module remembers the fault and locks out the compressor as a safety measure.
Method 1: Scan Tool Clear
Connect an OBD2 scan tool that has HVAC module access (not all basic code readers can do this). Navigate to the HVAC module, read and clear all stored codes, then cycle the ignition and test the AC. This is the most reliable method.
Method 2: Battery Disconnect Clear
If you do not have access to a scan tool, disconnect the negative battery terminal for 10 minutes as described earlier. This will clear all module memory including the HVAC fault codes. After reconnecting, perform the full recalibration procedure before testing.
Method 3: Fuse Pull
Locate the HVAC fuse in the interior fuse box (check your owner’s manual for the exact fuse number). Pull the fuse for 5 minutes, then reinstall it. This sometimes clears the HVAC module memory without affecting other systems like the radio or clock.
Honda CRV AC Reset by Model Year — Key Differences
Not all Honda CRV generations use the same reset procedure. The climate control architecture changed significantly between generations, and what works on a 2010 model will not work on a 2018 model.
2012–2016 Honda CRV AC Reset Notes
This generation is the most problematic for AC issues. The blend door actuator gears are made of soft nylon and strip after about 60,000 to 80,000 miles.
When this happens, no amount of resetting will fix the problem — the actuator must be replaced. The part costs about 40 to 60 dollars and takes roughly 1 to 2 hours to install depending on which side of the dash it is located.
2017–2022 Honda CRV AC Reset Notes
The fifth-generation CRV uses a more sophisticated climate control system with an evaporator temperature sensor that can cause the compressor to cycle off prematurely. If your AC works intermittently on this generation, the sensor is more likely the cause than a calibration issue. The sensor is inexpensive but requires partial dashboard disassembly to access.
How to Diagnose Honda CRV AC Problems at Home
You can diagnose most Honda CRV AC problems at home with a basic set of tools including a manifold gauge set, a multimeter, and a thermometer. You do not need an expensive scan tool for the initial diagnosis, though it helps for clearing codes after repairs.
Quick AC Performance Test
- Start the engine and set the AC to MAX cold with the fan on high.
- Close all windows and doors.
- Place a thermometer in the center dash vent.
- Let the system run for 5 minutes at idle.
- Check the vent temperature. It should read between 38°F and 48°F (3°C to 9°C) on a properly functioning system.
- If the temperature is above 55°F (13°C), there is a problem with the system.
What the Gauge Readings Tell You
- ▶Low side below 20 PSI, high side below 150 PSI: Low refrigerant charge. Likely a leak somewhere in the system.
- ▶Low side above 50 PSI, high side above 300 PSI: Overcharged system or restricted airflow across the condenser. Check for debris blocking the condenser fins.
- ▶Low side normal, high side normal, but warm air: Blend door actuator issue or electrical problem preventing compressor engagement.
- ▶Both gauges equalized at the same pressure: Compressor is not compressing. Internal compressor failure or clutch not engaging.
Frequently Asked Questions
Will disconnecting the battery reset the Honda CRV AC permanently?
Disconnecting the battery clears the HVAC module memory and forces a recalibration, but it does not fix underlying hardware failures. If the blend door actuator gears are stripped or the compressor clutch coil is bad, the problem will return immediately after the reset. The reset only fixes software calibration issues caused by power loss.
How much does it cost to fix the AC on a Honda CRV?
The cost depends on the specific failure. A relay replacement costs under 20 dollars for the part. A blend door actuator replacement runs 150 to 300 dollars at an independent shop.
A full compressor replacement typically costs 800 to 1,200 dollars including parts and labor. A condenser replacement ranges from 400 to 700 dollars. Always get a proper diagnosis before authorizing expensive repairs.
Can I drive my Honda CRV with the AC not working?
Yes, you can drive the vehicle safely with a non-functioning AC system. However, the AC compressor also runs the defrost function in most Honda CRVs.
Without a working compressor, your windshield will fog up in humid or cold conditions, which is a safety concern. Get the system repaired before the rainy or cold season.
Why does my Honda CRV AC work intermittently?
Intermittent AC operation on a Honda CRV is usually caused by a failing compressor clutch that engages and disengages erratically, a weak relay with intermittent contact, or an evaporator temperature sensor that is reading incorrectly and cycling the compressor off too early. On 2017 and newer models, the evaporator sensor is the most common cause of intermittent cooling.
Does the Honda CRV AC reset procedure work on the Honda HRV or Civic?
The button combination procedure (AC plus recirculation) works on many Honda models including the Civic, HRV, and Accord that share the same climate control architecture. However, the exact button sequence and hold time may vary slightly between models. The battery disconnect method works universally across all Honda models.
Final Thoughts on Honda CRV AC Reset and Repair
Resetting the Honda CRV air conditioning system is a simple procedure that solves calibration-related issues caused by battery disconnection or module memory loss. However, a reset will never fix a mechanical or electrical hardware failure.
Before spending money at a dealership, try the reset procedure first — it costs nothing and takes less than two minutes. If the problem persists after a proper reset, move on to checking the relay, testing the compressor clutch, and inspecting the blend door actuators in that order.
These are the most common failure points on the CRV, and diagnosing them yourself can save hundreds of dollars in unnecessary shop charges.
