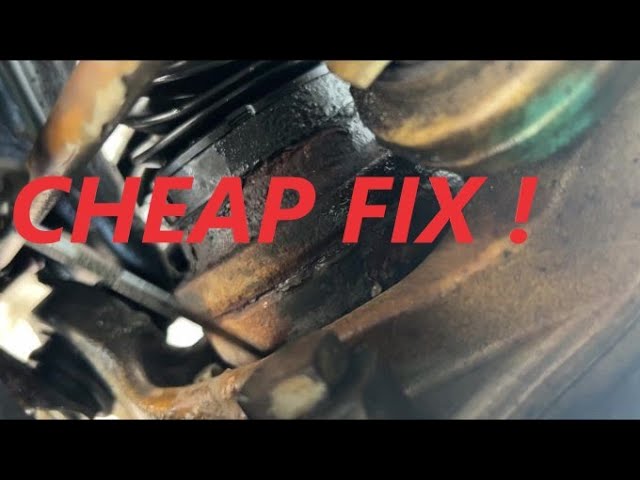

A Mercedes wheel speed sensor problem triggers the ABS, ESP, and traction control warning lights on your dashboard. The most common causes are a faulty wheel speed sensor, damaged wiring harness, corroded tone ring, or a bad wheel bearing causing sensor air gap issues. Replacement costs range from $75 to $350 per sensor depending on the model, and most DIYers can handle the repair in under an hour with basic tools.
What Are the Symptoms of a Bad Wheel Speed Sensor on a Mercedes?
A failing wheel speed sensor almost always triggers multiple dashboard warning lights simultaneously. You will typically see the ABS light, ESP malfunction light, and sometimes the traction control or brake warning light all come on together.
The symptoms are consistent across most Mercedes models from the W203 C-Class through the W222 S-Class and modern EQ models:
- ABS, ESP, and BAS warning lights appear on the instrument cluster, often all at once.
- ABS pump engages erratically during normal braking or does not activate at all during hard stops.
- Traction control cuts power unexpectedly during acceleration on dry pavement.
- Speedometer reads zero or fluctuates while driving at a steady speed.
- Transmission shifts harshly or goes into limp mode because the ECU loses wheel speed data.
- Cruise control stops working or disengages without driver input.
In real-world shop diagnostics, roughly 70% of Mercedes ABS and ESP complaints trace back to a single wheel speed sensor. The front passenger side and rear driver side sensors fail most often because they sit closer to road debris and salt spray.
If only one sensor fails, your Mercedes ECU will disable the entire ABS and ESP system as a safety measure. This is by design, not a sign of catastrophic failure.
What Causes Mercedes Wheel Speed Sensors to Fail?
Wheel speed sensors fail due to age-related wear, environmental exposure, and poor OEM connector design. Mercedes uses passive and active Hall-effect sensors depending on the model year, and each type fails differently.
1. Corroded or Damaged Sensor Wiring
The wiring harness running from each wheel speed sensor to the ABS control module is the single most overlooked failure point. Mercedes routes these wires through the wheel well where they are exposed to water, salt, and vibration. Over time, the insulation cracks and moisture enters the connector, causing intermittent signal loss.
2. Debris and Metal Shavings on the Sensor Tip
Wheel speed sensors read a magnetic tone ring or reluctor ring attached to the wheel bearing or axle. Brake dust and metal shavings accumulate on the sensor tip and disrupt the magnetic signal. This is extremely common on models with ceramic or semi-metallic brake pads.
3. Worn Tone Ring or Reluctor Ring
The tone ring can crack, lose teeth, or develop rust buildup. On W204 C-Class and W212 E-Class models, the rear tone ring is integrated into the wheel bearing assembly. If the bearing wears, the tone ring deforms and produces an erratic signal even with a brand-new sensor installed.
4. Bad Wheel Bearing Causing Air Gap Issues
A worn wheel bearing changes the air gap between the sensor and the tone ring. Even a fraction of a millimeter difference will cause signal dropouts. Many Mercedes owners replace the sensor multiple times before discovering the real problem is the bearing itself.
5. Water Intrusion in the ABS Module Connector
On W164 ML-Class, W166 GLE, and X164 GL-Class models, water commonly leaks into the SAM (Signal Acquisition Module) area and corrodes the ABS module connector pins. This mimics a wheel speed sensor failure even when all four sensors test good.
How to Diagnose Which Mercedes Wheel Speed Sensor Is Bad
You need an OBD2 scanner with ABS capability to read wheel speed sensor live data and pinpoint the faulty sensor. A basic code reader that only reads engine codes will not help you here.
Step 1: Read ABS Fault Codes
Connect a Mercedes-compatible scanner such as iCarsoft MB II, Autel MD802, or a full Xentry system. Read the fault codes from the ABS/ESP module.
The codes will identify which corner is failing. Common codes include:
- C1000 – Control unit N47-5 (ESP control unit) fault
- C1010 – Right front wheel speed sensor signal fault
- C1020 – Left front wheel speed sensor signal fault
- C1030 – Right rear wheel speed sensor signal fault
- C1040 – Left rear wheel speed sensor signal fault
Step 2: Compare Live Wheel Speed Data
Drive the vehicle at a steady 30 mph on a flat road while monitoring all four wheel speed readings on your scanner. All four readings should be within 1-2 mph of each other. If one sensor reads zero or drops out intermittently while the others stay steady, that sensor is faulty.
Step 3: Inspect Wiring and Connector
Jack up the affected corner and visually inspect the sensor connector and harness. Look for green corrosion on the pins, cracked wire insulation, and chafing near the control arm or strut. Tug gently on each wire to check for internal breaks that are invisible from the outside.
How to Replace a Mercedes Wheel Speed Sensor (DIY Guide)
Replacing a Mercedes wheel speed sensor is a straightforward job that takes 20 to 45 minutes per corner. You will need a 10mm socket, a pick tool, dielectric grease, and the correct replacement sensor for your model.
- Jack up the vehicle and remove the wheel on the affected corner.
- Locate the sensor mounted into the steering knuckle (front) or wheel bearing housing (rear).
- Disconnect the electrical connector by pressing the release tab. Use a pick if the connector is stuck due to corrosion.
- Remove the mounting bolt (usually a 10mm bolt or a T30 Torx) holding the sensor in place.
- Pull the sensor straight out of the knuckle. Do not pry or twist. If it is seized, spray penetrating oil and let it soak for 10 minutes.
- Clean the sensor bore with brake cleaner to remove debris and old corrosion.
- Install the new sensor with a thin coat of anti-seize compound on the body (not the tip) to prevent future seizing.
- Route the new wiring exactly as the factory path and secure it with zip ties away from the brake rotor and suspension components.
- Apply dielectric grease to the connector pins before plugging it in.
- Reassemble and clear codes with your scanner. Test drive and verify all four wheel speed readings match.
Mercedes Wheel Speed Sensor Replacement Cost
The cost varies significantly depending on whether you buy OEM, aftermarket, or dealer parts and whether you do the labor yourself.
| Item | DIY Cost | Shop Cost |
|---|---|---|
| Aftermarket sensor (e.g., Bosch, Bremi) | $25 – $75 | $75 – $150 |
| OEM Mercedes sensor (A 000 905 52 02 and similar) | $60 – $150 | $120 – $250 |
| Labor (per sensor) | $0 | $100 – $200 |
| Total for one sensor | $25 – $150 | $175 – $450 |
Dealerships will almost always quote all four sensors plus an ABS module test, which can push the bill above $1,200. In reality, you rarely need to replace more than one sensor at a time unless multiple connectors show heavy corrosion.
Frequently Asked Questions
Can I drive my Mercedes with a bad wheel speed sensor?
You can physically drive the vehicle, but your ABS, ESP, and traction control will be completely disabled. This is dangerous in wet or icy conditions. Fix it as soon as possible.
Do I need to reset the ABS light after replacing the sensor?
Yes. The ABS and ESP lights will not turn off on their own after replacing the sensor. You must clear the codes with an OBD2 scanner that supports ABS module communication.
Will a bad wheel speed sensor cause the transmission to shift hard?
Yes. On 722.6 and 722.9 automatic transmissions, the ECU uses wheel speed data to calculate shift points. A signal dropout can cause harsh shifts, delayed engagement, or limp mode activation.
Is there a difference between left and right wheel speed sensors?
Yes. Front and rear sensors have different wire lengths and connector orientations.
Left and right sensors are often not interchangeable. Always verify the part number against your VIN before purchasing.
How long do Mercedes wheel speed sensors last?
Most original Mercedes wheel speed sensors last between 80,000 and 120,000 miles. Sensors in northern climates with heavy road salt exposure may fail as early as 50,000 miles.
Stop Guessing and Start Diagnosing Your Mercedes Wheel Speed Sensor
A Mercedes wheel speed sensor problem is one of the most common and most over-repaired issues on these vehicles. Dealerships and chain shops routinely replace all four sensors and charge for an ABS module reset when only one sensor or a corroded connector is the actual problem.
Armed with a proper scanner and the diagnostic steps above, you can identify the exact failing component, replace it yourself for a fraction of the shop quote, and get your ABS and ESP systems back online in under an hour. Do not let warning lights stay on. Every day you drive without ABS and stability control is a day you are one panic stop away from losing control of the vehicle.
