The “SRS Airbag Service Urgent” warning on a Volvo means the supplemental restraint system has detected a fault that may prevent one or more airbags from deploying in a crash. The most common causes are a failed clock spring (spiral cable), faulty seat occupancy sensor mat, corroded wiring under the seat, a bad SRS control module, or seatbelt pretensioner issues. A diagnostic scan with a Volvo-compatible tool is required to read the specific SRS fault code before any repair.

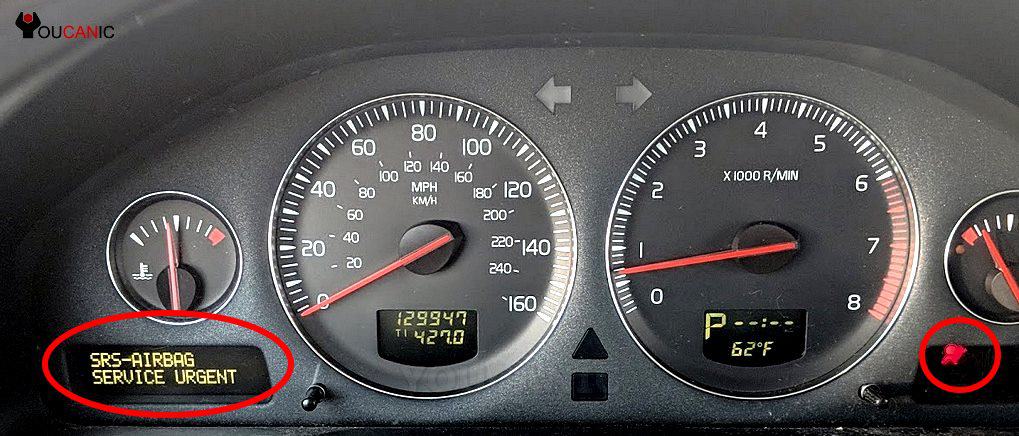

What Does “SRS Airbag Service Urgent” Mean on a Volvo?
This warning indicates your Volvo’s airbag system has stored a diagnostic trouble code and one or more airbag components may not function in a collision. The SRS module continuously monitors crash sensors, airbag igniters, seatbelt pretensioners, and wiring circuits. When it detects an open circuit, high resistance, or internal failure, it triggers this message and disables the affected airbag.
Driving with this warning active means you are unprotected in that zone. The light does not mean the airbags will accidentally deploy—it means they might not deploy when needed.
Some Volvo models will also display the code on the instrument cluster, such as DEM-0005 or DEM-0006, which points directly to the failed component.
What Are the Most Common Causes of SRS Airbag Service Urgent on a Volvo?
After years of diagnosing these warnings across P2 and P3 platform Volvos, the failures cluster around a handful of known weak points. The clock spring, seat mat sensor, and SRS module account for the vast majority of cases. Below is every documented cause ranked by frequency in real-world shop repairs.
1. Clock Spring (Spiral Cable) Failure
The clock spring sits behind the steering wheel and maintains an electrical connection between the steering column and the driver airbag as the wheel turns. On Volvo S60, S80, V70, XC70, and XC90 models, the ribbon cable inside the clock spring fatigues and fractures over time. This creates an open circuit to the driver airbag and triggers the urgent warning.
Symptoms that confirm a clock spring failure include the horn intermittently not working, steering wheel audio controls failing, and the airbag light coming on after turning the wheel to a specific position.
If you rotate the steering lock-to-lock and the warning appears or disappears at a certain point, the clock spring is almost certainly the culprit.
2. Passenger Seat Occupancy Sensor Mat Failure
Volvo uses a pressure-sensitive mat in the passenger seat to detect whether an occupant is present and their approximate weight. When this mat fails, the SRS module cannot determine whether to deploy the passenger airbag. This is extremely common on 2001–2014 Volvos, particularly the XC90 and S80.
The dealer will quote a full seat bottom replacement, often $800 to $1,500. An independent shop or DIY repair using an aftermarket seat mat emulator or sensor bypass module costs a fraction of that.
However, be aware that bypassing the sensor permanently may have legal and insurance implications in your jurisdiction.
3. Wiring Harness Damage Under the Front Seats
The SRS wiring connectors under both front seats are exposed to moisture, debris, and physical stress from seat movement. Corrosion on the connector pins or a partially unplugged harness is a frequent trigger. This is especially common in regions with heavy road salt use and on vehicles where owners store items under the seats.
A visual inspection of the yellow SRS connectors under each seat can reveal green corrosion or backed-out pins. Cleaning the contacts with electrical contact cleaner and reseating the connector often resolves the code immediately.
4. SRS Control Module Internal Failure
The SRS module itself can develop internal faults, particularly on higher-mileage Volvos. Water intrusion into the module housing—common on the XC90 where the module sits low in the cabin—causes circuit board corrosion. The module may also store hard codes that cannot be cleared, even after the underlying component is repaired.
5. Seatbelt Pretensioner Fault
Each front seatbelt has a pyrotechnic pretensioner that tightens the belt during a crash. If the pretensioner igniter circuit develops high resistance or an open circuit, the SRS system flags the fault. This is less common but does occur on vehicles over 10 years old or those involved in minor collisions that triggered a pretensioner without deploying an airbag.
6. Impact Sensor Failure or Corrosion
Crash sensors mounted on the front structure, B-pillars, and door panels can corrode or fail electrically. After a front-end collision—even a minor fender bender—one or more impact sensors may need replacement or recalibration before the SRS warning clears.
How Do I Diagnose the Exact SRS Fault on My Volvo?
You cannot diagnose this warning by visual inspection alone. You need a diagnostic scanner capable of reading Volvo-specific SRS fault codes. Generic OBD-II scanners that only read engine codes will not access the SRS module.
- Purchase or borrow a Volvo-compatible scan tool. Options include iCarsoft VA-II, Autel MaxiCOM, VIDA/DiCE (Volvo’s factory tool), or a Foxwell NT530 with Volvo software loaded.
- Connect to the OBD-II port located under the dashboard on the driver’s side.
- Navigate to the SRS/Airbag module and read all stored and pending fault codes.
- Record the exact code and description before clearing the codes to see if they return immediately or only under certain conditions.
- Cross-reference the code with Volvo’s fault code database to identify the specific component—driver airbag, passenger airbag, pretensioner, side impact sensor, etc.
If the code clears and stays off after a test drive, the fault was likely a low-voltage or intermittent connector issue. If it returns immediately, the component has failed and needs replacement.
How Much Does It Cost to Fix the SRS Airbag Service Urgent Warning?
Repair costs vary dramatically depending on the failed component and whether you use a dealership or independent shop. Dealerships almost always quote the highest price because they replace entire assemblies rather than individual sub-components.
| Repair | Dealer Cost | Independent Shop Cost | DIY Cost |
|---|---|---|---|
| Clock Spring Replacement | $400–$700 | $250–$450 | $80–$200 (part only) |
| Seat Occupancy Sensor Mat | $800–$1,500 | $300–$600 | $50–$150 (emulator module) |
| SRS Module Replacement | $1,000–$2,000 | $400–$900 | $150–$500 (remanned unit) |
| Seatbelt Pretensioner | $500–$900 | $250–$500 | $100–$300 (part only) |
| Wiring Harness Repair | $200–$400 | $100–$250 | $0–$30 (solder and connectors) |
Always get a fault code readout before authorizing any repair. Dealerships have been documented quoting full airbag module replacements when the actual fault was a $10 connector under the seat.
Can I Drive My Volvo with the SRS Airbag Service Urgent Warning?
Technically, the vehicle will operate normally—this warning does not affect drivability, braking, or steering. However, driving without a functional airbag system means you have zero supplemental crash protection from the affected airbag zones. If the warning covers the driver or passenger frontal airbag, you are essentially driving without front airbag protection.
If the warning only references a side curtain or rear airbag, the frontal bags may still be functional, but you should not assume this without a code readout. Prioritize getting the fault diagnosed within the same week.
Model-Specific SRS Fault Patterns You Should Know
Volvo XC90 (2003–2014)
The XC90 is notorious for both the clock spring and passenger seat mat failures. The SRS module on these models also sits in a location prone to moisture exposure, making internal module corrosion a third common failure point. Check all three components if you own this model.
Volvo S80 (1999–2006)
The first-generation S80 suffers heavily from clock spring failure and seatbelt pretensioner faults. The wiring under the seats on this model is also routed in a way that makes it vulnerable to pinching when the seat is adjusted to its rearmost position.
Volvo V70 and XC70 (2001–2007)
These wagons share the P2 platform with the S80 and carry the same clock spring weakness. Additionally, the passenger seat mat on wagon models tends to fail earlier due to heavier cargo loading on the seat when folded.
Volvo S60 (2011–2018)
First-generation P3 S60 models most commonly trigger this warning from connector corrosion under the seats and occasional SRS module software faults that require a dealer-level software reload rather than hardware replacement.
Frequently Asked Questions
Will disconnecting the battery reset the SRS airbag warning on a Volvo?
No. Disconnecting the battery will not clear stored SRS fault codes.
The SRS module uses non-volatile memory that retains codes even with power removed. You need a Volvo-compatible scan tool to clear the codes after the underlying fault is repaired.
Why does my Volvo SRS light come on only in cold weather?
Cold temperatures cause materials to contract, which can open up marginal connections in the clock spring ribbon cable or under-seat connectors. The resistance in a corroded connector increases in cold weather, pushing it above the SRS module’s threshold and triggering the warning. Inspect and clean all SRS connectors if this is your symptom.
Can a weak or dying battery trigger the Volvo SRS airbag service urgent message?
Yes. When battery voltage drops below approximately 11.5 volts, the SRS module may flag communication or voltage-related fault codes. If the warning appeared after the vehicle sat for several days or during cold starts, have the battery tested and charged before pursuing SRS component replacement.
Is it safe to use an aftermarket seat mat emulator on my Volvo?
Aftermarket emulators send a constant “occupied” signal to the SRS module, which forces the passenger airbag to always be armed. This is functionally safe for adult passengers but removes the system’s ability to deactivate the airbag for child seats or small occupants seated in the passenger position. Use judgment based on who regularly rides in that seat.
Does the Volvo dealer need to program a new SRS module?
Yes. A replacement SRS module must be programmed to match your vehicle’s VIN and configuration using VIDA or equivalent dealer-level software.
Failure to program the module will result in immediate SRS faults. Some independent shops with VIDA access can perform this programming at a lower cost than the dealership.
Fix It Right the First Time
Do not let a shop throw parts at this warning without reading the exact fault code first. The most expensive mistake Volvo owners make is authorizing a full SRS module replacement when the real culprit is a corroded connector or a broken clock spring ribbon cable.
Get the code, match it to the component, verify the wiring and connector condition, and then replace only the failed part. A $20 scan and 15 minutes of inspection can save you over $1,000 in unnecessary repairs.
